TruckTool 4.7.06 [03.2025] Forklift Diagnostic Programs for Mitsubishi Cat TCM UniCarriers Rocla Jungheinrich , Nichiyu

TruckTool is a diagnostic software for Rocla, Rocla AGv, Mitsubishi, Caterpillar, Nichiyu, Uni Carriers, TCM, and Jungheinrich.

Software: Diagnostic Software

Machine: Forklift, Warehouse Equipment

Brands: Rocla, Rocla AGv, Mitsubishi, Caterpillar, Nichiyu, Uni Carriers, TCM, and Jungheinrich.

Languages: English, French, Russian, German, Spanish, Italian, Chinese, Japanese

Note: Download manual funtion not available ,Different Region with different brands Languages:   English, French, Russian, German, Spanish, Italian, Chinese, Japanese

Supported Operating systems: Windows 10 64-Bit Best, Windows 11

Region:  Europe, Asia, America,Dalian,Japan,China

Version: Latest V4.7.06

Date updated: 03.2025

Supported Interface:

ACCO 2X4 USB

Electronic diagnostic tool (EDT) can be used by dealership technicians to interface with specific machines that have a controller area network (CAN) bus as part of the electronic system architecture.

PEAK SYSTEM PCAN USB

The pcan-usb adapter allows an easy connection to can networks. It's compact plastic housing makes it suitable for mobile applications

RS232 CONNECTOR

RS-232(originally called recommended standard 232 but shortened to RS232)was developed by the electronic industry association (EIA) in the 1960s for the exchange of data between DTE (DATA TERMINAL EQUIPMENT) and DCE (DATA COMMUNICATION EQUIPMENT). lt was later adopted by the personal computer industry so pcs could connect to modems, peripherals and data adquisition devices such as lab test equipment,gps receivers and point of sale terminals.

Release summary

New model support. Firmware updates. Minor improvements.

Important highlights from this release

Please note that this version update requires for the users to re-login to TruckTool.

Other highlights

• "Reset all" function to reset service counter wizard for AGV models.

• Added detection of incorrect armrest type to Evolt48 EN1175* model.

TruckTool support released for the following models

IC:

UniCarriers: FD120-230-6, FD150-160S-6 VCM10N_JF.

TCM: FD120-230-6, FD150-160S-6 VCM10N_JF.

These are available for Japan region.

Firmware updates for the following models:

• Order picker:

• EOM100.

• EPL100.

• NOL10P.

• OPBL10P.

• Mitsubishi:
• CAT:
• UniCarriers:
• TCM:
• IC:

• FD40-55E2(F), FD50CE2(F) VCM15DN, FD40-55E2(F), FD50CE2(F) VCM15DN, FD40-55E2(F), FD50CE2(F) VCM15DN.

• FGE40-55E2(F), FGE50CE2(F) VCM15GN.

• E2F4F40-55(F), E2F4F50C(F) VCM15DN, PFD80-120N (4EGT) VCM15DN, FD40-55N4T, FD50CN4T VCM15DN.

• J2F4F40-55(F), J2F4F50C(F) VCM15GN.

• DP40-55N3, DP50CN3 VCM15DN, DP40-55N (4EGT), DP50CN (4EGT) VCM15DN.

• GP40-55N3, GP50CN3 VCM15GN.

• FD40-55N3, FD50CN3 VCM15DN, FD40-55N (4EGT), FD50CN (4EGT) VCM15DN, FD40-55N3, FD50CN3 VCM15DN, FD40-55N4T, FD50CN4T VCM15DN.

• FG40-55N3, FG50CN3 VCM15GN.

• Mitsubishi:
• CAT:
• UniCarriers:
• TCM:
• Counter balance:

• TB14-20(L)-E4 (3W), FB16-20(L)-E4 (4W).

• MXST14-20(C)-2 (3W), MXS16-20(C)-2 (4W).

• EP14-20(C)N2T (3W), EP16-20(C)N2 (4W).

• FB14-20(C)N2T (3W), FB16-20(C)N2 (4W).

• Mitsubishi:
• CAT:
• UniCarriers:
• TCM:

Various bug fixes and minor improvements:

• TTP Edit mode: saving to new file updates the user interface with the new file name.

• Fix to an issue with recording function with dynamic objects with AGV models.

• Added translations to firmware selection view.

• Added translations to Warranty view.

• New default TTP files for Europe region for models:

• Magellan VCM1N*

• Magellan VCM14N*

• Atlas VCM15 GN/DN*

• Change to "Production" object for multiple internal combustion (IC) truck models.

• "Engine Scope" software is now visible for Magellan VCM8NG for the users with the required access permission.

• Removed duplicate time parameters from E- and U-range models.

• 1RS/2RS* "performance categories" wizard update.

• Fix to an issue where parameter value was not always correctly stored with "object table" type wizards.

Reference model names

• Evolt48 EN1175: FB14-20(C)N2T (3W), EP14-20(C)N2T (3W), MXST14-20(C)-2 (3W), FTB14-20(L)-E4 (3W), FB14-20(C)N2T (3W), EP14-20(C)N2T (3W), MXST14-20(C)-2 (3W), FB14-20(C)N2T (3W), EP14-20(C)N2T (3W), MXST14-20(C)-2 (3W), FTB14-20(L)-E4 (3W).

• Magellan VCM1N: FD/FG15-35N VCM1N, DP/GP15-35N VCM1N, FG15-35E2(F), P2D1/2A15-25(F), FD/FG20N3-35N4, DP/GP15-35N, FG/FD10ND-35ANFT VCM1N, GP/DP15ND-35NFT VCM1N, FD/FG20-35NT VCM1N.

• Magellan VCM14N: FD20N3-35N3, DP20N3-35N3, E2D2A20(F)-35(F), FD20E2(F)-35E2(F).

• Atlas VCM15 GN/DN: FD40-55N3, DP40-55N3, E2F4F40-55(F), FD40-55E2(F), FD40-55N (4EGT), DP40-55N (4EGT), PFD80-120N (4EGT) VCM15DN, FG40-55N3, GP40-55N3, J2F4F40-55(F), FGE40-55E2(F).

• Magellan VCM8NG: FD20N-35N VCM8N_G, DP20N-35N VCM8N_G, PFD40M-70M VCM8N_G, FDE20N-35N VCM8N_G, DPE20N-35N VCM8N_G, FD20-35N4T VCM8N_G, FD20NB-35NB VCM8N_G, DP20NB-35NB VCM8N_G.

• 1RS/2RS: NSR12N2, SBR12N2, ASR125, NSS16N2(2I/2S), SBS16N2(21/2S), XSS160(I/S), SSO16(I/S)-N2, NSS16N2, SBS16N2.

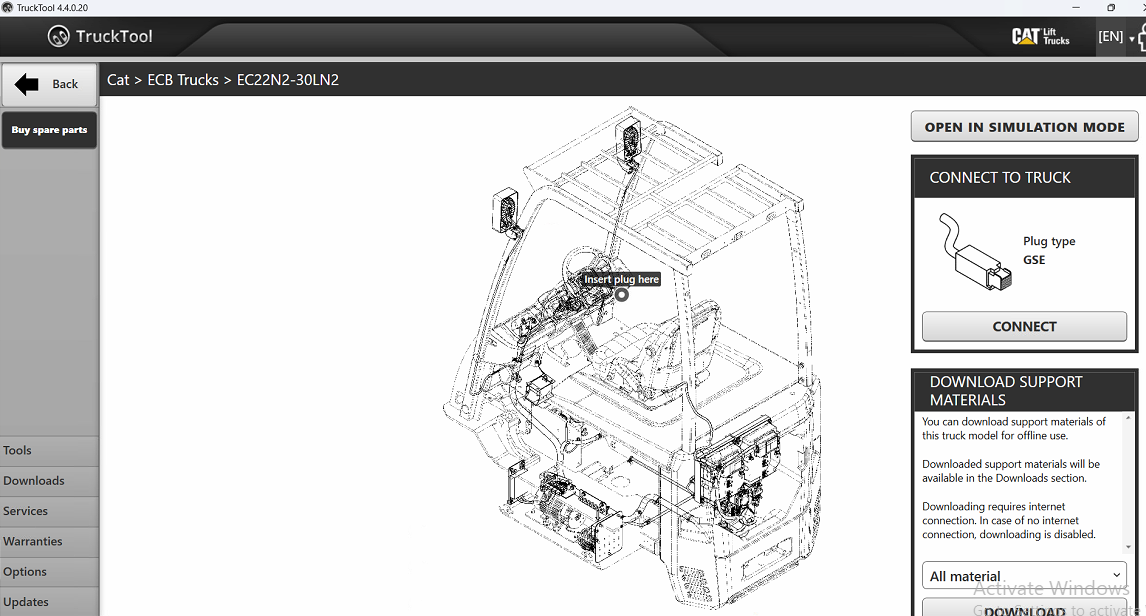

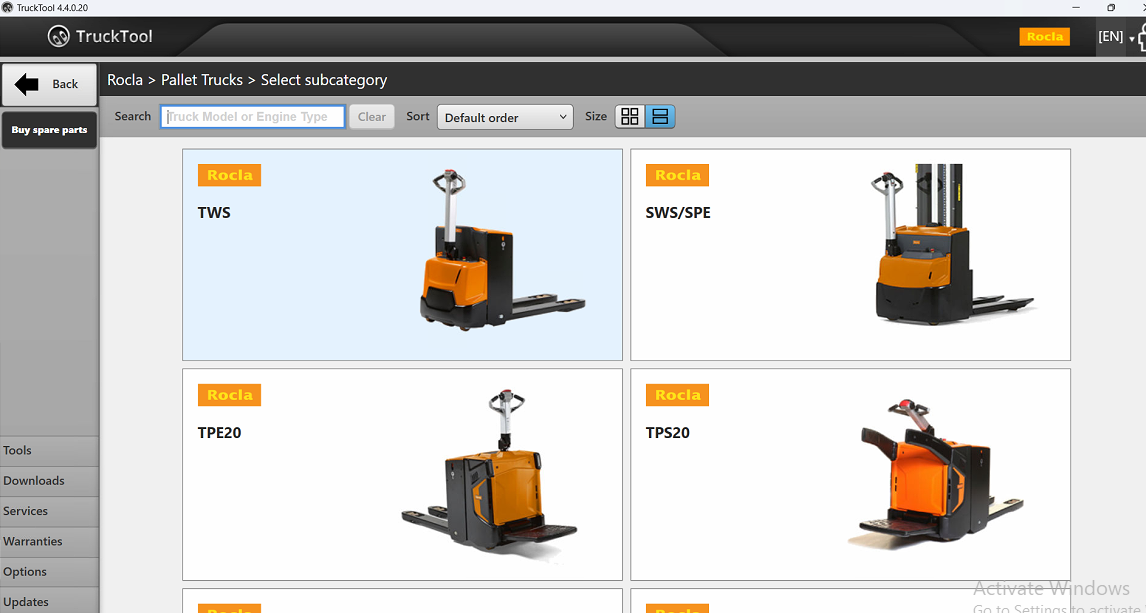

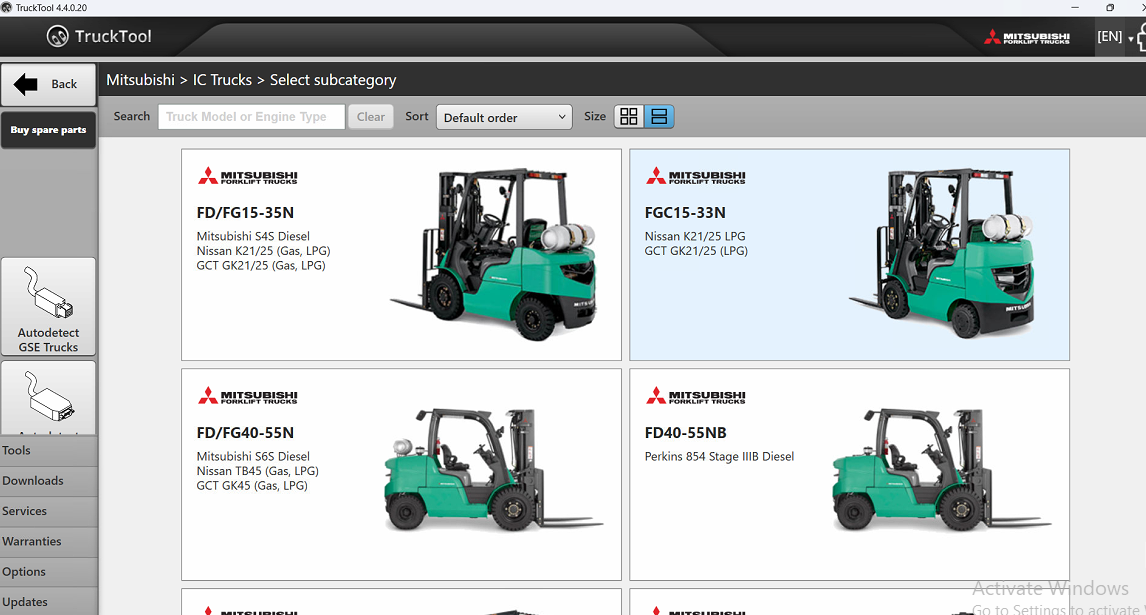

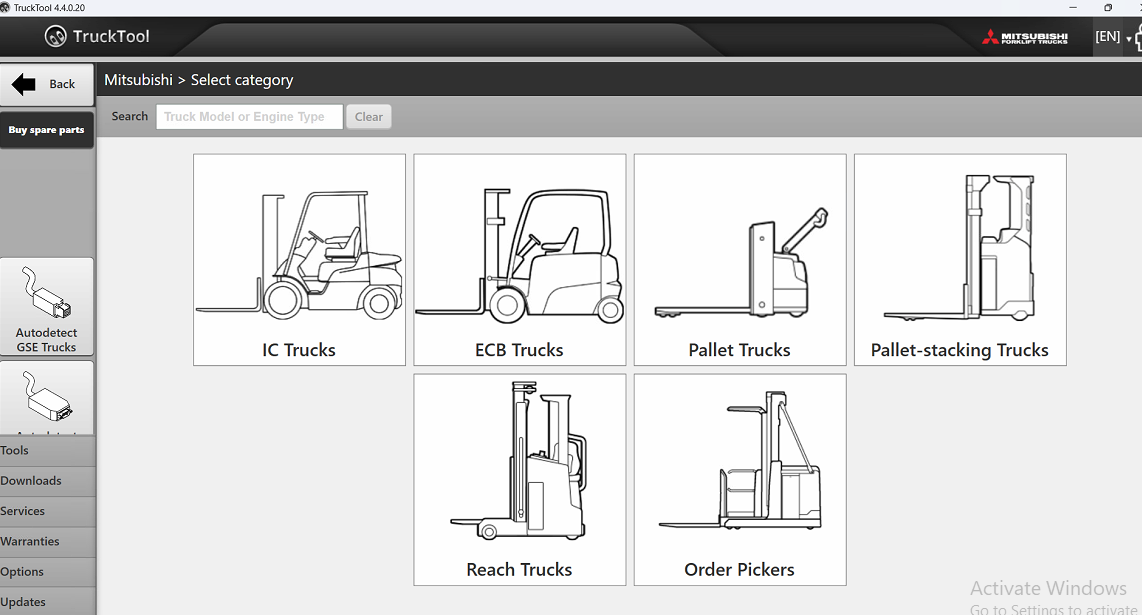

Software Display:
