IDUTEX TS710 Heavy Duty Truck Diagnostic Tool with DPF Regen Bi-directional Scan Tools 42+ Resets Diesel OBD2 Scanner

[ IDUTEX TS710 Tablet ] : Operating system: Android 5.1 / Battery: 5000mAh rechargeable polymer lithium / Memory : 2GB / Storage Capacity: 32GB  / LCD: 7 inch / LCD resolution: 1920*1200 / Touch screen: Capacitive touch screen  / Wi-Fi: Support / temperature: 0C - 50C / Storage temperature: -20C - 70C

ALL Systems Diagnostics:

IDUTEX TS710 support read/clear DTCs, read live data stream and perform active test and services functions for ALL modules of  Trucks including Engine system/SRS system/Retarder system/Transmission system/CAB Climate system/Unit Pump system/Electronical control system/Tail gas after-treatment system/Body system/ABS(anti-lock brake system)/Instrument System/Brake control system/Suspension system/Common Rail System/Natural gas system...etc.

Function:

1.Version Information

2.Read DTC

3.Clear DTC

4.Read Data Stream

5.Actuation Test

6.Special Functions.

7.Advanced ECM Data

8.Trip Information

40+ Special Functions

VIN Read/writing

Oil Reset Service

DPF Regeneration

Parameter Setting

Speed Limit Adjustment

Idle Speed Adjustment

SCR Aftertreatment test ,

ABS Test ,

EGR Test ,

Injector Shut off Test

Injector code Read/Writing ,

Fuel Pump shut off Test ,

Vehicle Speed CONTROL ,

Urea lnjection Test ,

Adblue test ,

TurboContro ,

Exhaust Pressure Adjustment ,

Cylinder shut off test ,

Cylinder compression test ,

Immobilizer

ECU Reset /Program

Fan Calibration

Nitrogen oxygen sensor

..........

DPF Functions

What is DPF ?

A DPF, is an exhaust aftertreatment device that traps particulate matter such as soot and ash. A DPF typically uses a substrate made of a ceramic material that is formed into a honeycomb structure. In order to reduce emissions from diesel vehicles, DPF capture and store exhaust soot, which must be periodically burned off to regen the filter. The regen process burns off excess soot deposited in the filter, which prevents harmful exhaust emi-ssion and the black smoke you commonly see emitted from diesel vehicles when accelerating.

This heavy duty truck scanner diagnostic tool is available for you to achieve active(auto) regen, passive regen, DPF related information reset, DPR state reset, forced DPR regen, differential pressure test, DPD forced regen, etc.

Passive Regen

When you drive for a long time (20 to 30 minutes) at high speeds, the exhaust reaches very high temperatures. Driving at 70mph or above for a while will heat the exhaust enough to burn off the soot particles which have been trapped by the DPF. But most drivers to not drive at high speeds often enough or for enough time to rely on this passive regen to clear the DPF of soot particles.

Active Regen

Since many drivers do not use their cars to drive long distances on the motorway on a regular basis, manufacturers had to come up with a different way to clear the DPF of particles. They came up with a system in which active regen is activated when the amount of soot gathered in the DPF reaches a certain level. In most cars, this level is set at 45% of the DPF’s total capacity. When the soot gathered reaches this amount, it triggers the process of post combustion fuel injection which increases the temperature of the exhaust. This way, even if the car is not travelling at high speed, the exhaust becomes hot enough to burn off all of the soot which has collected in the DPF.

How long does a DPF regen take?

The DPF regen cycle takes approximately an hour and a half (1 1/2 hours) to complete and can be completed as part of a routine service.

Bidirectional ( Actuation Test ):

for Heavy duty Trucks: Cylinder cut-out test/compression test/injector volume commands/injector programming/S.CR commands/rail high pressure test/S.CR catalyst regen/Cylinder balance test/D.PF regen/VGT calibrations/S.CR commands/Aftertreatment reset/Parameter changing/glow relay activation check/reset the D.PF filter,etc.(vary by car model,year)

Full OBD2 Function for All Cars & Trucks

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes : Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Other Advantages Of IDUTEX TS710 Heavy Truck Diagnostic Tool

--- Auto Vin:Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems.Quickly get your car’s information,save your time.

--- Live Data Stream: It can shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

---  Free Online Update & One Click Update : No subscription fee! This code reader is backed by IDUTEX’s promise for Online updates to keep the software current. Only the official scan tool can get updated.

 ---Automatic Diagnostic Report Print & Share: Health Report will scan all vehicle modules and give you a status list for each modules condition .This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished.The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.

---One to One Online Feedback- In-Time Problem Solving: LAUNCH Scanner provides you with a Feedback function to share any problems you encounter in the process of diagnosis. We will make every effort to perform a no-delay problem solving and makes improvements on product quality according to your problems and suggestions, thus offering you a higher quality user experience.

--- Remote Diagnosis:Configures LAUNCH X431 PROS V+ as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.

---View History: Once a vehicle diagnosis is performed, LAUNCH Scanner will record the every detail of the diagnostic process.you can record/review/playback live data anytime .The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch

--- Maintenance Help:Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.

Vehicle Coverage

Europe:

For MERCEDES BENZ
For MAN
For VOLVO
For SCANIA
For IVECO
For DAF
For RENAULT

U.S:

For Freightliner
For INTERNATIONAL
For Kenworth
For PETERBILT
For STERLING
For WESTERN STAR
For MACK
For DETROIT
For CUMMINS

Asia:

For HINO
For FUSO
For ISUZU
For UD
For HYUNDAI

Tablet parameter

Display screen:    7”G+G capacitance screen,1024*600
System: Android 5.1, multi language
CPU    :A33 ARM Cortex-A7,Quad Core at 1.3G Ghz
GPU    :Mali 400 MP2,400 MHz
ROM:    32 GB
RAM:    1G LPDDR3
Battery:    Polymer lithiumion battery;3.7V/5000 mA,Battery life:5H
Speaker:    Double speakers 8Ω/1W
Interface :    Type-C,TF card slot(support SDHC/SDXC)
Network:    WIFI 802.11b/g/n
Bluetooth:    Bluetooth 2.1/4.0
Input voltage:     5V/2A
Working temperature:    -10 to 70℃(14-158℉),relative humidity:<90%
Storage temperature:    -30 to 120℃(-22 to 248℉),relative humidity:<90%
Dimensions(WxHxD):    270 mm(10.63 in) x 193 mm(7.60 in) x 38 mm(1.50 in)
Weight    NW: 1.20 kg (2.65 lb) GW: 3.00 kg (6.61 lb)
Protocols:    ISO 9141-2, ISO 14230-2, ISO 15765-4, K/L-Line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlespeed CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN etc.

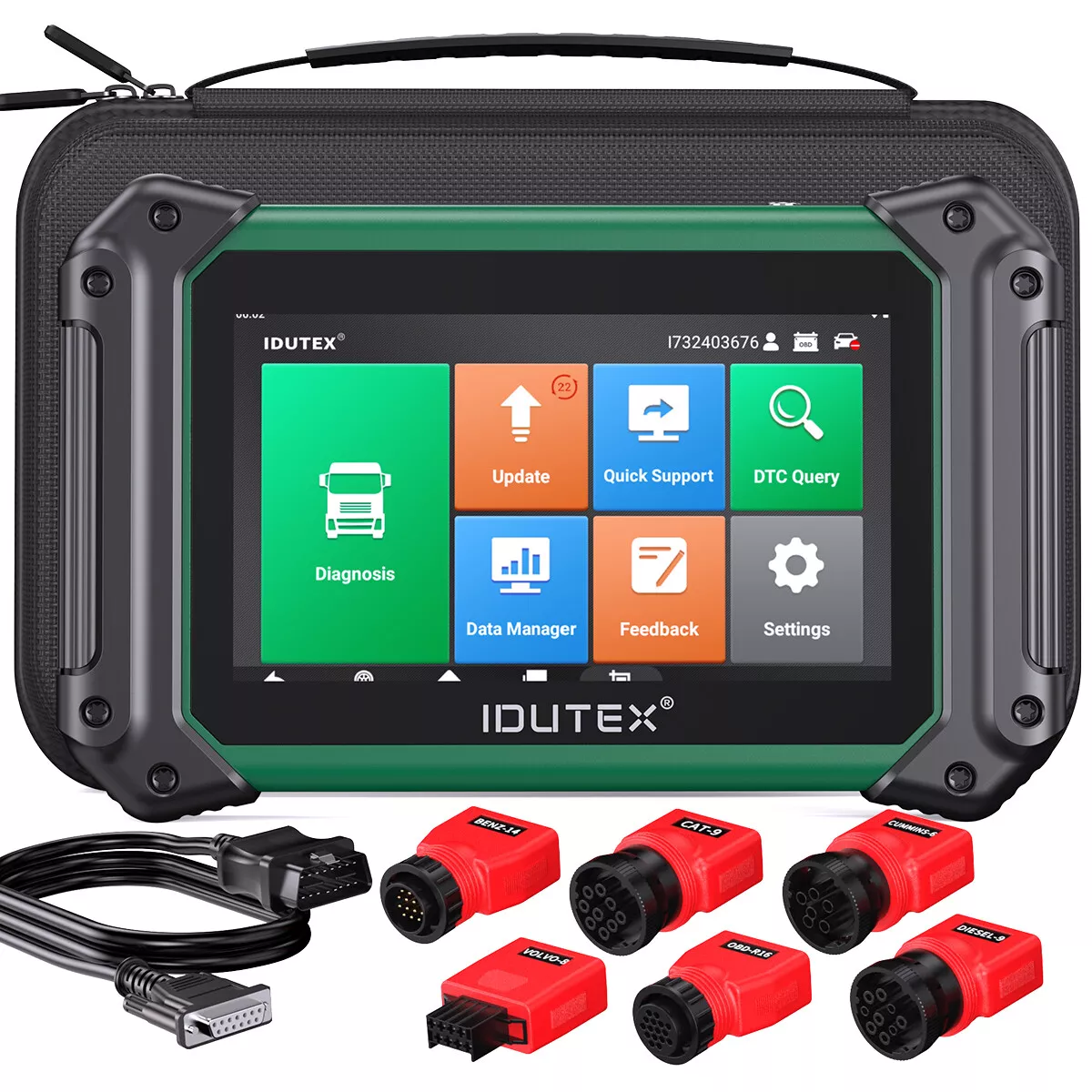

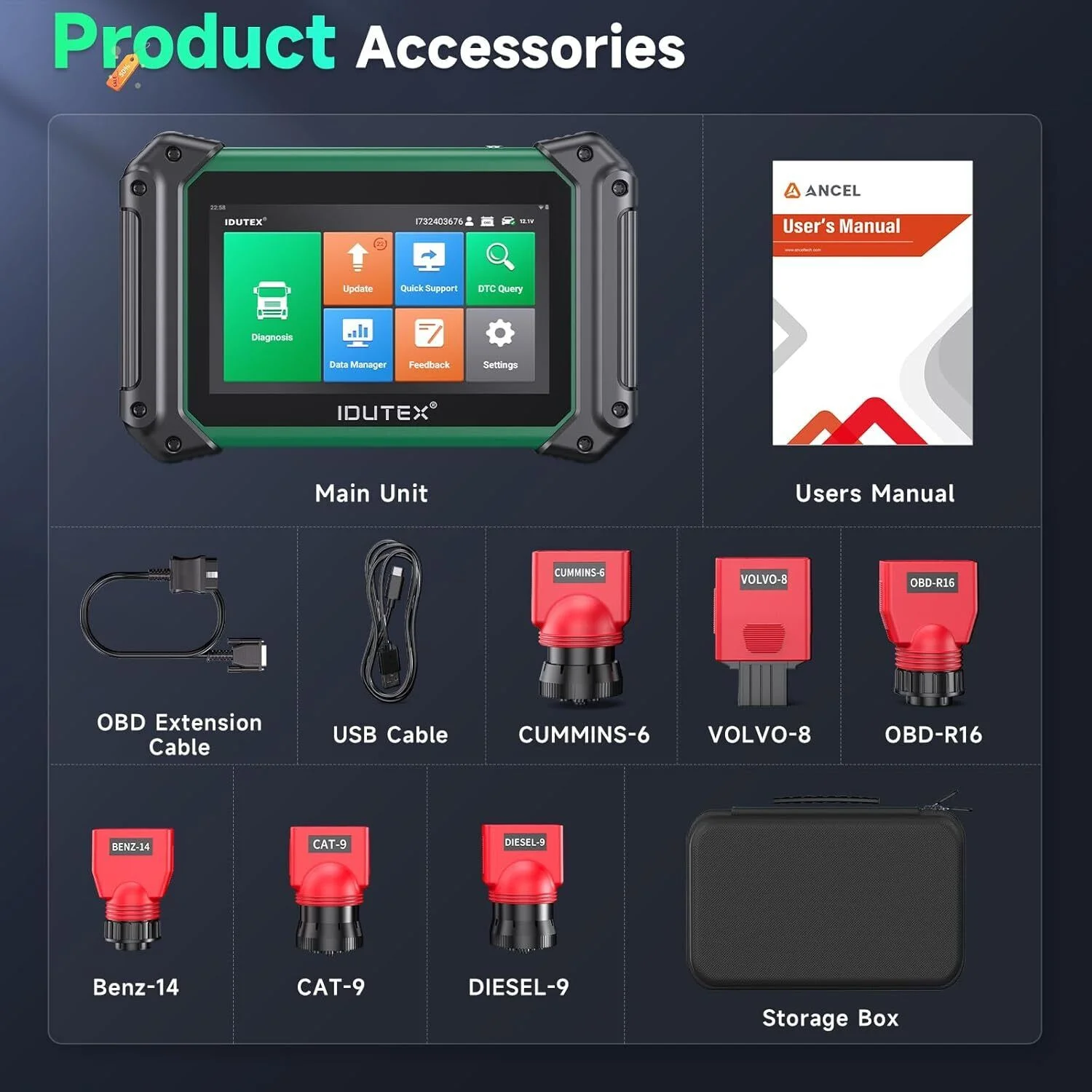

Packing List:

1pc User Manual
1pc IDUTEX TS710
1pc Storage Box
1pc OBD Extension Cable
1pc USB Cable
1pc BENZ-14
1pc CAT-9
1pc DIESEL-9
1pc CUMMINS-6
1pc VOLVO-8
1pc OBD-R16
