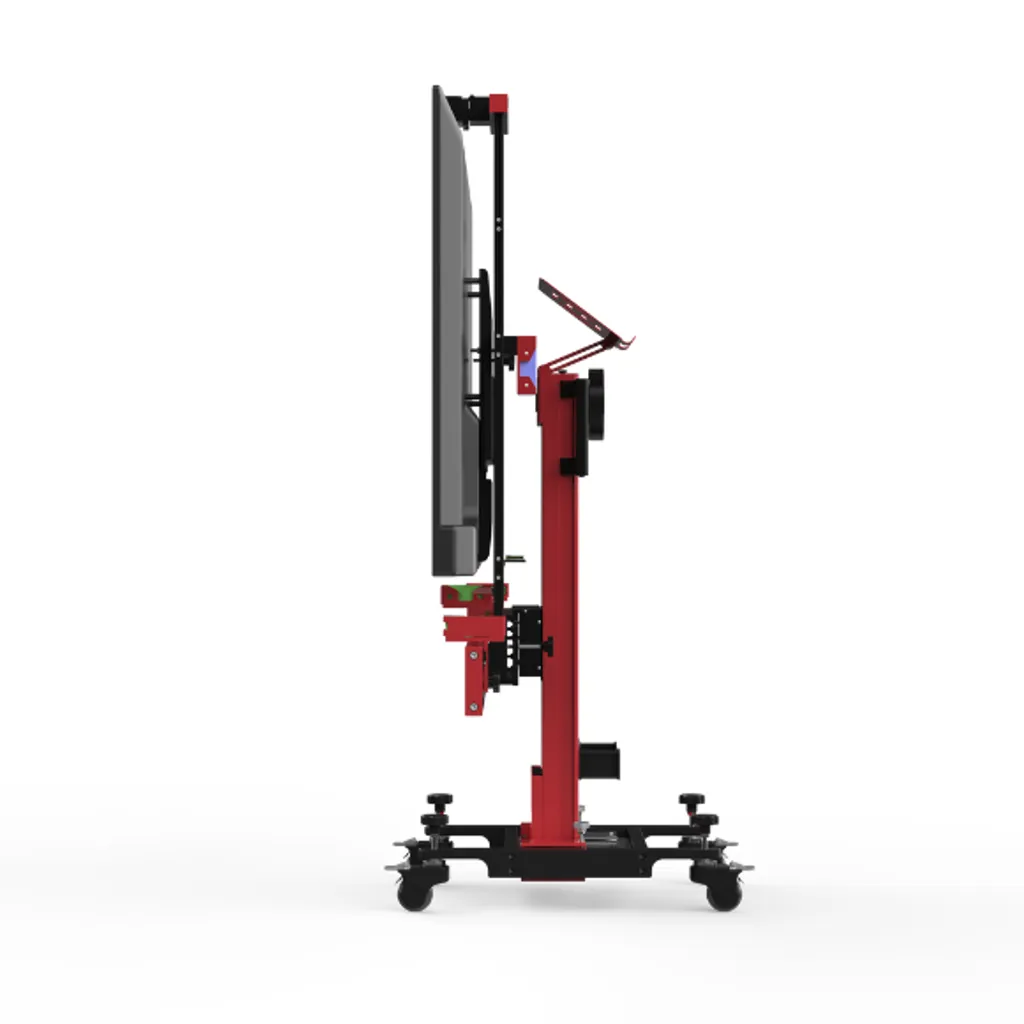

2025 LAUNCH X-431 ADAS PRO+ V2 Ultra-high Precision ADAS Calibration Tool

The X-431 ADAS PRO+ V2 is a high-precision ADAS calibration tool, specifically designed to meet the demands of modern automotive workshops and auto glass service providers.

It stands out with its robust construction, intuitive handling, and a wide range of technical features that enable fast and precise calibration of Advanced Driver Assistance Systems (ADAS).

The package includes a sturdy base frame, high-quality wheel clamps, a laser distance meter, and a customisable calibration target. The multi-directional fine adjustment – horizontal, forward/backward, and lateral – ensures millimetre-accurate alignment and adaptation to a wide variety of vehicle types.

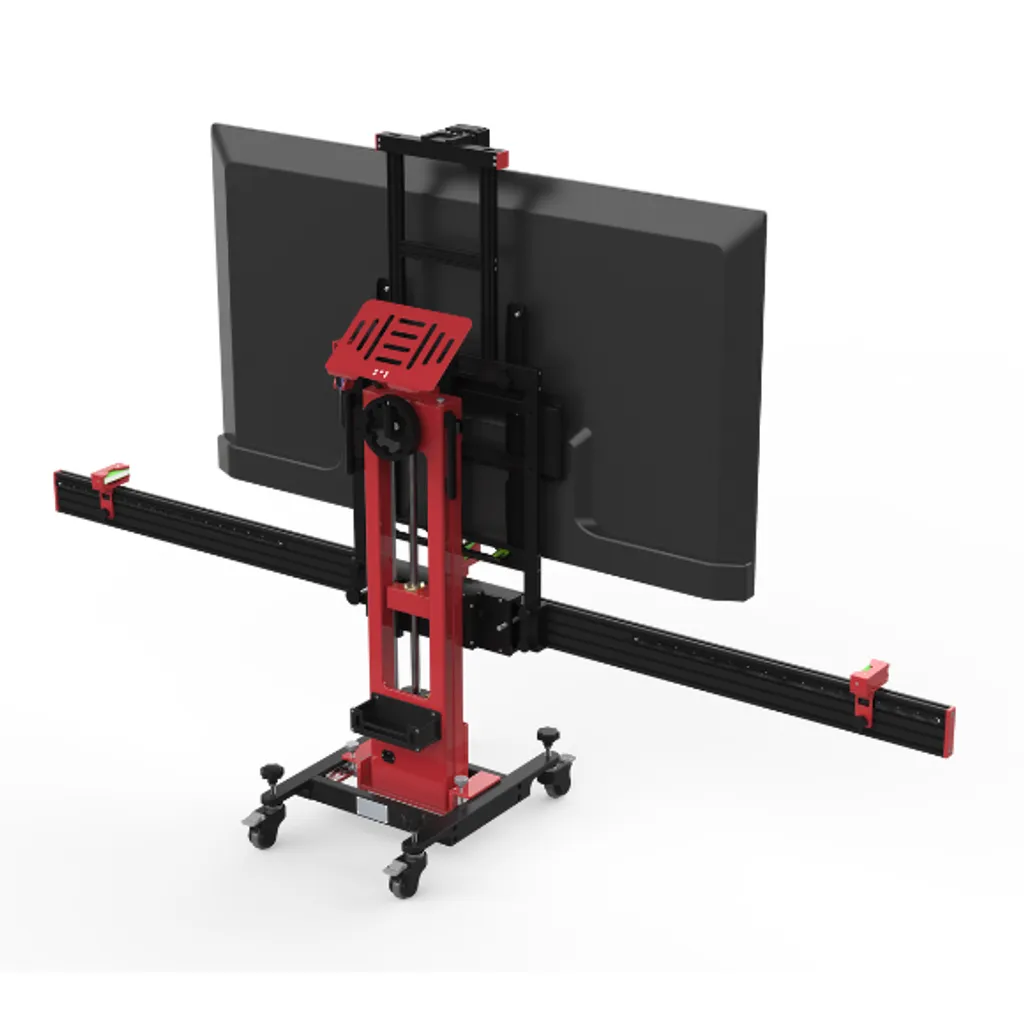

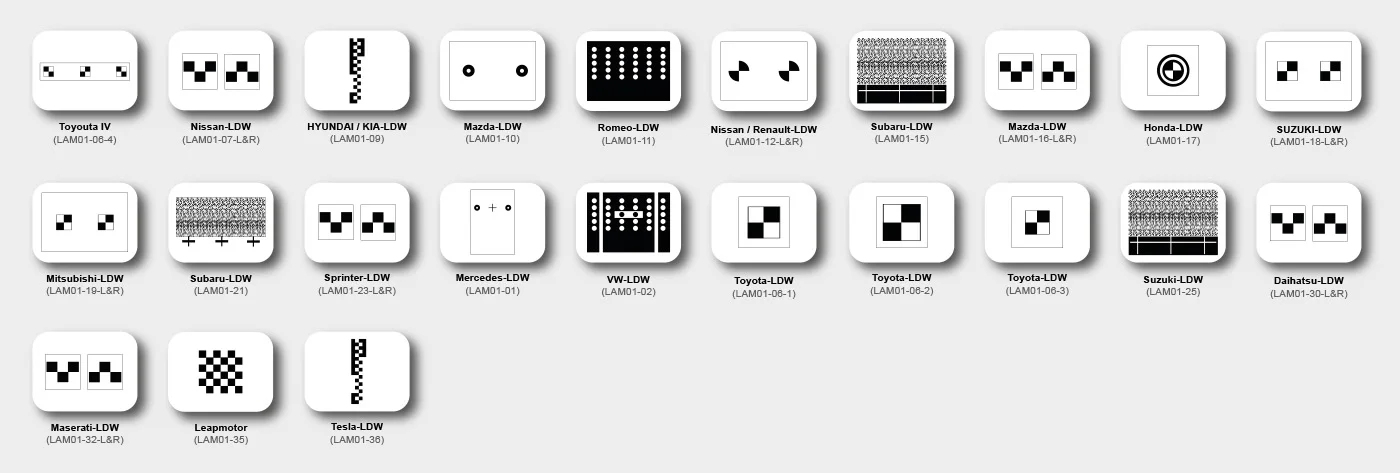

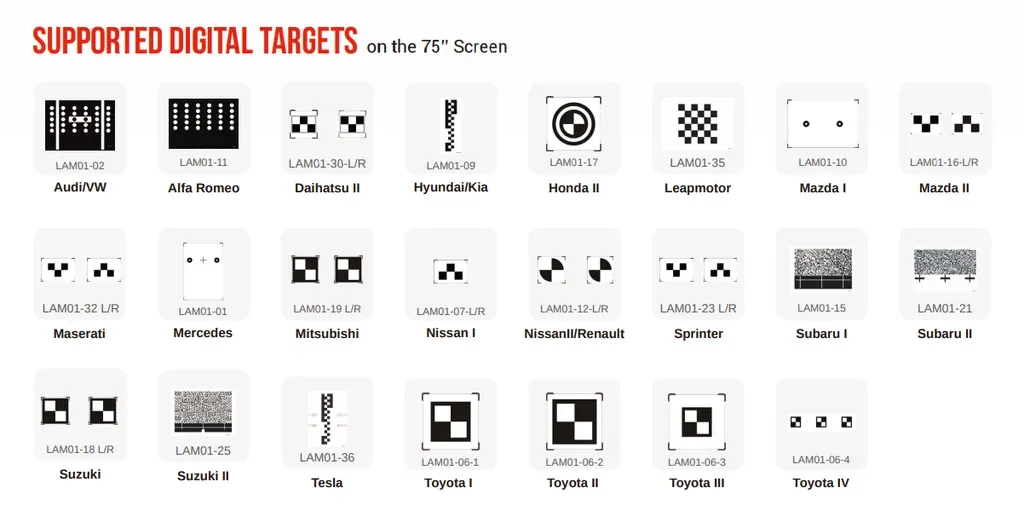

DIDITAL for Front Camera Targets Only. Featuring a 75-inch 4K LCD, the X-431 ADAS PRO PLUS digitizes most front camera targets, eliminating the need for physical setup. This boosts ADAS calibration efficiency, saves storage space, and reduces maintenance and transport costs. To be compatible with more ADAS systems, the LCD screen can be removed and replaced with physical targets, enabling it to function as a complete X-431 ADAS PRO PLUS calibration tool.

Features

*IT'S DIGITAL - FOR FRONT CAMERA TARGETS ONLY.

*DIGITAL + PHYSICAL TARGETS - WORLS AS X-431 ADAS PRO PLUS.

*Supports all the physical targets compatible with the X-431 ADAS PRO PLUS.

*Remove the digital target screen and install physical targets to transform it into a complete X-431 ADAS PRO PLUS calibration tool, covering over 95% of vehicles equipped with ADAS systems.

*Multi-directional Fine-tuning

*Beam Lifting and Lowering

*Parallelization and Centralization

*Level Adjustment

The X-431 ADAS PRO+ V2 is suitable for the calibration of numerous safety-relevant systems, including:

*Lane Departure Warning System

*Adaptive Cruise Control (ACC)

*360° Camera Systems and Rear-View Camera

*Blind Spot Detection

*Night Vision Systems

…and many other ADAS components.

This professional system is the ideal solution for workshops seeking a future-proof, flexible, and highly precise calibration technology.

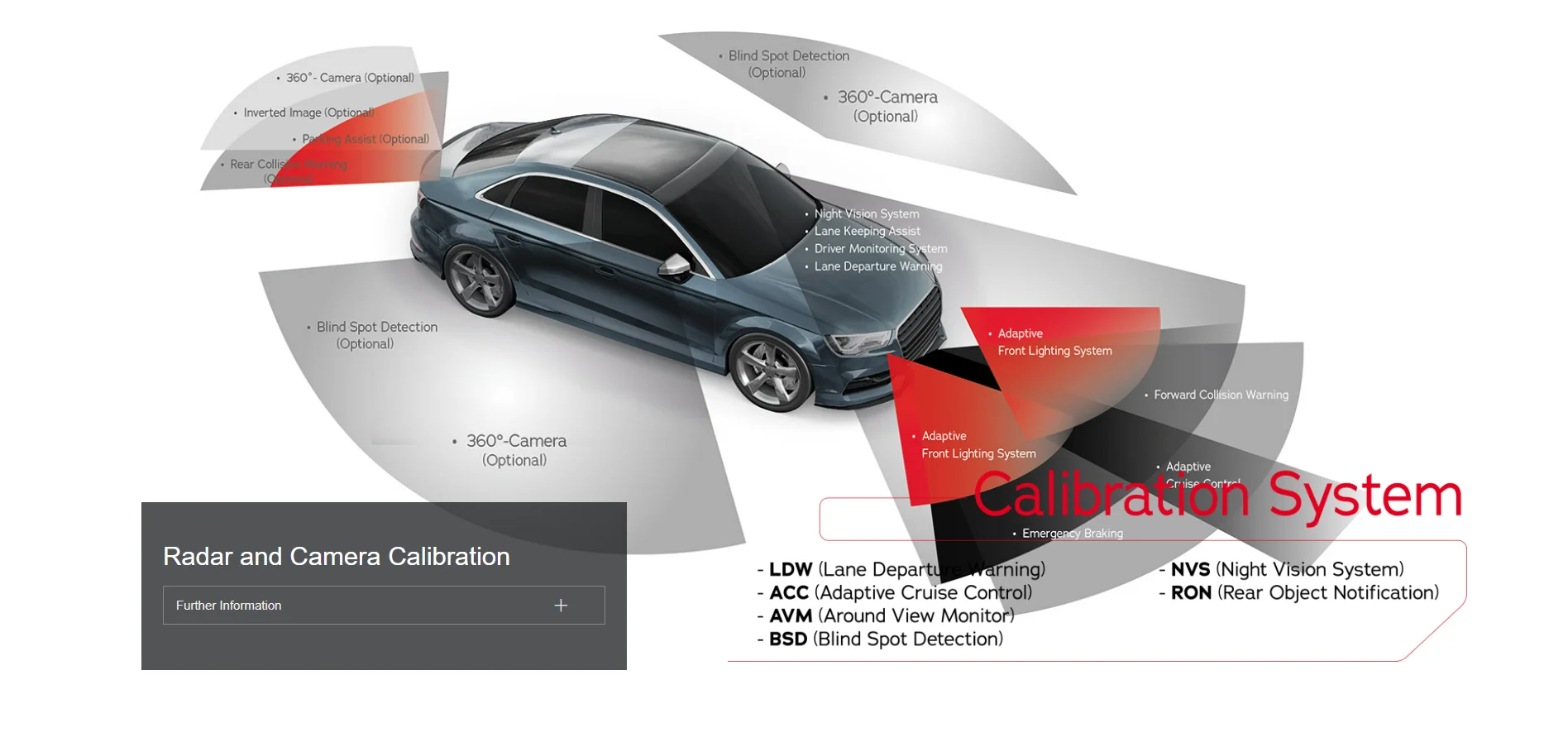

Radar and Camera Calibration

With the rapid advancements in the automotive industry and the introduction of Advanced Driver Assistance Systems (ADAS), it has become increasingly important to ensure that these systems function optimally. Thanks to the state-of-the-art calibration technology of the LAUNCH ADAS PRO+ V2 system, all ADAS components installed in the vehicle can be tested and precisely calibrated. This guarantees both your safety and the reliable performance of your radar- and camera-based ADAS systems at all times.

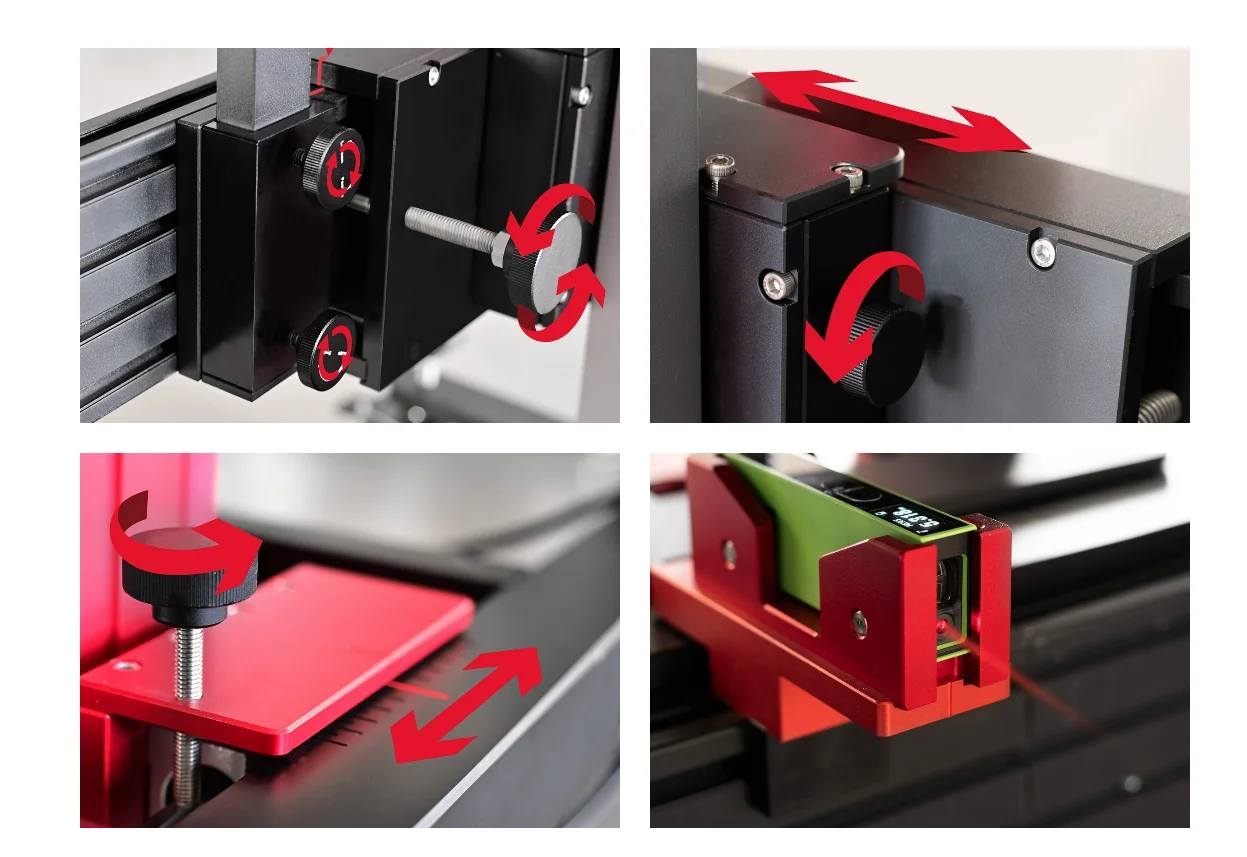

Positioning and Fine Adjustment- Accurate, Simple, and Quick

Fine Adjustment for Parallel Alignment

Once the X-431 ADAS PRO+ V2 is positioned in front of the vehicle, it can be precisely aligned using the convenient parallel fine adjustment feature. This ensures accurate calibration tailored to the vehicle’s specific orientation.

Fine Adjustment to the Left and Right

After the initial positioning of the X-431 ADAS PRO+ V2 in front of the vehicle, you can easily fine-tune the alignment to the left and right for precise calibration tailored to the vehicle’s exact position.

Longitudinal Fine Adjustment

After the initial positioning of the X-431 ADAS PRO+ V2 in front of the vehicle, you can easily fine-tune the system forward and backward to achieve precise alignment with the vehicle.

Laser Distance Measurement

After the basic positioning of the X-431 ADAS PRO+ V2 in front of the vehicle, the system can be precisely aligned using fine adjustment – ensuring fast, accurate, and reliable laser distance measurement.

Rangefinder

The rangefinder helps position the X-431 ADAS PRO+ V2 precisely in the centre in front of the vehicle. This is especially important for calibrating the front radar or a new front camera.

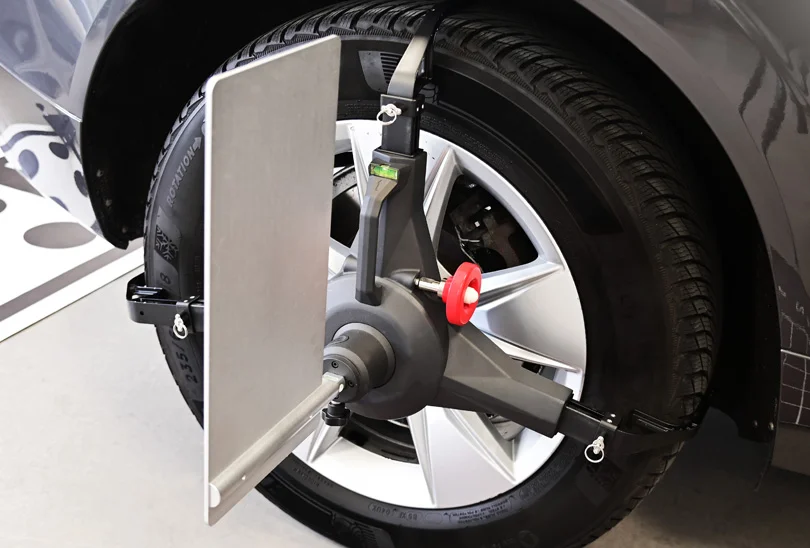

Wheel Clamps

The three-point wheel clamp with target board ensures stable and centred mounting of the calibration system directly on the front wheels.

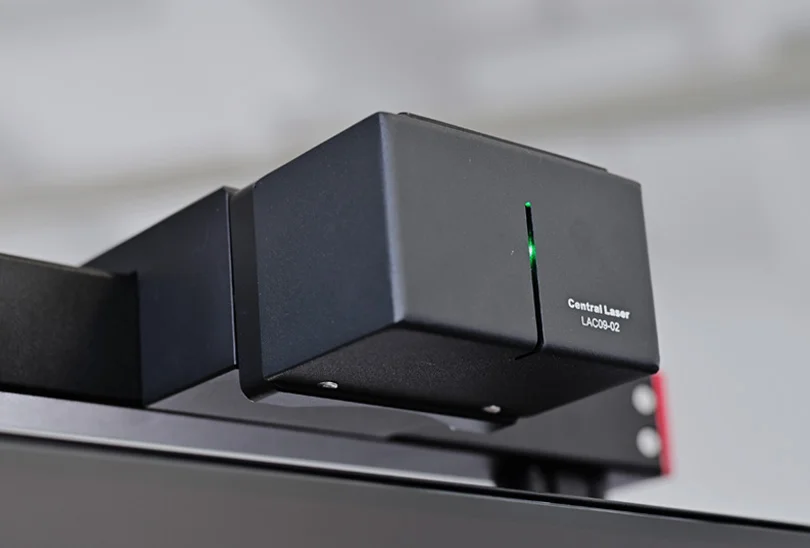

Using the cross laser, the board is aligned precisely at the centre – essential for accurate calibration of front radar and front camera systems.

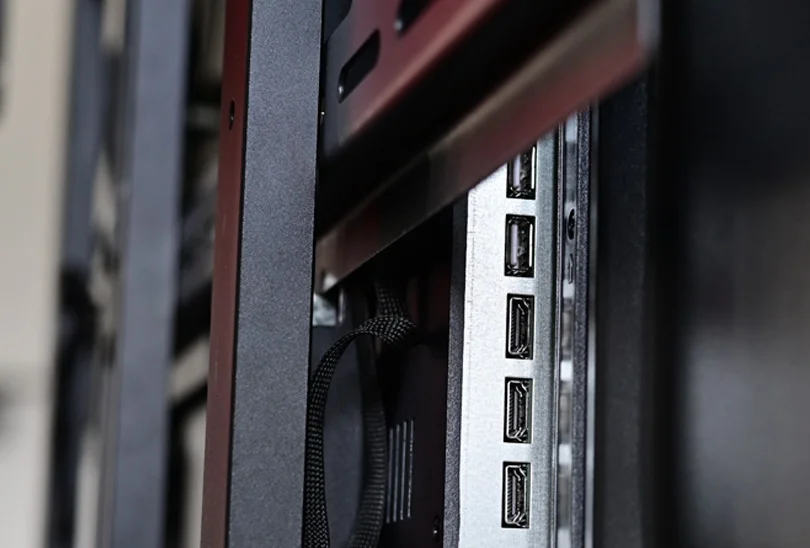

Monitor Connections

The monitor of the X-431 ADAS PRO+ V2 offers multiple HDMI and USB ports, providing maximum connectivity and flexibility in the workshop. External devices such as laptops, diagnostic tools, or storage media can be easily connected – ideal for efficient calibration and data management.

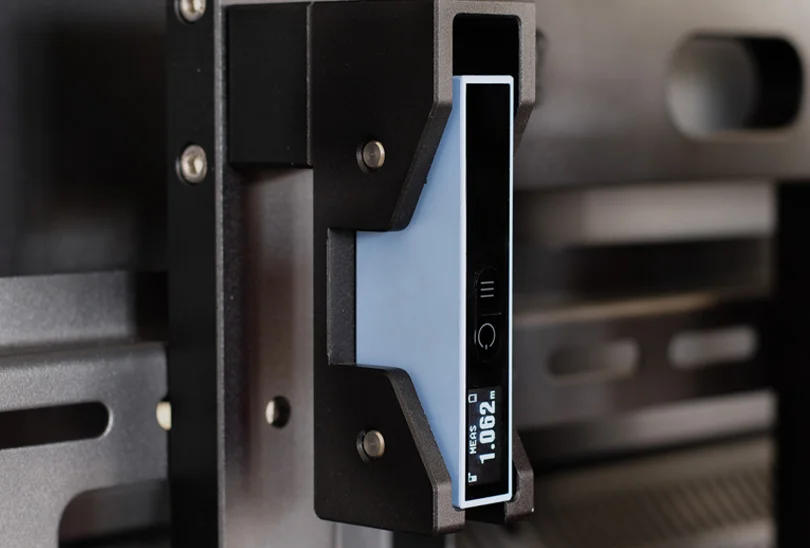

Distance Laser

Using the included laser distance meter, the ADAS PRO+ V2 is optimally positioned in front of the vehicle. This precise alignment is the essential foundation for successful and accurate calibration.

Compatible with X-431 Diagnostic Device

To perform ADAS calibration, the LAUNCH ADAS PRO+ V2 must be used in combination with a LAUNCH diagnostic device from the X-431 series. From the main menu, users can access the Toolbox with a single click, where the ADAS calibration function is available as a software feature. Thanks to the intelligent step-by-step instructions, the system guides users seamlessly through both the positioning of the ADAS equipment and the entire calibration process

Calibrate in 6 Steps- Step-by-step to precise ADAS calibration – clear, simple, and efficient.

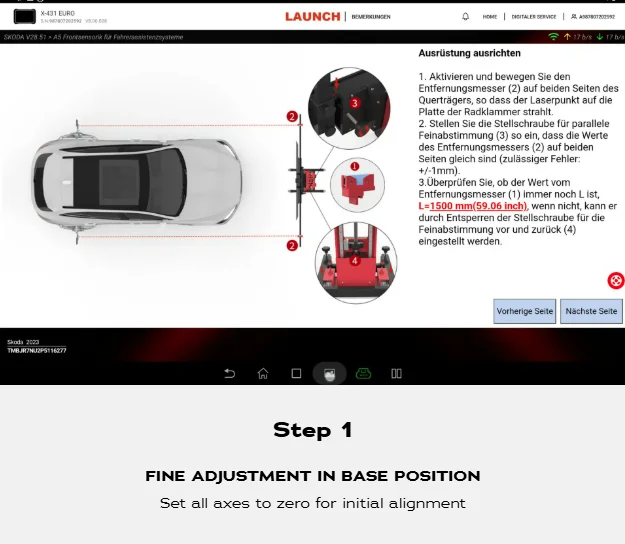

Step 1

Fine Adjustment in Base Position- Set all axes to zero for initial aligment

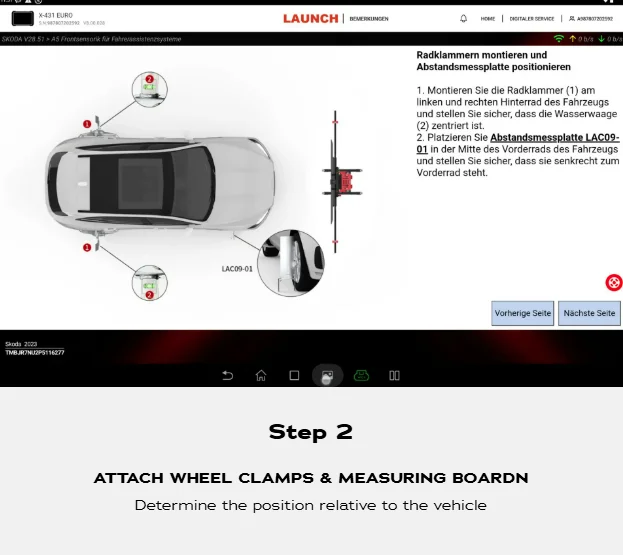

Step 2

Attach Wheel Clamps & Measuring Boardn- Determine the position relative to the vehicle

Step 3

Measure Distance With Laser- Centrally align and determine the distance

Step 4

Align & Adjust Height- Parallel and vertical fine tuning

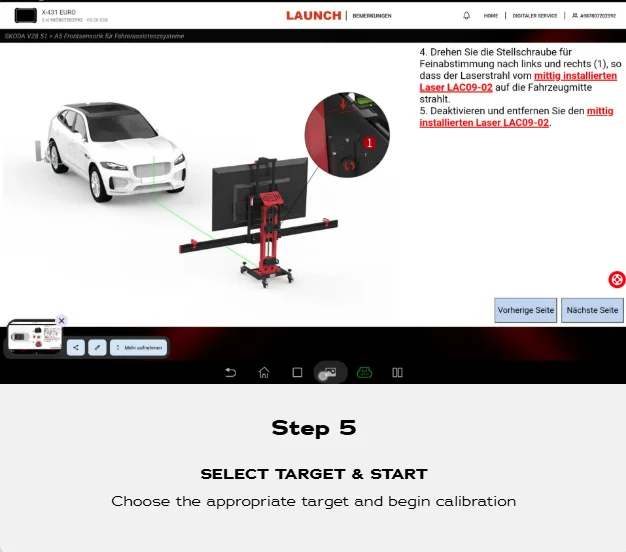

Step 5

Select Target & Start- Choose the appropriate target and begin Calibration

Step 6

Automatically Save Report- Generate and store a PDF decument for documentation purposes

LAUNCH X-431 ADAS PRO+ V2 has two versions for a First-Class solution

the X-431 ADAS PRO+ V2 introduces a state-of-the-art calibration system for Advanced Driver Assistance Systems (ADAS), setting new standards in performance, precision, and flexibility. Available in two versions:

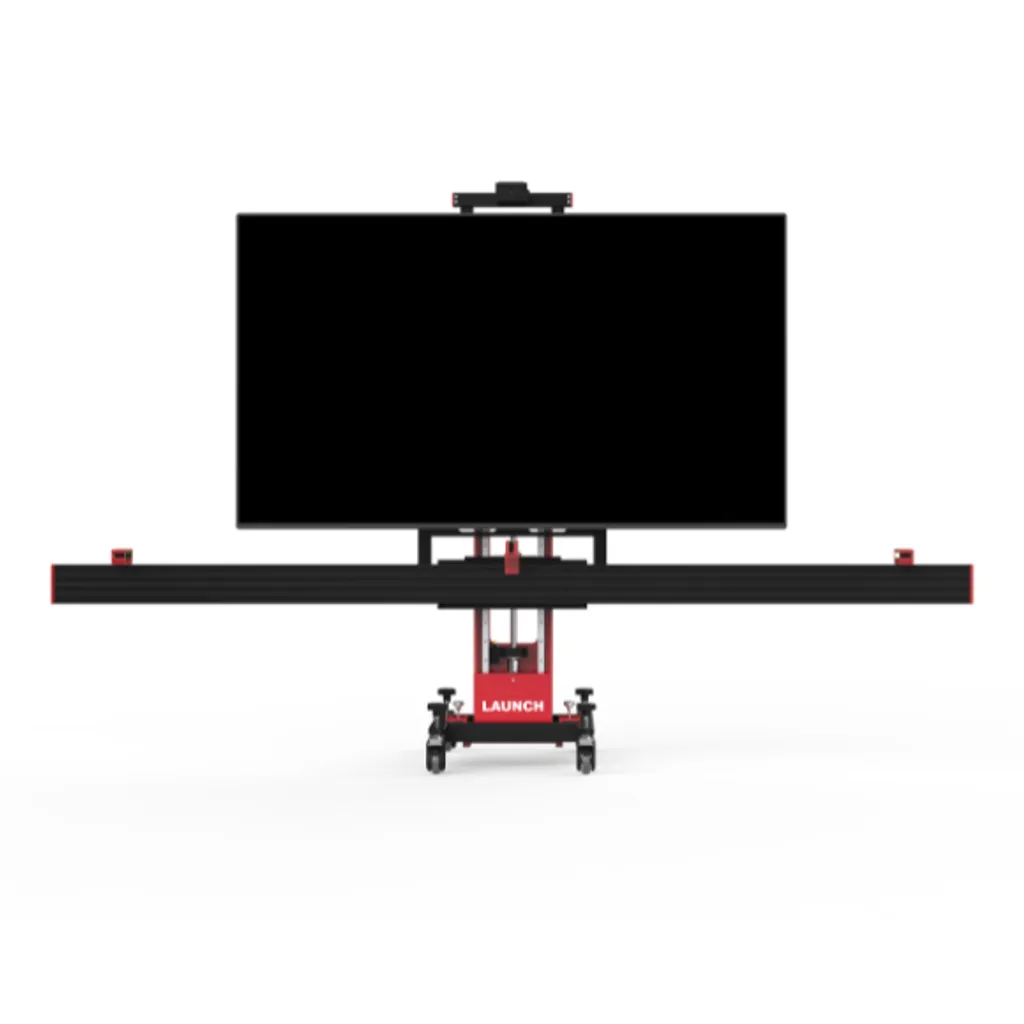

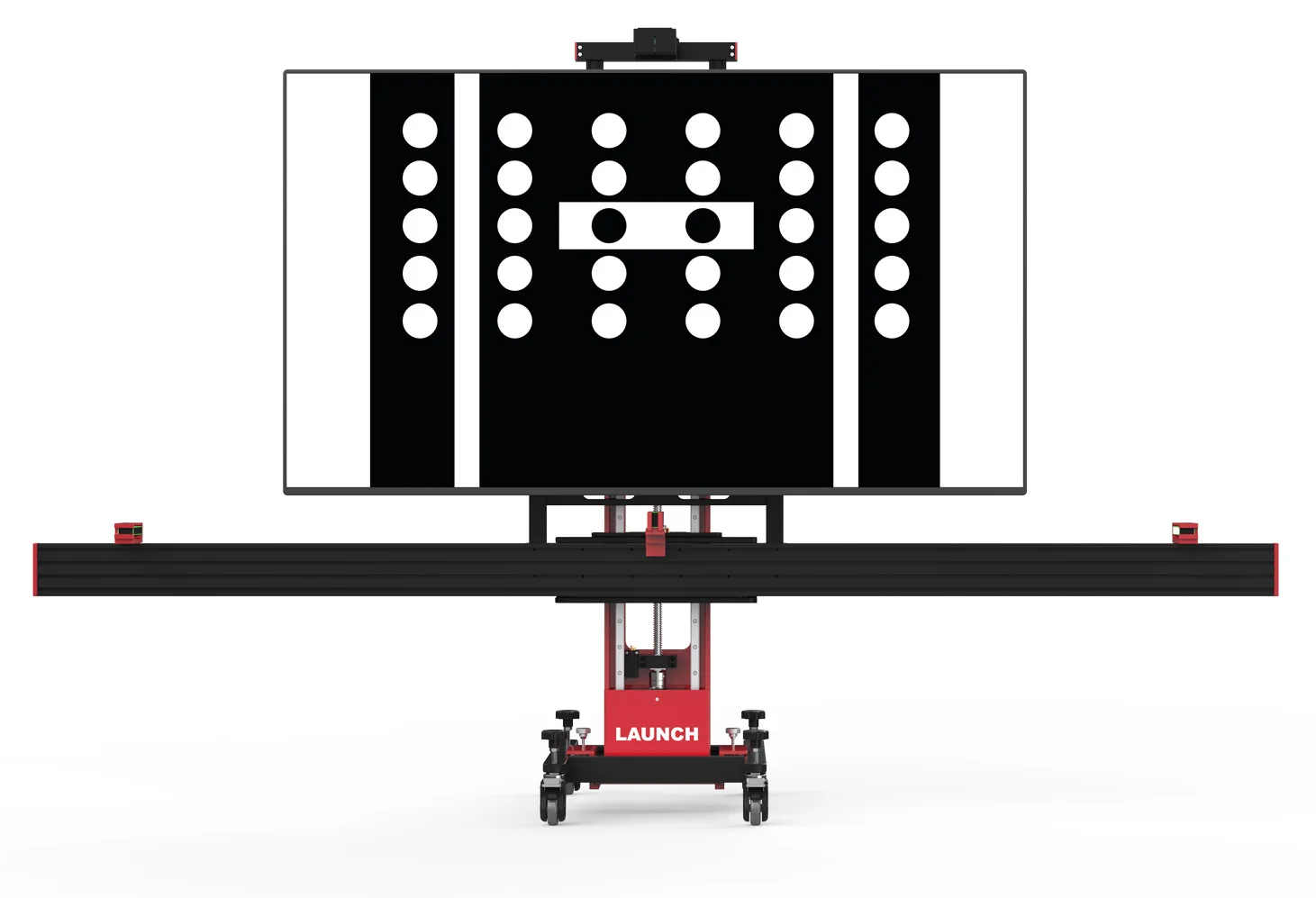

X-431 ADAS PRO+ V2 with Monitor

The flagship model with monitor stands out with its digital display of calibration panels, enabling particularly fast, precise, and user-friendly calibration — ideal for workshops that demand maximum efficiency and digitalisation.

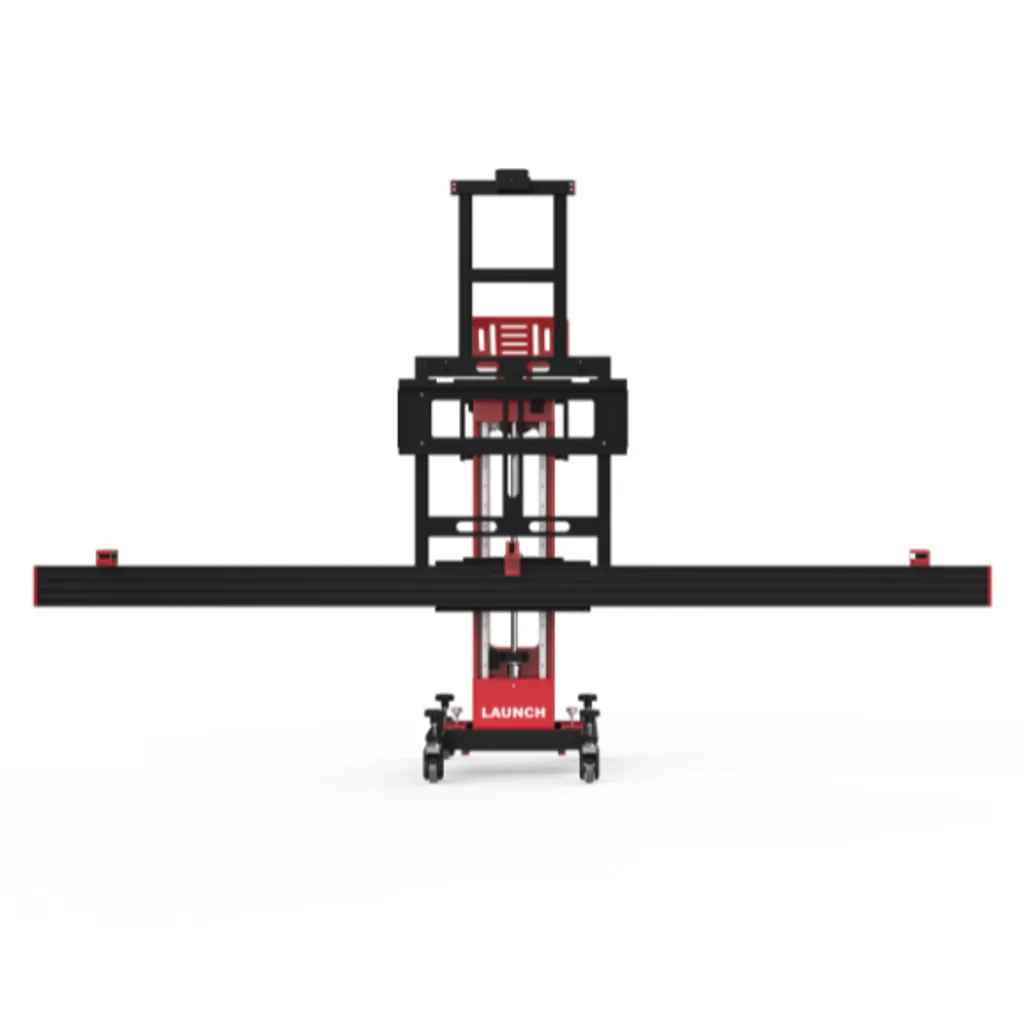

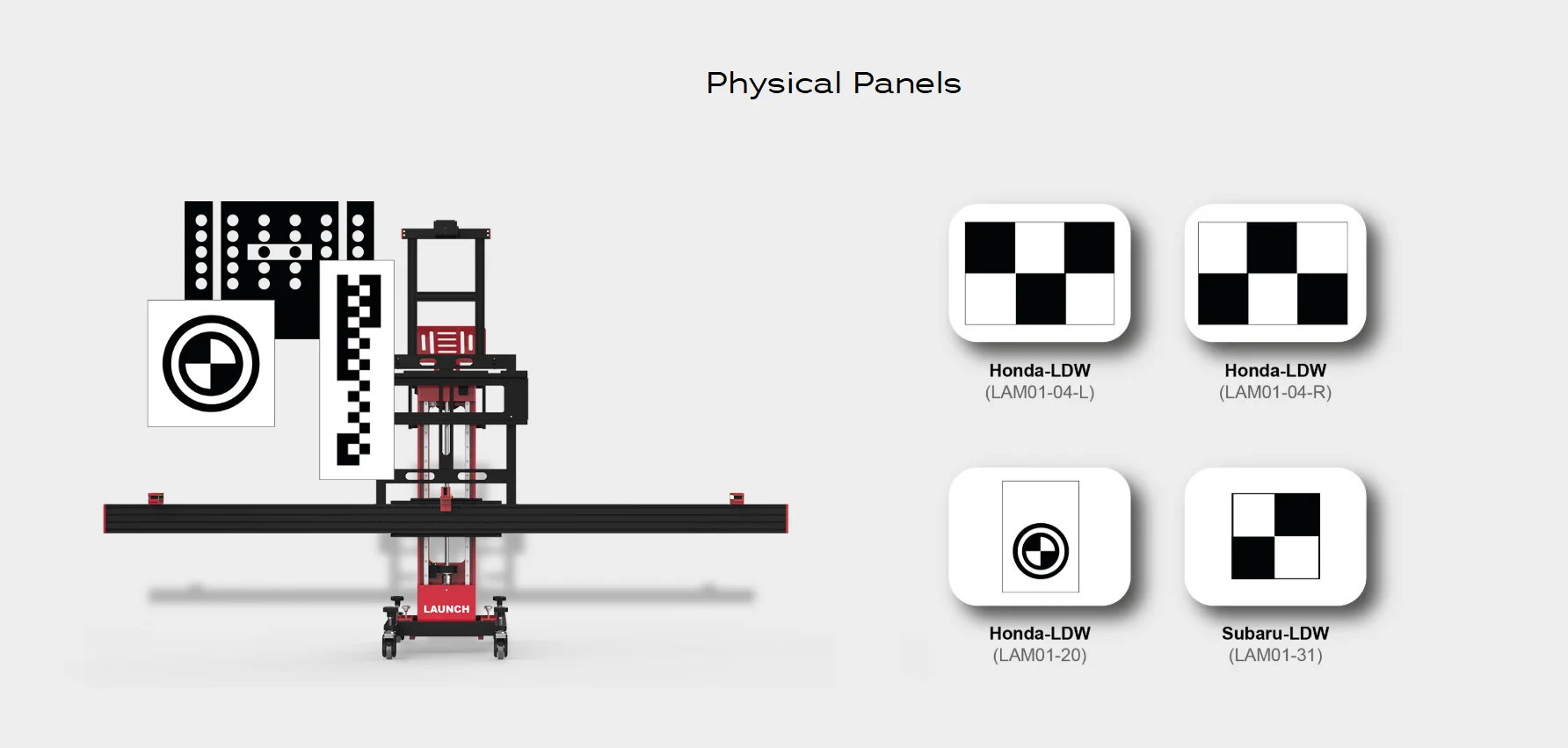

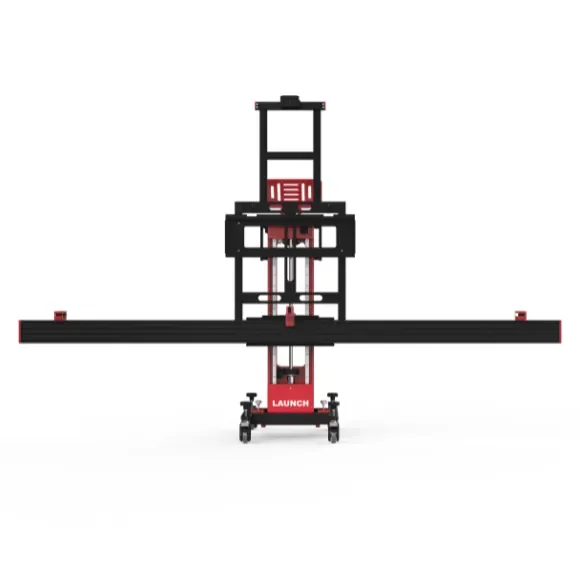

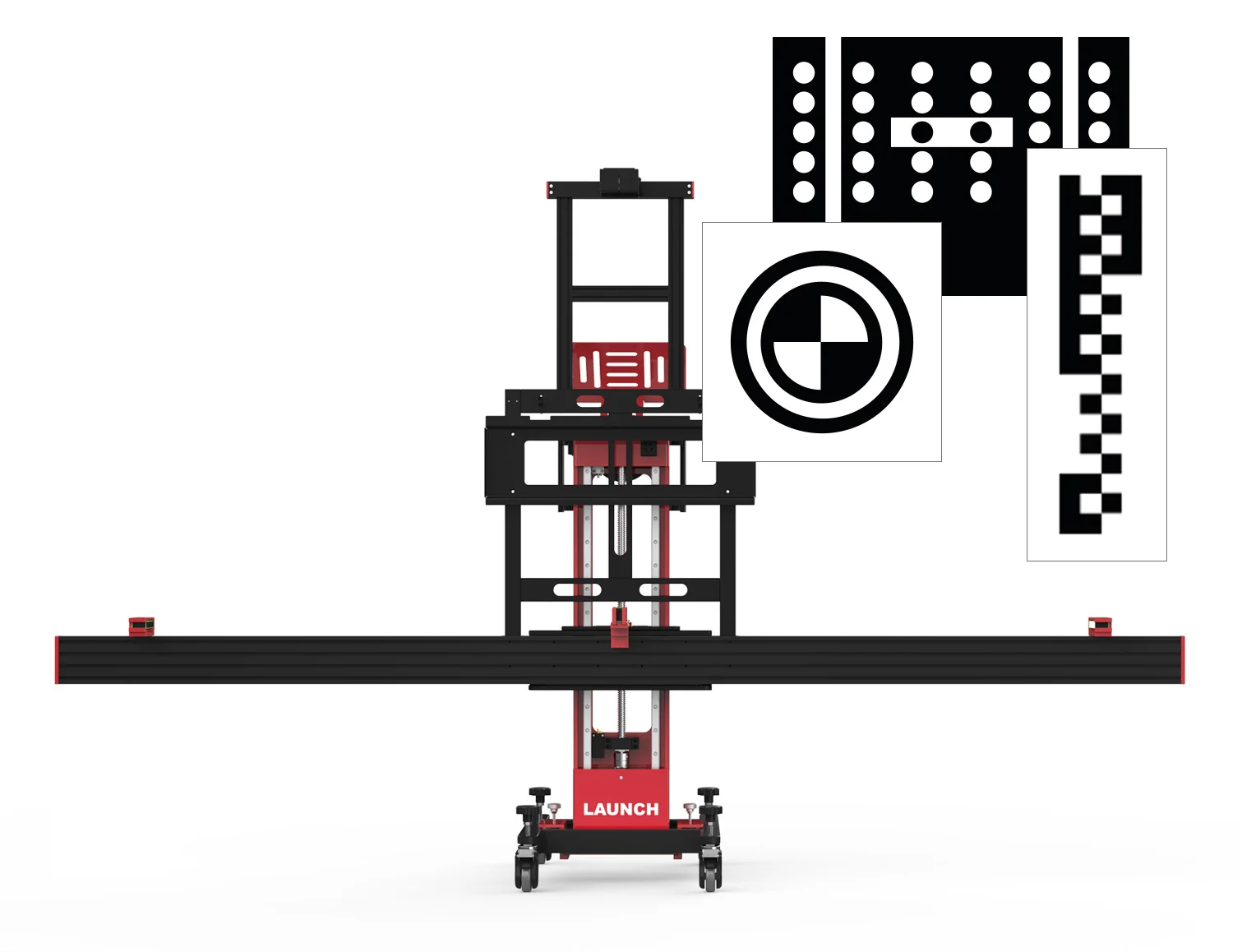

X-431 ADAS PRO+ V2 with Traditional Calibration Boards

The version with traditional calibration boards is designed for users who prefer tried-and-tested physical board systems, while still benefiting from the modern technology and intelligent control of the ADAS PRO+ V2.

Both versions offer outstanding components, high-quality craftsmanship, and cutting-edge technology — perfectly tailored to meet the demands of modern vehicles with complex ADAS features.

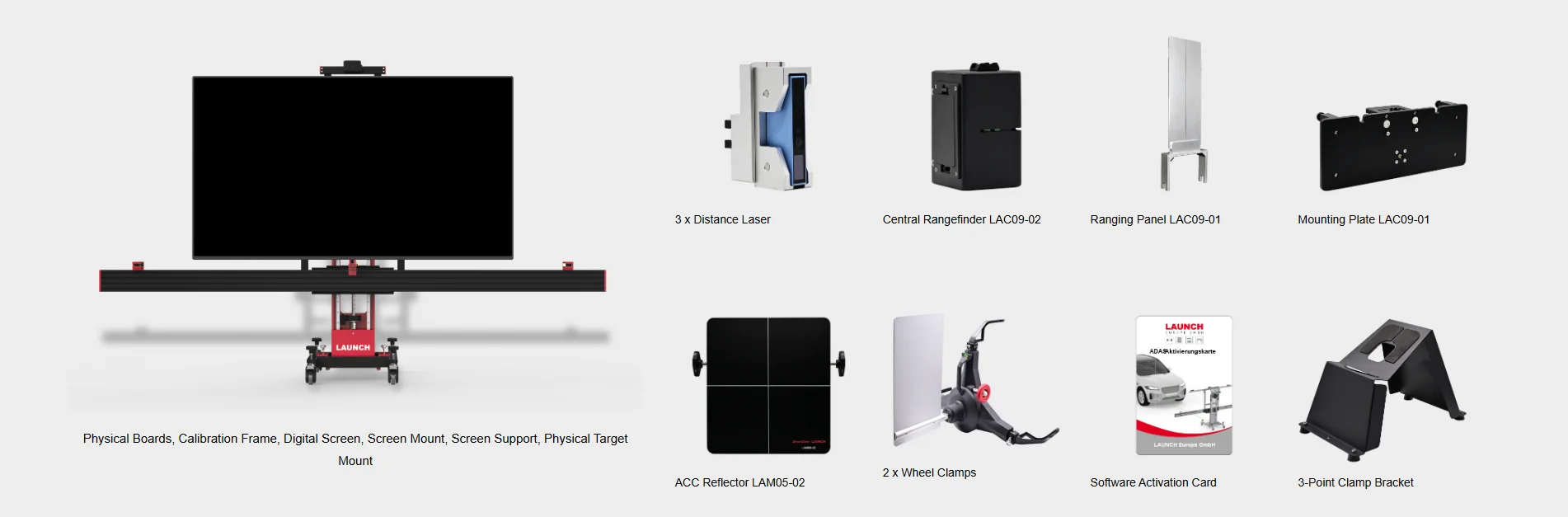

Item included:

Optional:
