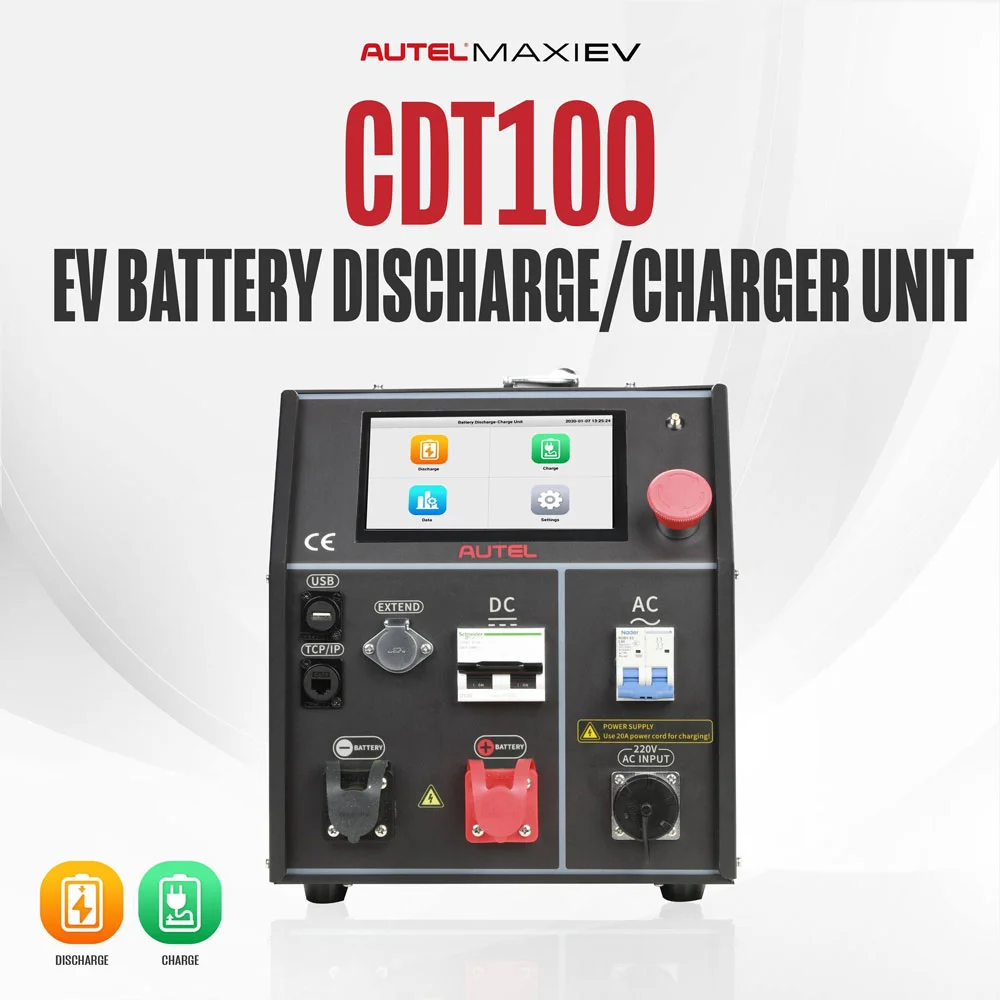

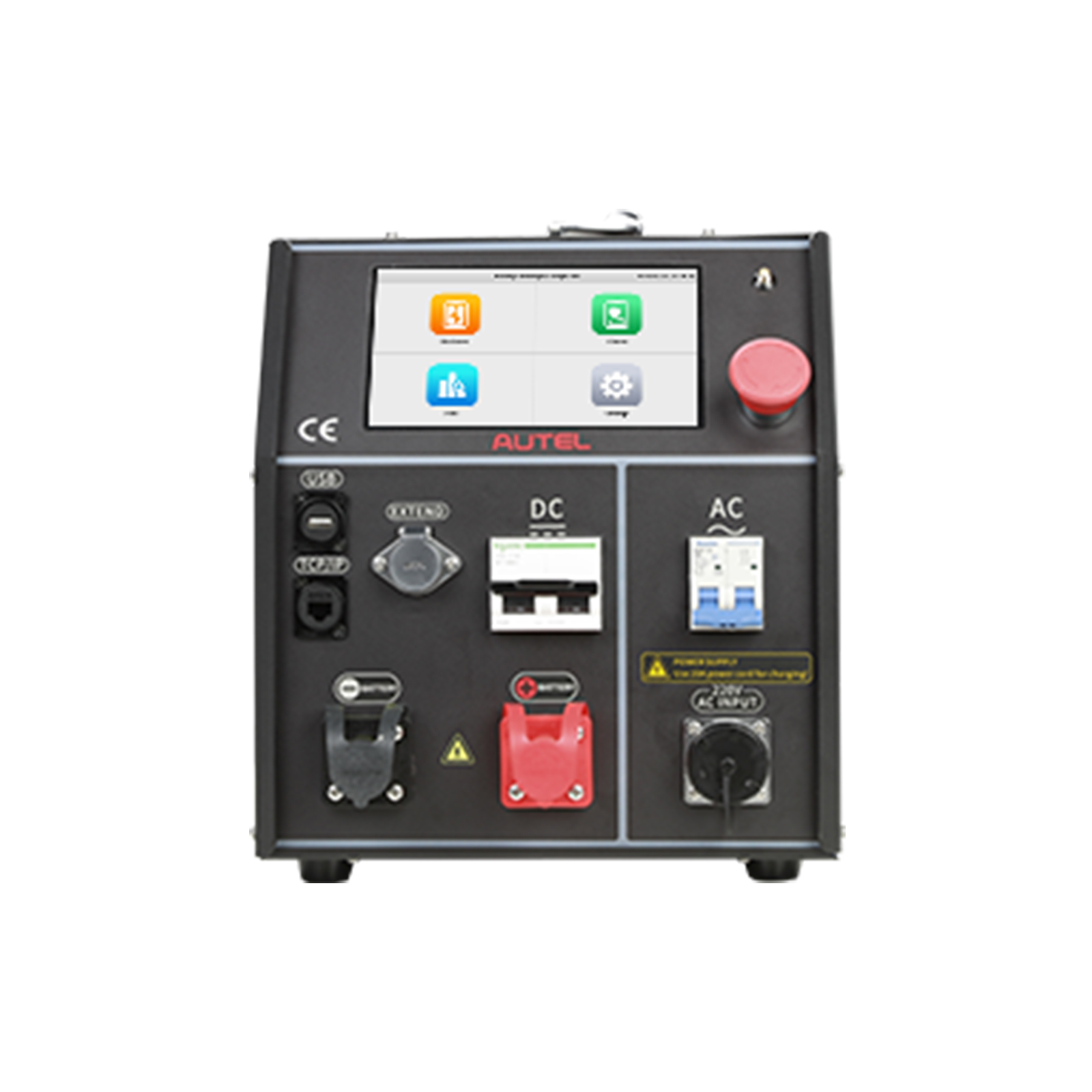

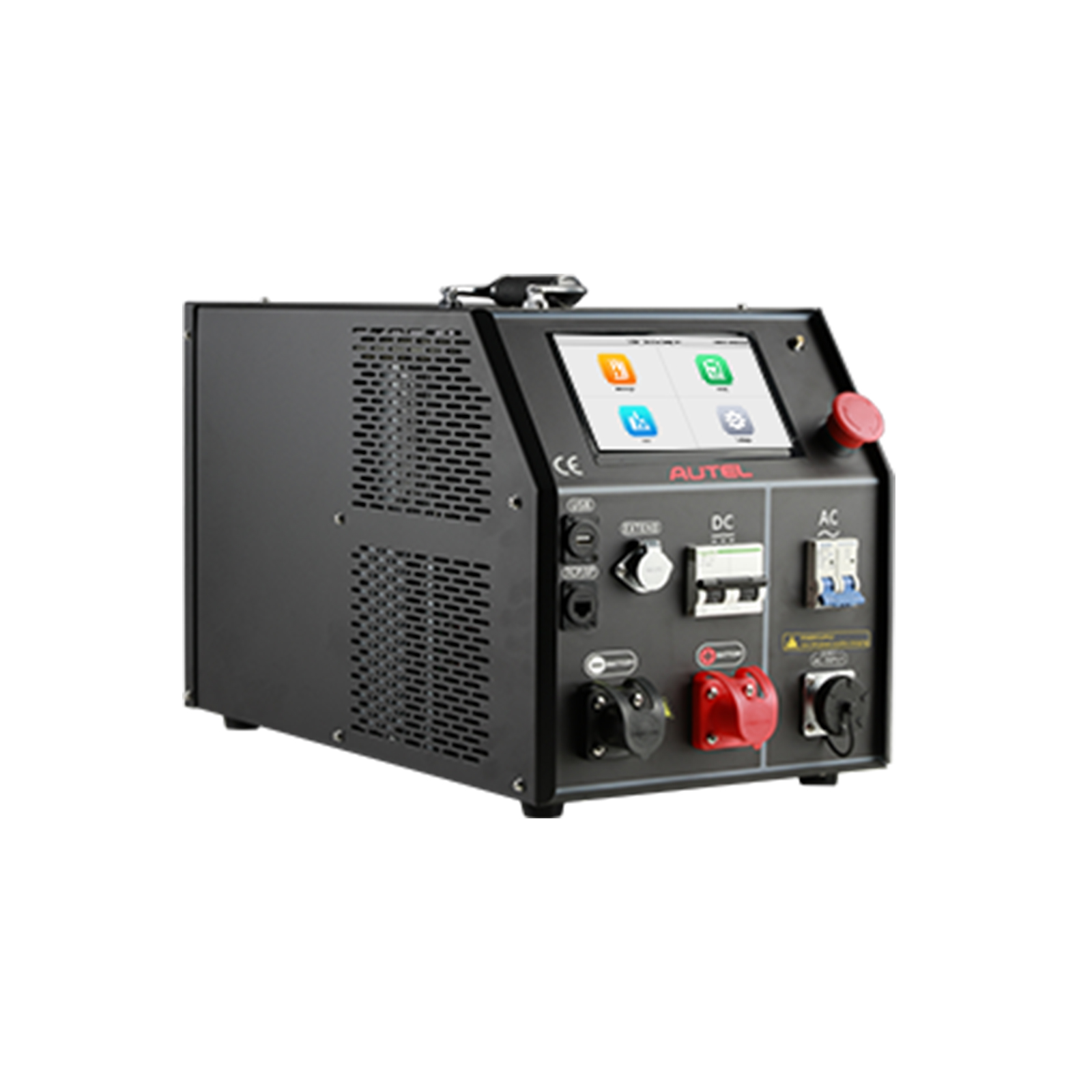

AUTEL MaxiEV CDT100 High Voltage Battery Discharge & Charge Unit

Autel MaxiEV CDT100 User Manual.

The MaxiEV CDT100 is a high voltage battery charger and discharger.

Improve battery pack capacity with constant current charge, and discharge modes.  The CDT100 displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms with optional connecters (included in kit).


Zoom-in and zoom-out display capability.

Industry applications include electric vehicle transporters, collision and mechanical repair shops, and salvage yards and vehicle warehouses.

Autel CDT100 Key Features:

Real-time display of single-cell maximum/minimum voltage and other critical data.
Graphs, columns, and report forms for easy data analysis.
Zoom-in and zoom-out display capability for detailed insights.

Ideal For:

Electric vehicle transporters
Collision and mechanical repair shops
Salvage yards
Vehicle warehouses

Take your battery management to the next level with the MaxiEV CDT100.Ready to revolutionize the industry!

The CDT100 is part of our new Autel MaxiEV powerful tools lineup.  Combined with the industry-first enhanced EV diagnostic scan tool, the MaxiSys Ultra EV, empower your business with:

1.Unmatched Compliance: Meet the growing demand for safe and reliable EV service.
2.Enhanced Safety: Protect technicians and drivers from electrical hazards.
3.New Revenue Streams: Expand your service offerings to cater to the booming EV market.

Autel CDT100 Other Features:

1.Wide-voltage design, suitable for discharge, charge, and activation testing of modules with different voltage levels
2.Set constant current and power, Charge and Discharge modes for varied applications
3.Displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms.  Zoom-in and Zoom-out display capability
4.Optimize battery pack capacity with constant current discharge, and charge modes
5.Issues warnings for reverse connection, over temperature, overcurrent, fan failure and overcharge
6.Improves charging efficiency by ensuring full charge
7.Battery/Vehicle Transport: Safely discharge batteries to DOT transport guidelines(Air: 20%, Land/Sea: 40%)
8.Repair shops: Direct charging and discharging before, during, and after vehicle repair
9.Collision shops: Discharge the battery before placing the vehicle in the baking booth
10.Salvage Yards and Vehicle Warehouses: Prevent thermal runaway events (fires) by discharging batteries

Autel MaxiEV CDT100 Specifications:

CHARGE-DISCHARGE VOLTAGE RANGE: DC 2-285V
ACCURACY: ±0.5 FS
CELL VOLTAGE RANGE:  0-5V
CELL VOLTAGE ACCURACY:  0.001V
DISCHARGE CURRENT RANGE:  150A/7.2kW Max.
DISCHARGE CURRENT ACCURACY:  ±1 FS
CHARGE CURRENT RANGE:  100A/4.4kW Max.
CHARGE CURRENT ACCURACY:  ±1 FS
POWER SUPPLY:  AC 110/220V
WORKING MODE:  Discharge, charge, activation
DEVICE SAFETY:  Multi-protection of DC input overvoltage, reverse connection, discharge overcurrent, system overtemperature
DIMENSIONS (WEIGHT):  530x300x350mm (23.4kg)


Package includes:

1pc x AUTEL MaxiEV CDT100 High Voltage Battery Discharge & Charge Unit
