Home >> Product Catalogue >> ELM Family Tools >> Details

Product Name: Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool
Part No.: E011
Net Weight: 0.2KG
Price: $11
聽聽聽聽聽聽聽聽

Buy more related products


* Brand new and high quality.

* Mini ELM327 OBD2 OBDII EOBD Bluetooth Auto Scanner Interface V1.5.
* Wireless bluetooth up to 10 meters.
* Don't need any batteries.
* Suitable for all OBD2 protocals and all OBD2 cars.

Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool  Functions:
Timing Advance
Fuel System Status
Short Term Fuel Trim
Display current sensor data, including:
Fuel System status
Absolute Throttle Position
Clear trouble codes and turn off the MIL ("Check Engine" light)
Fuel Pressure
Air Flow Rate
Oxygen sensor voltages/associated short term fuel trims
Engine RPM
Coolant Temperature
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Long Term Fuel Trim
Intake Manifold Pressure
Intake Air Temperature
Vehicle Speed
Calculated Load Value




Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan TooFeatures
OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
* Automatic
* SAE J1850 PWM(41.6Kbaud)
* SAE J1850 VPW(10.4Kbaud)
* ISO9141-2(5 baud init,10.4Kbaud)
* ISO14230-4 KWP(5 baud init,10.4 Kbaud)
* ISO14230-4 KWP(fast init,10.4 Kbaud)
* ISO15765-4 CAN(11bit ID,500 Kbaud)
* ISO15765-4 CAN(29bit ID,500 Kbaud)
* ISO15765-4 CAN(11bit ID,250 Kbaud)
* ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)



B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)



Output Protocol: RS232 to bluetooth

Frequancy: 38400

Voltage: 12V

Current: 45mA

Bluetooth: 10M


Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool
Supported platform: Andriod, Symbian, Windows Mobile, palm, pc, pocket pc.



Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool Software:

1. For Andyiod: Torque+1.5.58+

2. For Symbian: OBDScopev1.21

For WindowMobile-palm-pc-pocket pc:

3. ScanMaster--ELM v2.1-pc

4. PCMSCAN-pc

5. OBD2Spy

6. ELM327-V1.2-pc

7. EasyOBDII

8. wOBDCRAZY



software CD is included.

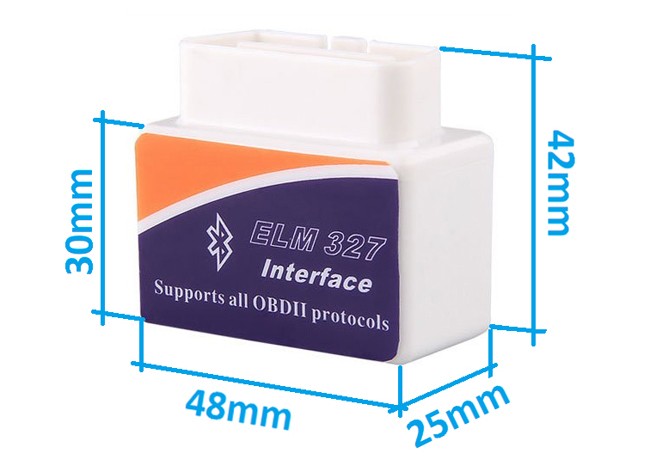

Size: 42*48*24

Net Weight: 36.6g

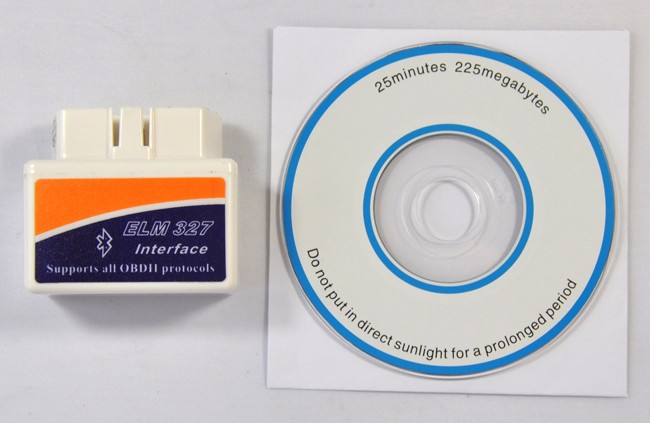

Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool Packing List:

1 * EOBD / OBD2 Main Unit

1 * CD-ROM

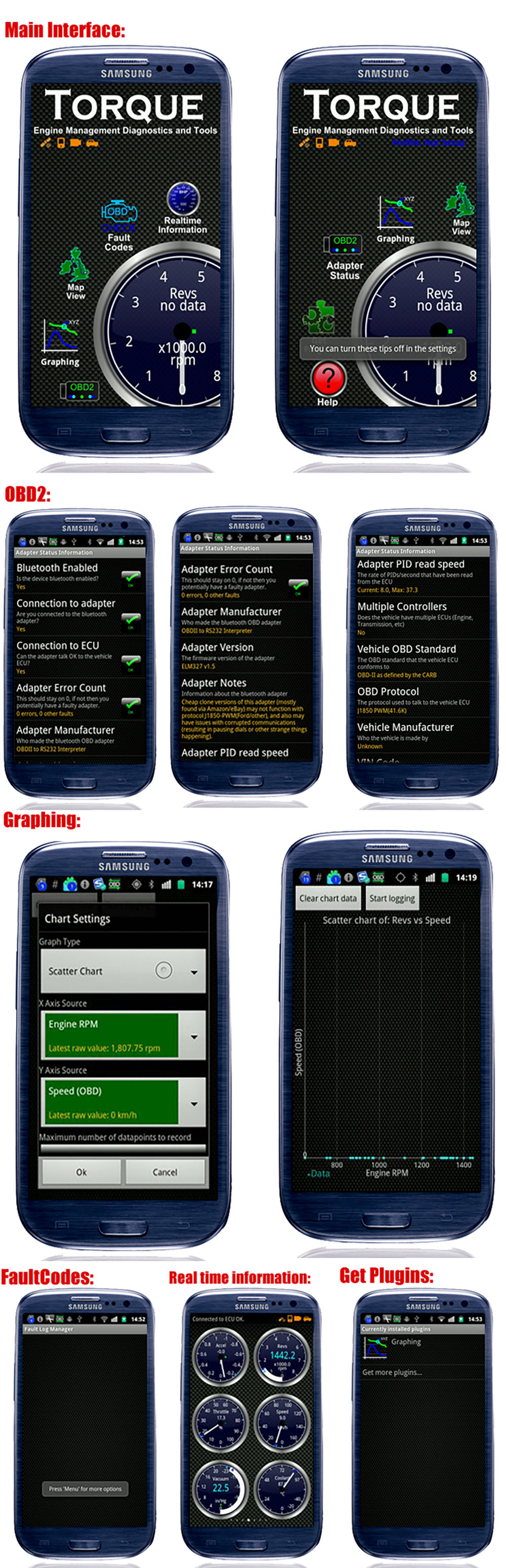

Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool Screenshot (Android System):






Mini OBD2 ELM327 Interface Bluetooth OBD2 Scan Tool Vehicles supported:

Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:

Ford

Chevrolet

Chrysler

Acura

BMW

Buick

Cadillac

Daewoo

Dodge

Fiat

GMC

Honda

Hyundai

Infinity

Isuzu

Jaguar

Jeep

Kia

Land Rover

Lexus

Mazda

Mercedes-Benz

Mercury

Mini

Mitsubishi

Nissan

Oldsmobile

Peugeot

Pontiac

Porsche

Renault

Saab

Saturn

Seat

Skoda

Smart

Suzuki

Toyota

Volkswagen

Audi

Volvo

...





Some 1994 and 1995 models are also supported.
