2024 Original IVECO ELTRAC EASY Truck Bus Diagnostic Scanner Iveco (VCI) Diagnostic Interface Tool With V18.1 Software

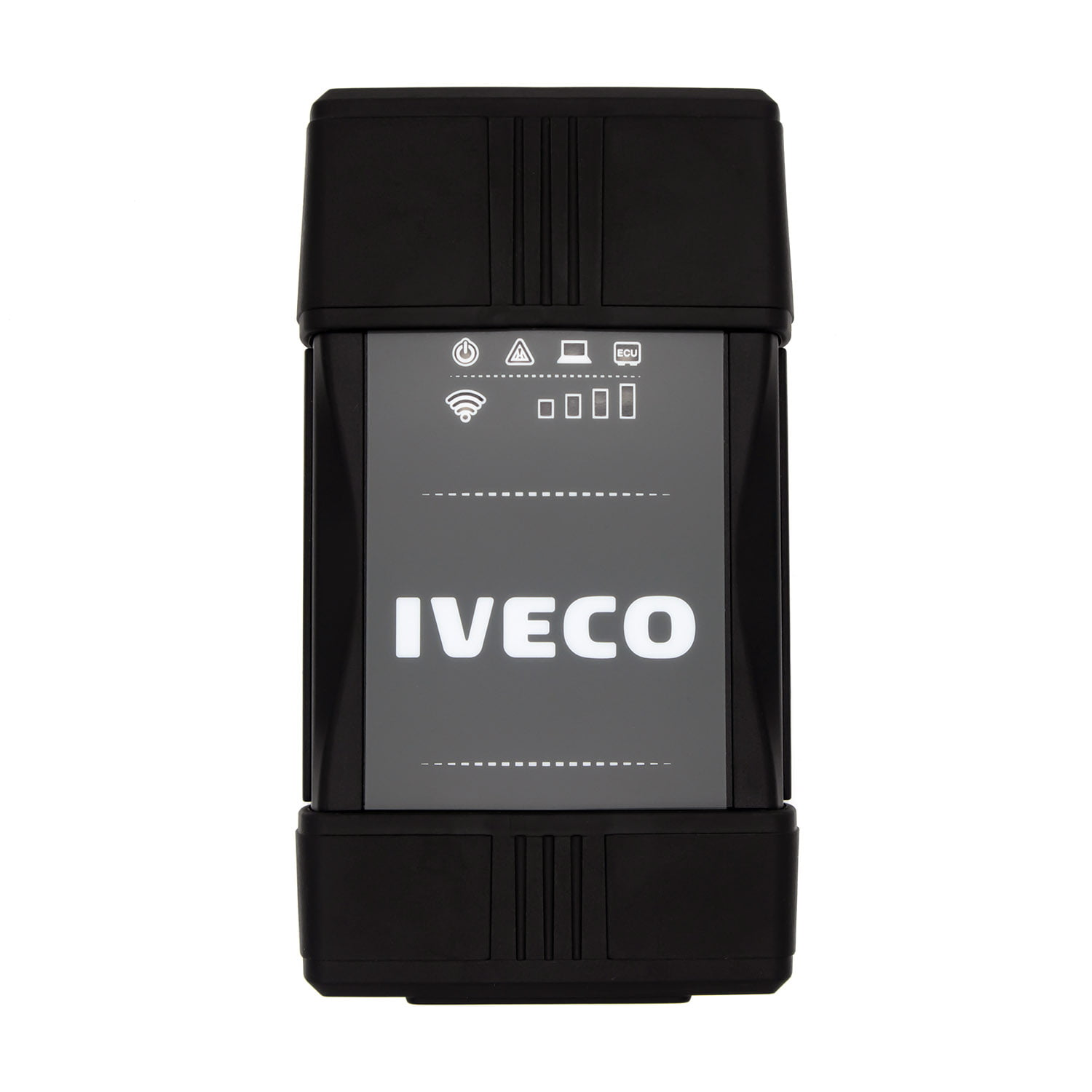

The IVECO CoreXS VCI 4 is the latest, high-performance diagnostic interface, specifically designed for IVECO trucks, light-duty, and heavy-duty vehicles. Manufactured by Actia, this original diagnostic tool supports IVECO’s UDT software (Unified Diagnostic Tool) for comprehensive diagnostics and ECU programming.

Note: Software not included; must be obtained separately.

Product Overview:

The IVECO CoreXS VCI 4 is engineered to support a wide range of IVECO vehicles, from light-duty to heavy-duty trucks, buses, and off-road vehicles. It provides seamless communication with various ECUs and allows technicians to perform advanced diagnostic tasks such as error code clearing, ECU parameter programming, and troubleshooting.

This versatile tool offers both wireless and wired connectivity options, ensuring maximum flexibility in workshops and mobile diagnostic setups.

Key Features:

● Supports a wide range of vehicles, including light-duty (from MY2014), medium-range (from MY2013), off-road heavy vehicles (from MY2013), and on-road heavy vehicles (from MY2013).
● Diagnostic Testing: Conduct tests and diagnose faults quickly and efficiently.
● Error Recovery: Clear error codes and reset ECUs to ensure optimal vehicle performance.
● ECU Replacement and Parameter Programming: Support for ECU replacement and configuring parameters.
● Active Monitoring and Troubleshooting: Continuously monitor ECU data and identify issues in real-time.
● Wireless Connectivity: WiFi (802.11 a/b/g/n) and Bluetooth 4.0 ensure fast communication without the need for cables.

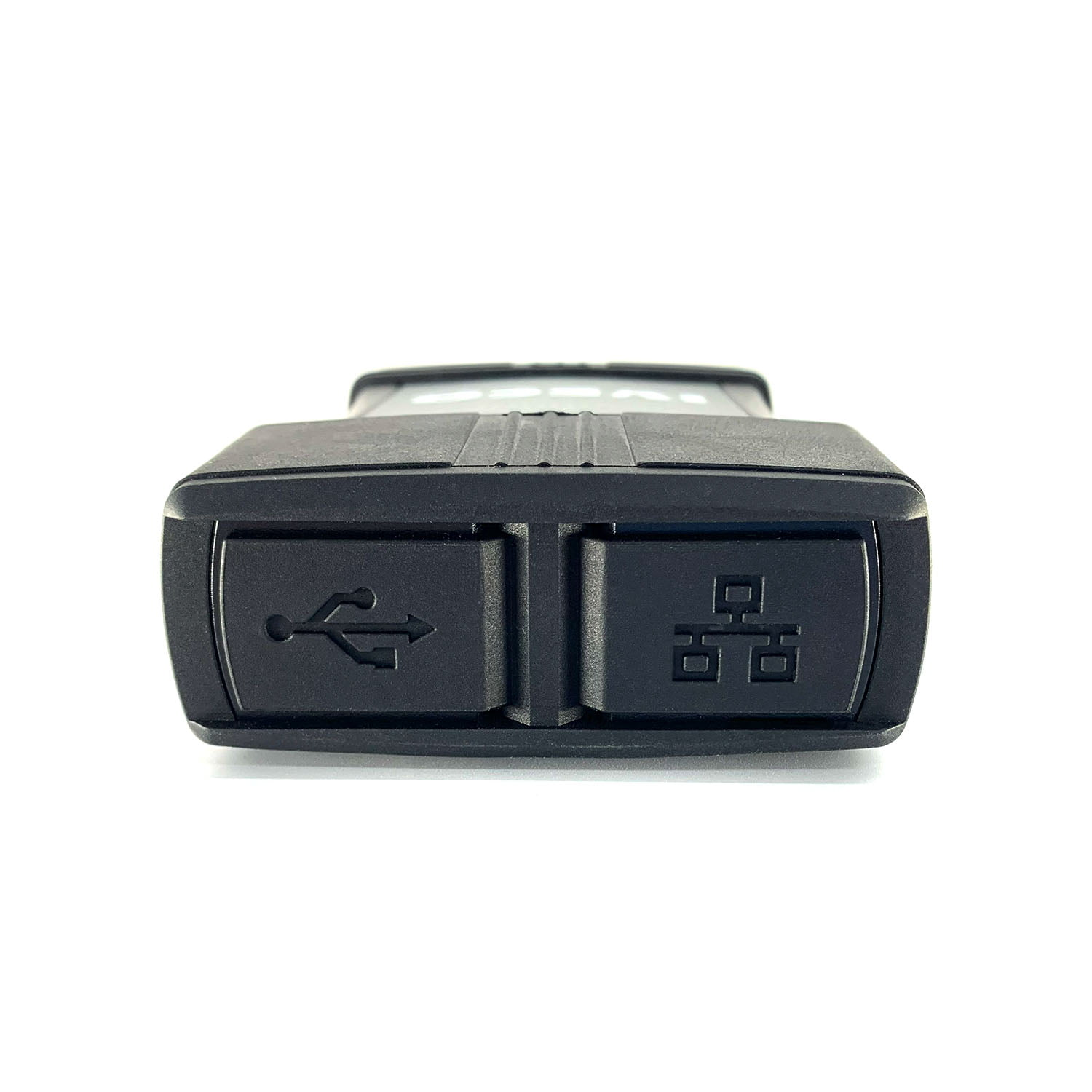

● USB and Ethernet Connectivity: USB 2.0 High Speed and Ethernet 10/100 for wired connections when required.
● Supported Protocols: CAN FD, CAN, K/L, and DoIP.
● MicroSD Slot: For expanded memory and data storage.
● Voltage Compatibility: 12/24V on-board systems.

Vehicle Compatibility Includes:

● Light Range: From Daily MY2012 onwards
● Light Duty: From Daily MY2014 onwards
● Medium Range: From Eurocargo MY2013 onwards
● Off-road Heavy: From Trakker MY2013 onwards
● On-road Heavy: From Stralis MY2013 onwards
● Fire Fighting: Eurofire Euro6
● Bus: Includes Afriway, Crossway, EuroMidi CC MY2008, EuroMidi CCMY2013, EuroMidi Euro6, Magelys, Urbanway, and many more.
● Specialized Models: Supports Astra HD9 Euro6 and other Europe vehicles.

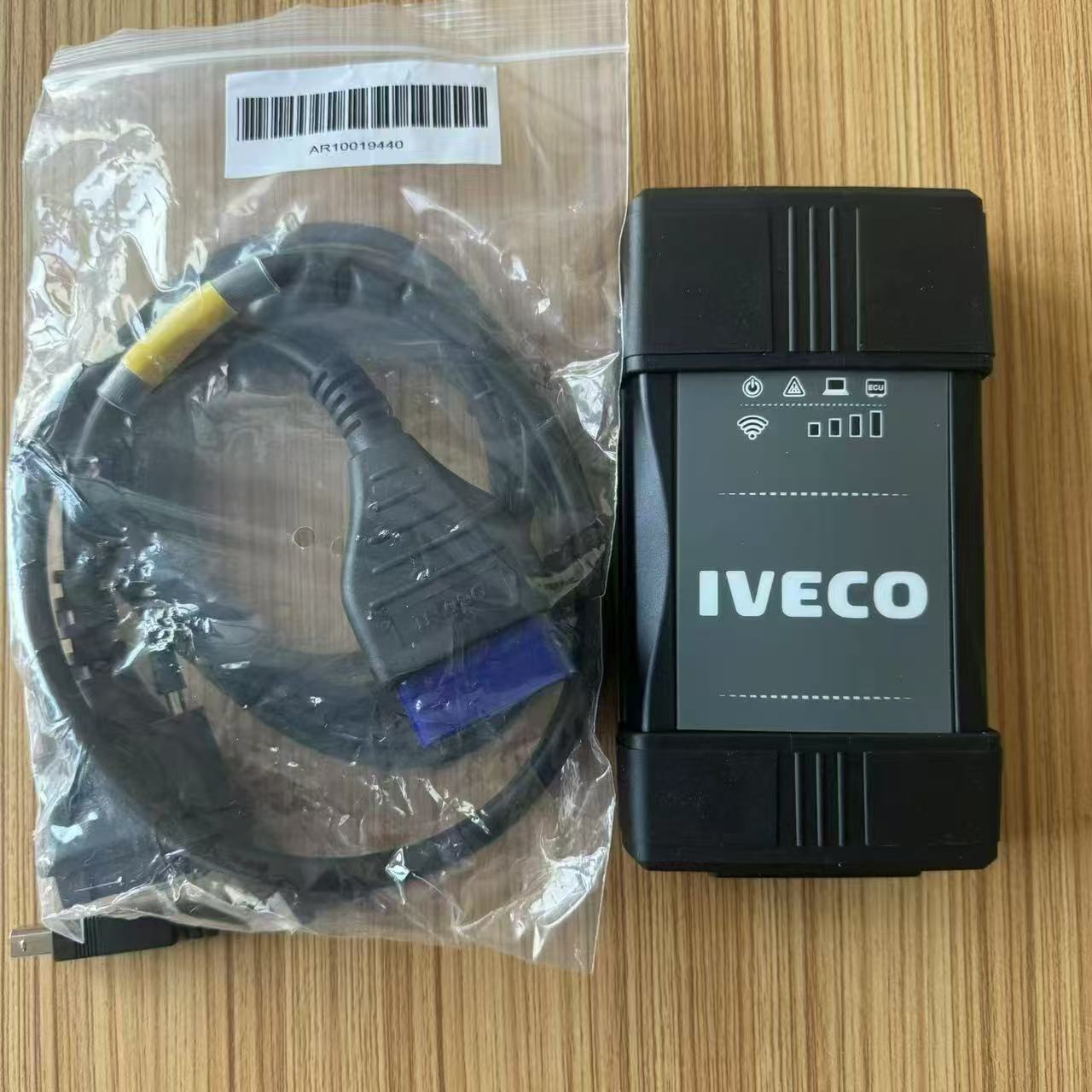

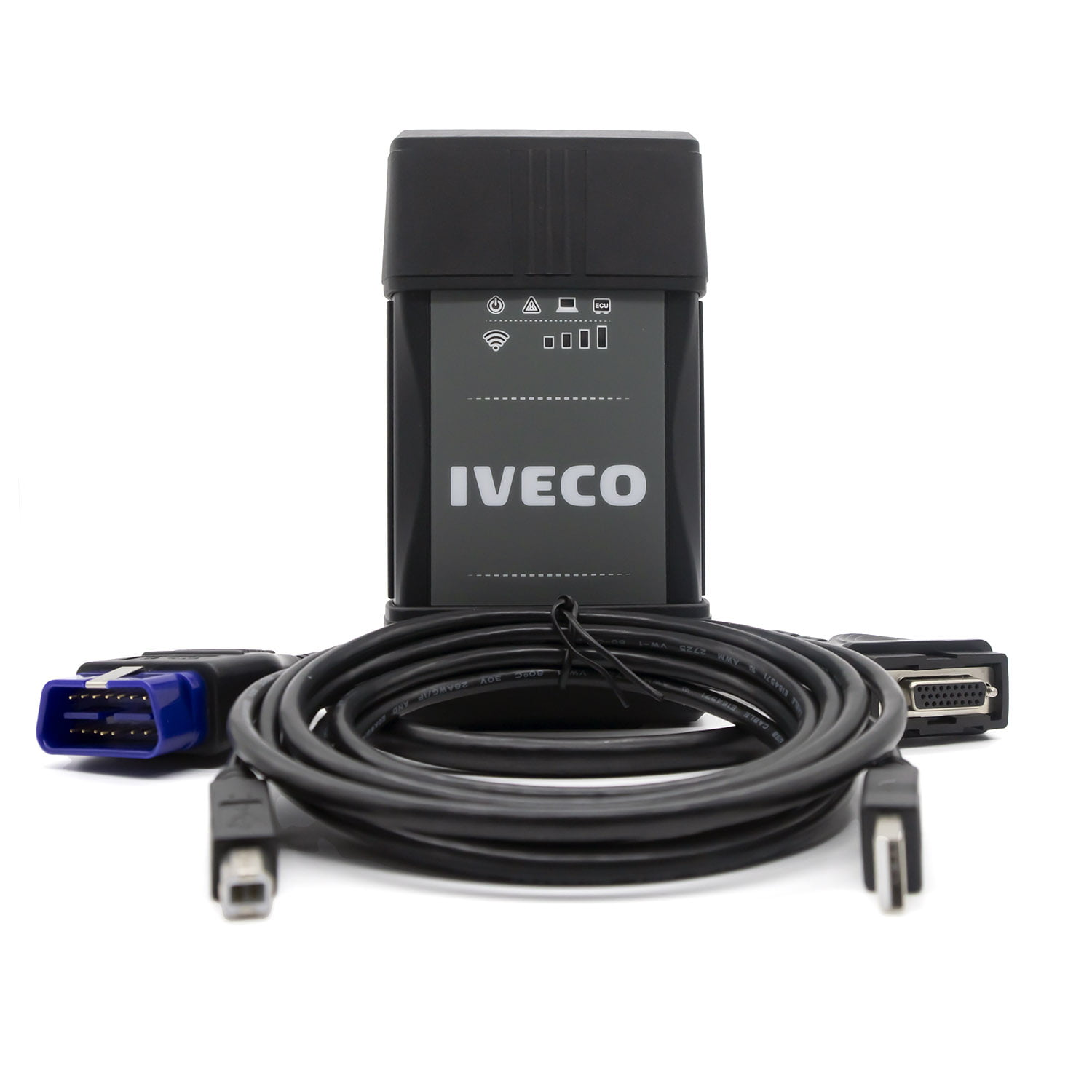

Package Includes:

● IVECO CoreXS VCI 4 Interface (0.35 kg – 17 x 9.5 x 3.5 cm)
● USB A to B Cable (3 meters)

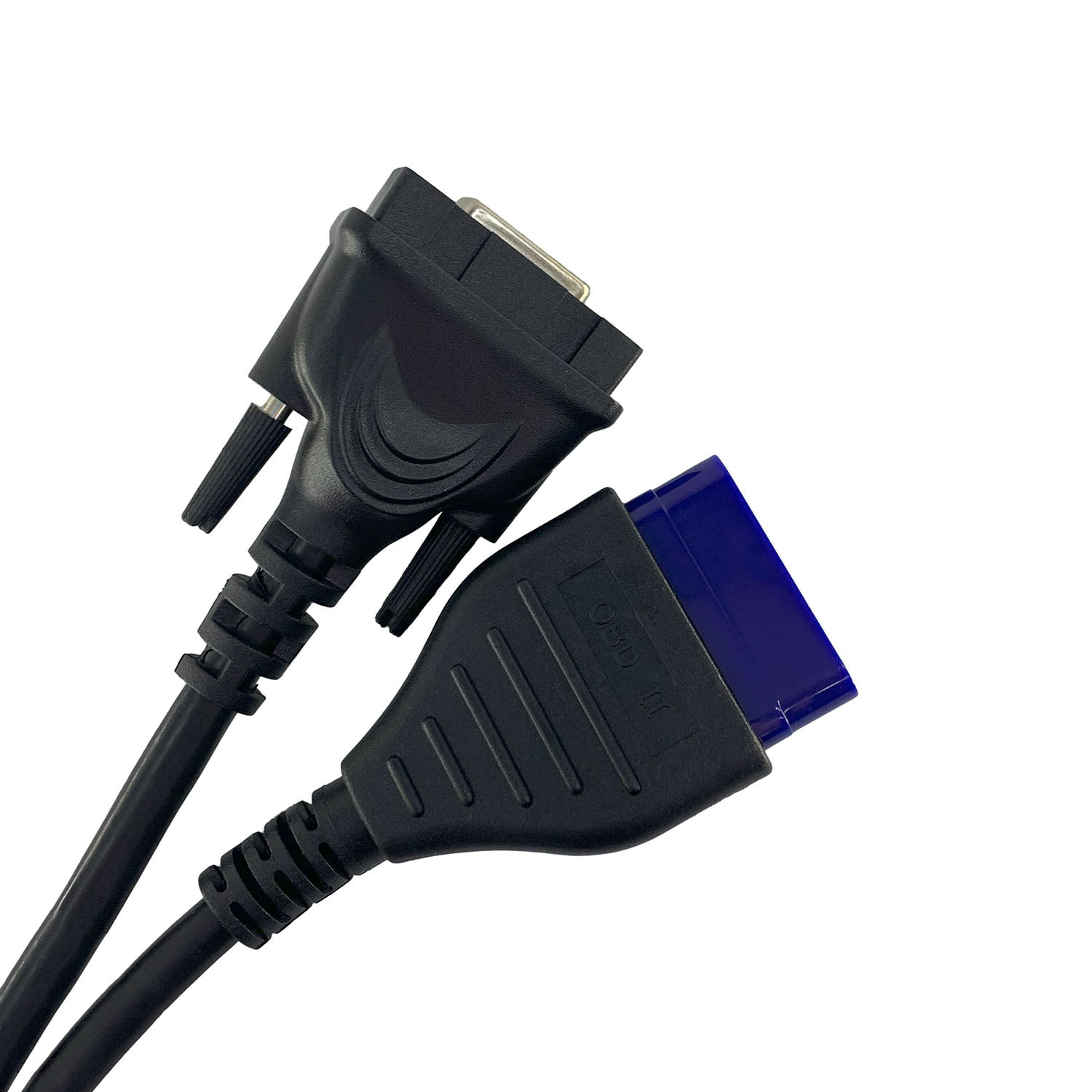

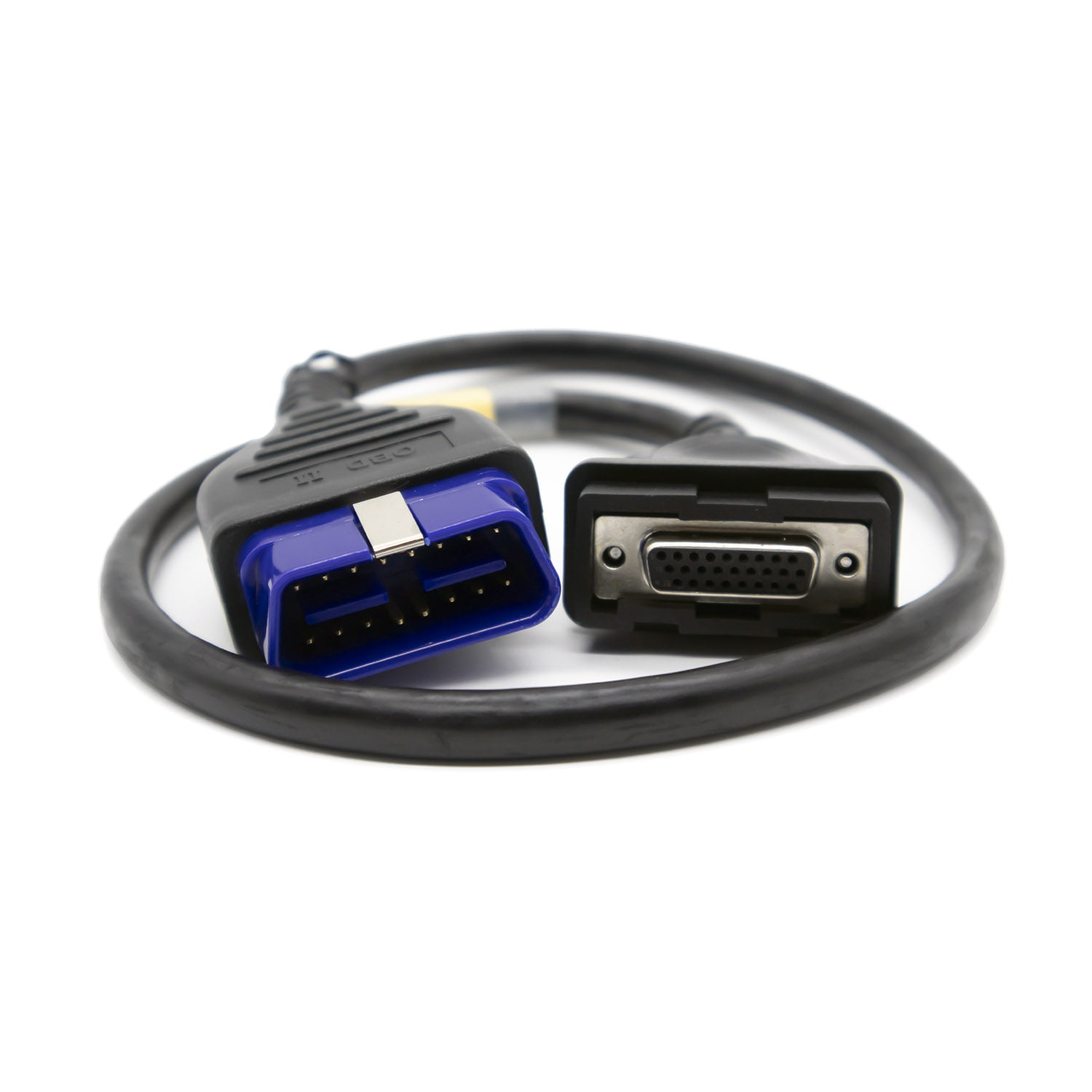

● OBD2 Cable (74 cm)

Important Note:

● This listing includes only the hardware tool.
● Software is not included and must be obtained and installed separately.
● We do not offer software sales services.
Dimensions & Weight:
● Dimensions: 156 x 85 x 37 mm
● Weight: 340g
