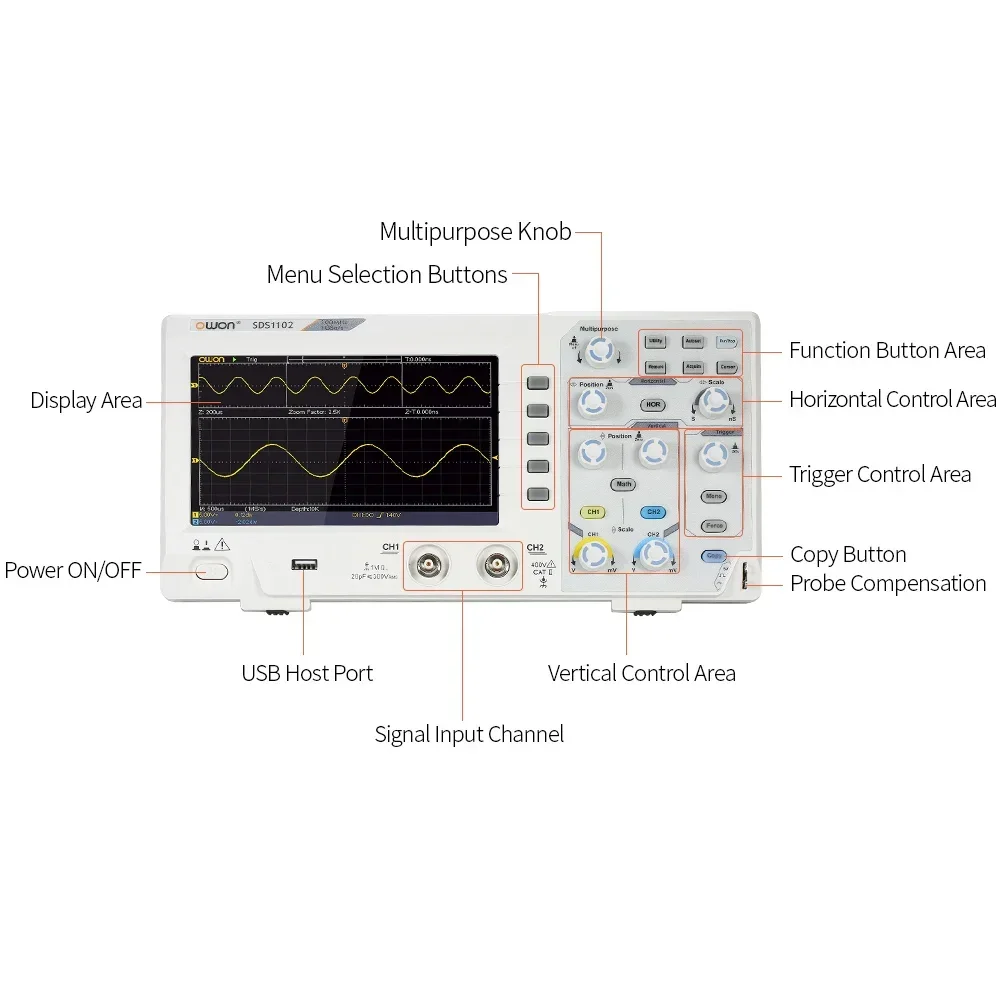

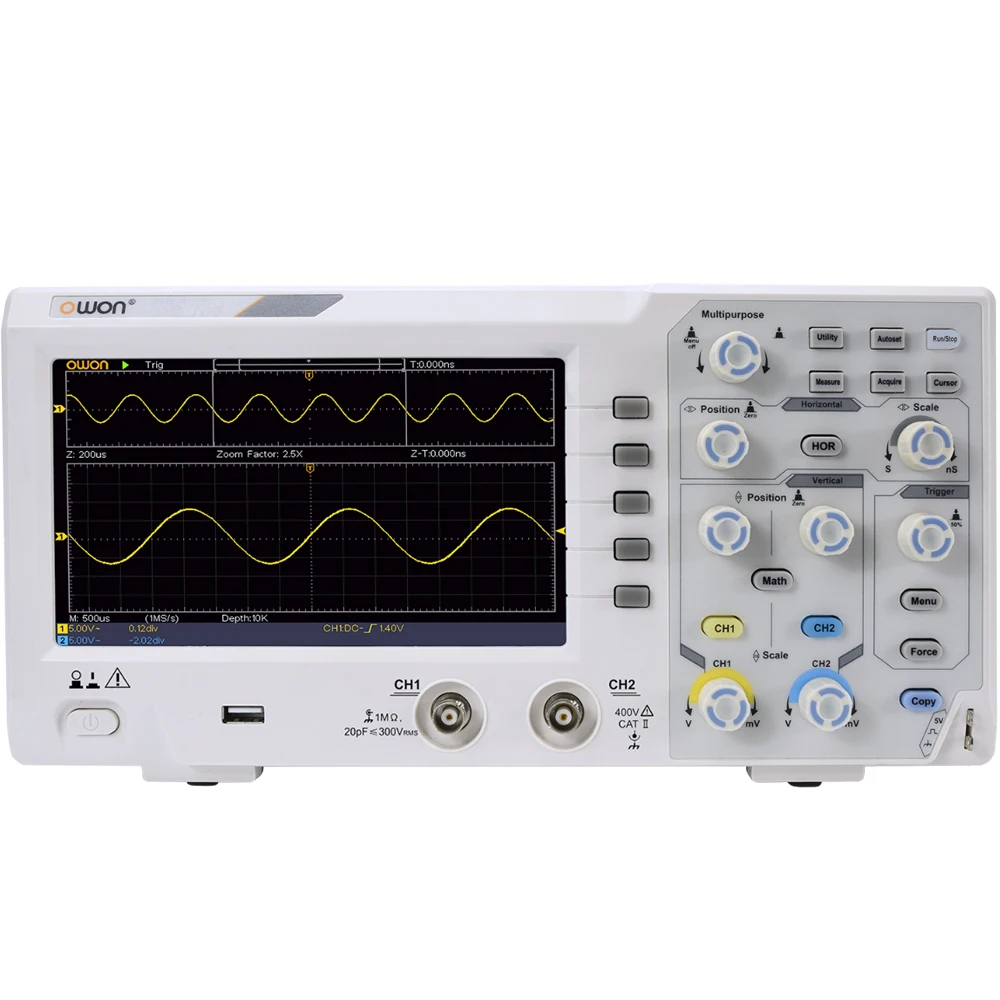

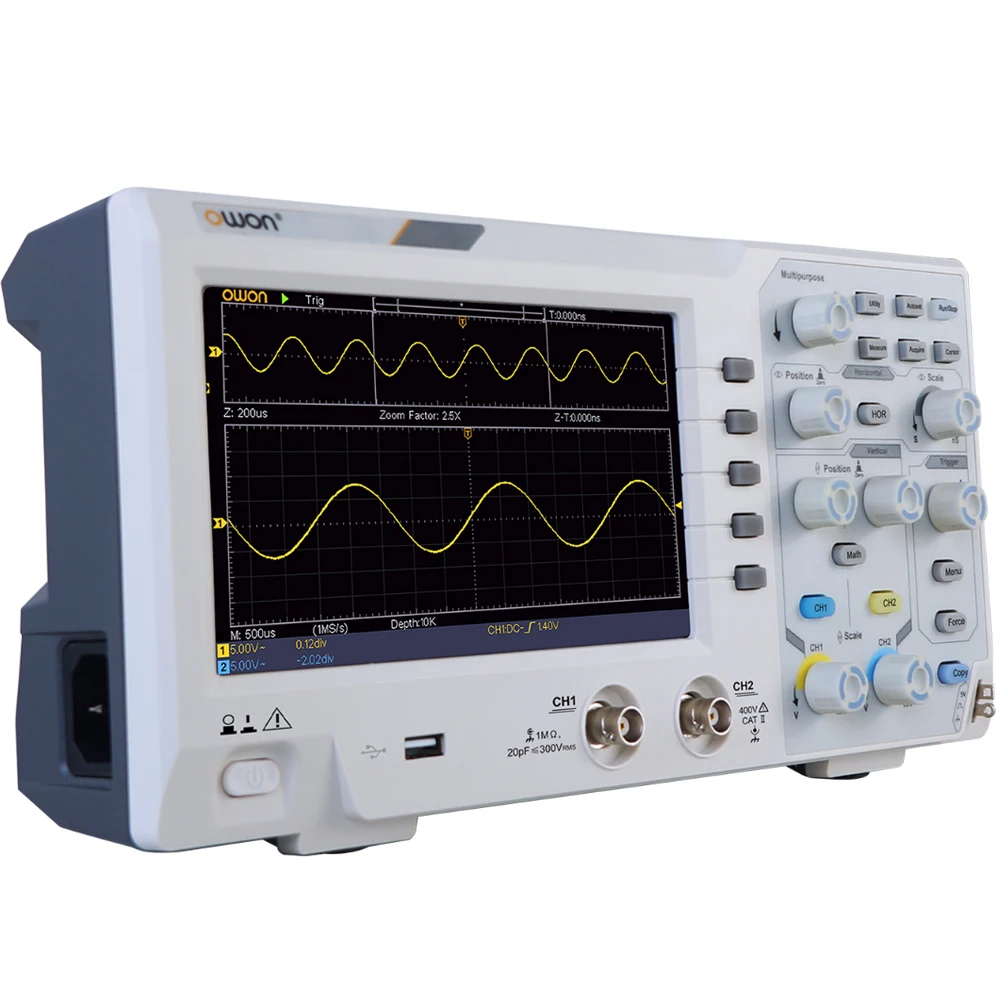

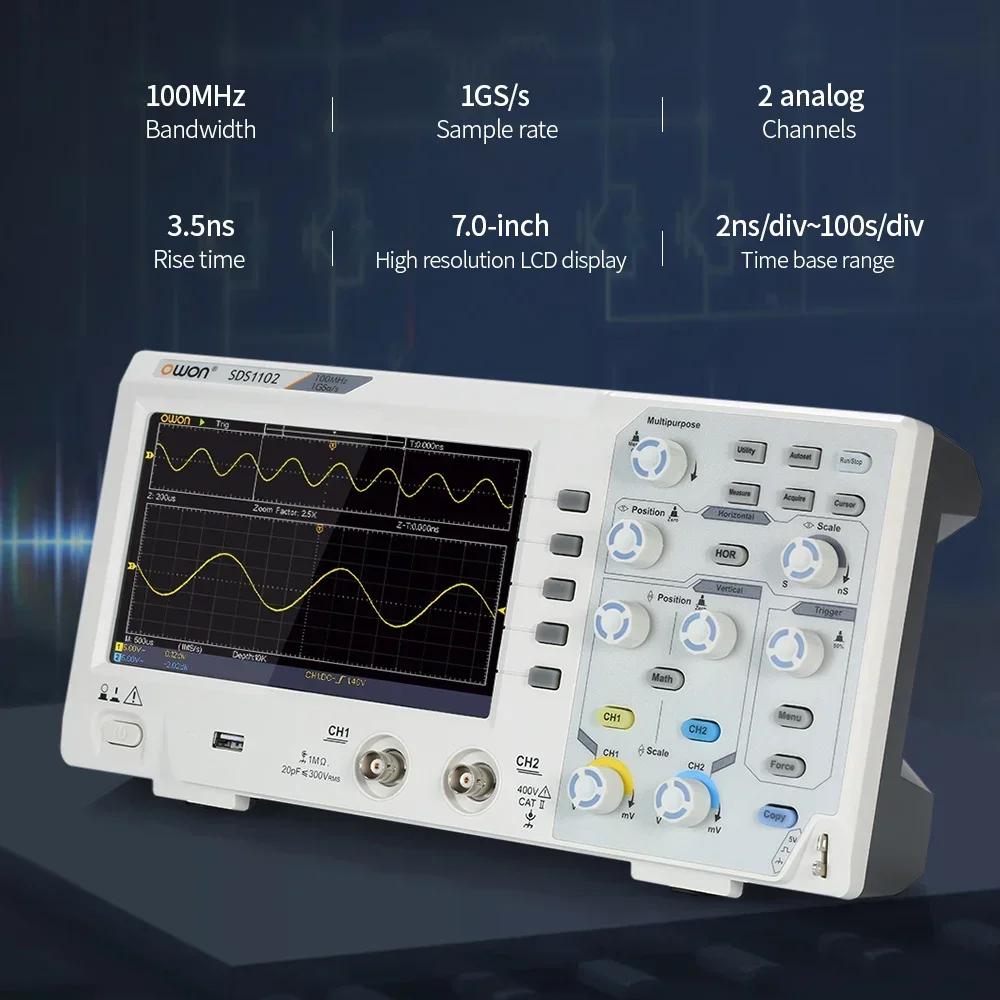

Bandwidth

100MHz

 Sample Rate

1GS/s

 Horizontal Scale (s/div)

5ns/div -1000s/div, step by 1 -2 -5

 Rise Time (at input, typical)

≤3.5ns

 Channel

2

 Display

7" color LCD, 800x 480 pixels

 Input Impedance

1MΩ ± 2%, in parallel with 20pF±5pF

 Channel Isolation

50Hz: 100: 1, 10MHz: 40: 1

 Max Input Voltage

400V (PK - PK) (DC+AC, PK - PK)

 DC Gain Accuracy

±3%

 Record Length

10K

 DC Accuracy (average)

Average≥16: ±(3% reading + 0.05 div) for V

 Probe Attenuation Factor

1X, 10X, 100X, 1000X

 LF Respond (AC, -3dB)

≥10Hz (at input, AC coupling, -3dB)

 Sample Rate / Relay Time

 Accuracy

±100ppm

 Interpolation

sin (x) / x

 Interval (T) Accuracy

 (full bandwidth)

 Single : ±(1 interval time + 100ppmx reading + 0.6ns),

 Average>16 : ±(1 interval time + 100ppmx reading + 0.4ns)

 Input Coupling

DC, AC , and GND

 Vertical Resolution (A/D)

8 bits (2channels simultaneously)

 Vertical Sensitivity

2mV/div - 10V/div (at input)

 Trigger Type

Edge, Video

 Trigger Mode

Auto, Normal, and Single

 Trigger Level

±5 divisions from screen center

 Line / Field Frequency (video)

NTSC, PAL and SECAM standard

 Cursor Measurement

V, and T between cursors

 Automatic Measurement

Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot,

Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A--B , Delay A--B, area,

cycle area

 Waveform Math

+,-, x, /, invert, FFT

 Waveform Storage

16 waveforms

 Lissajous

 Figure

Bandwidth

Full bandwidth

 Phase Difference

±3 degrees

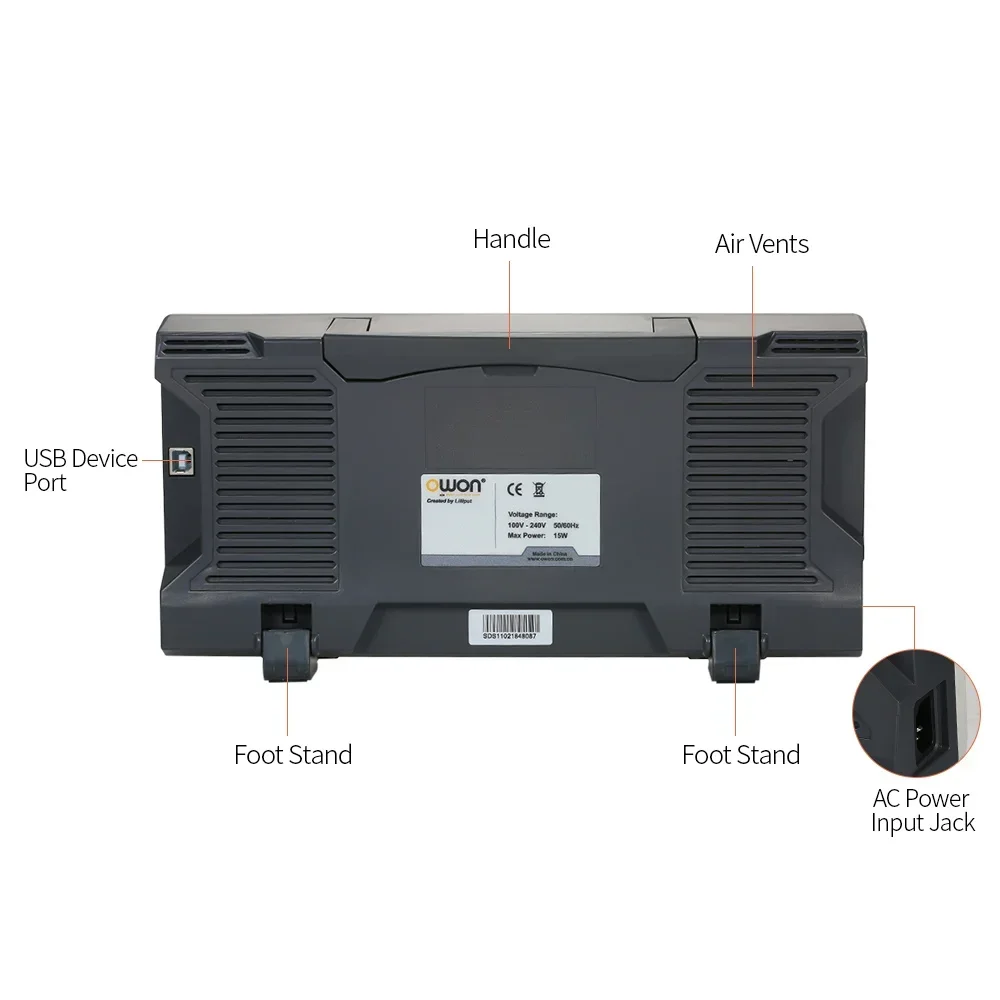

 Communication Interface

USB host, USB device

 Frequency Counter

available

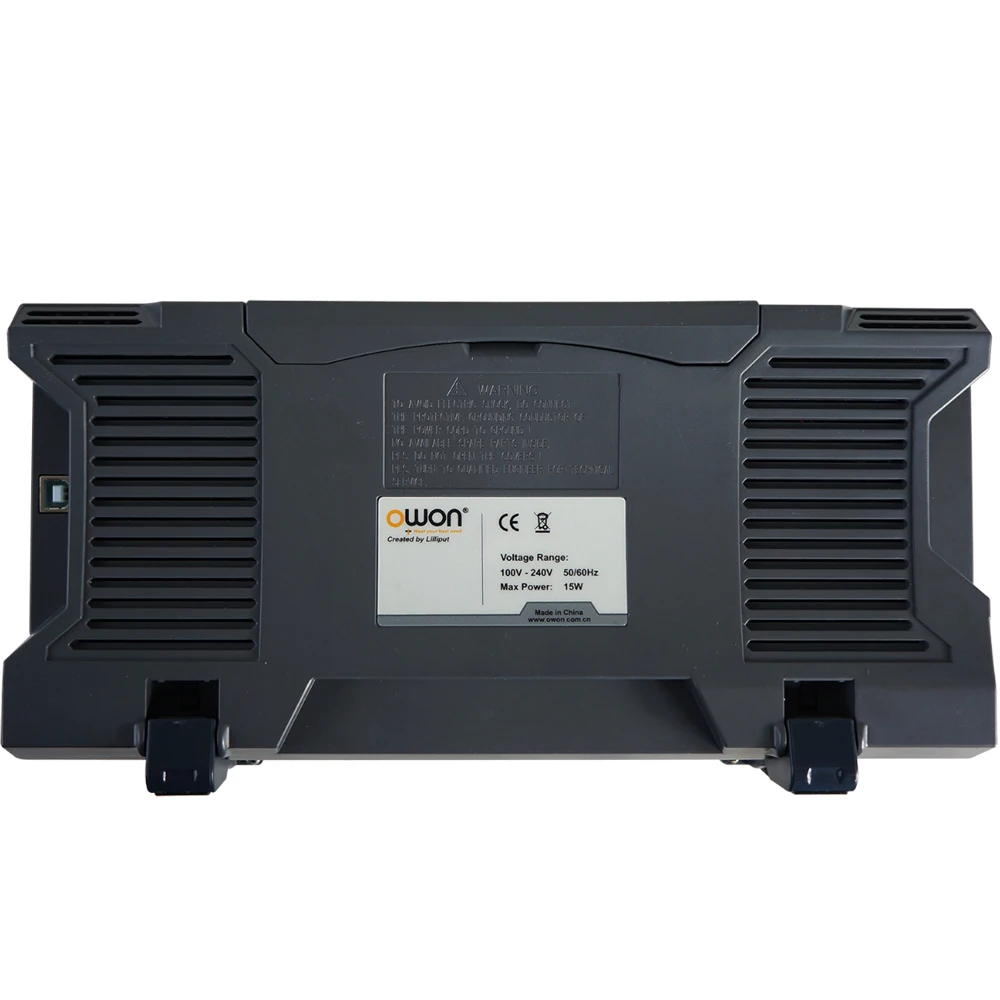

 Power Supply

100V - 240V AC, 50/60Hz, CATII

Plug Type

US or EU plug

 Power Consumption

<15W

 Fuse

2A, T class, 250V

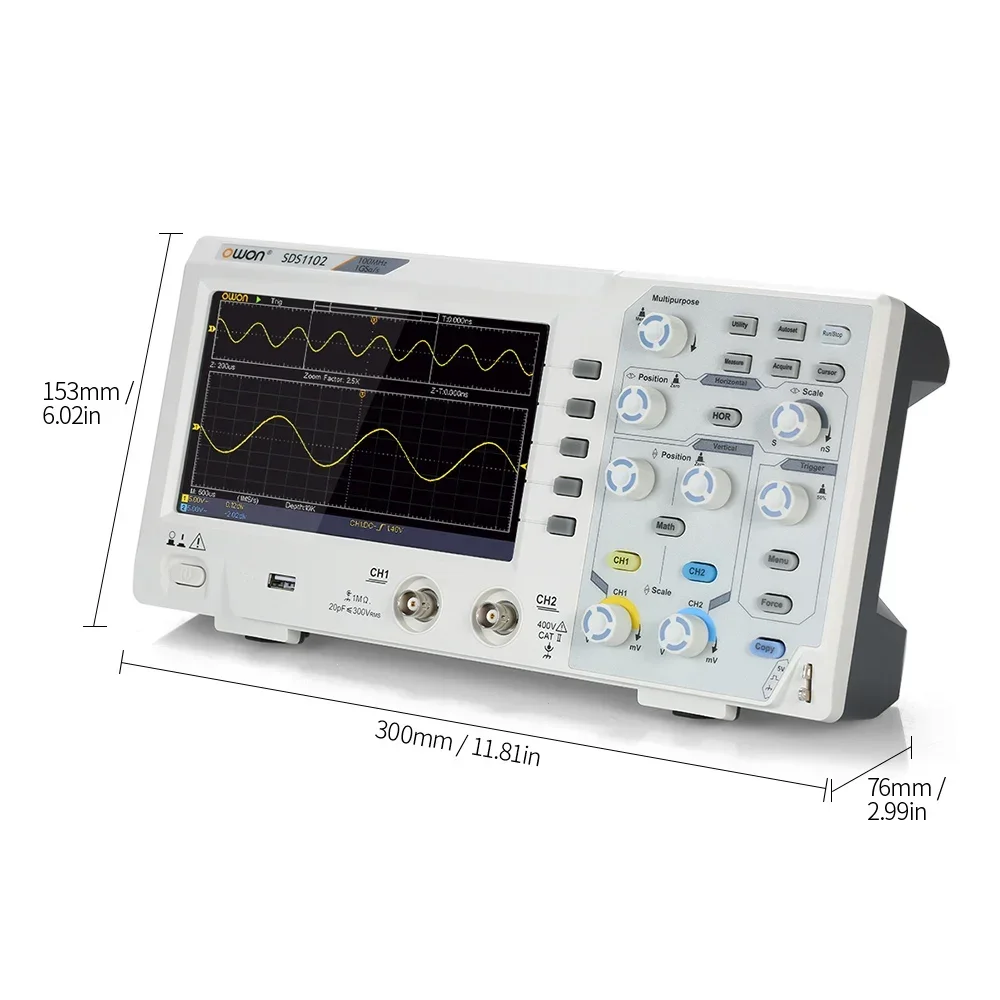

Weight

1.6kg(approx.)
