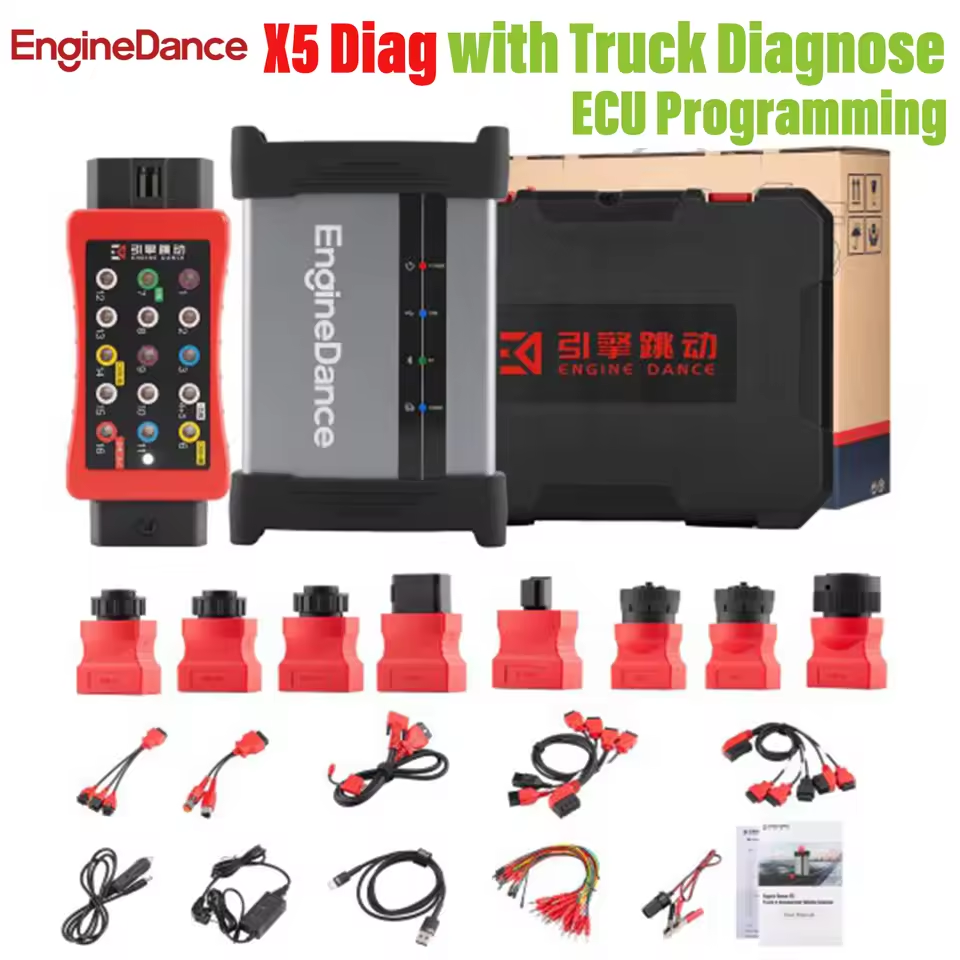

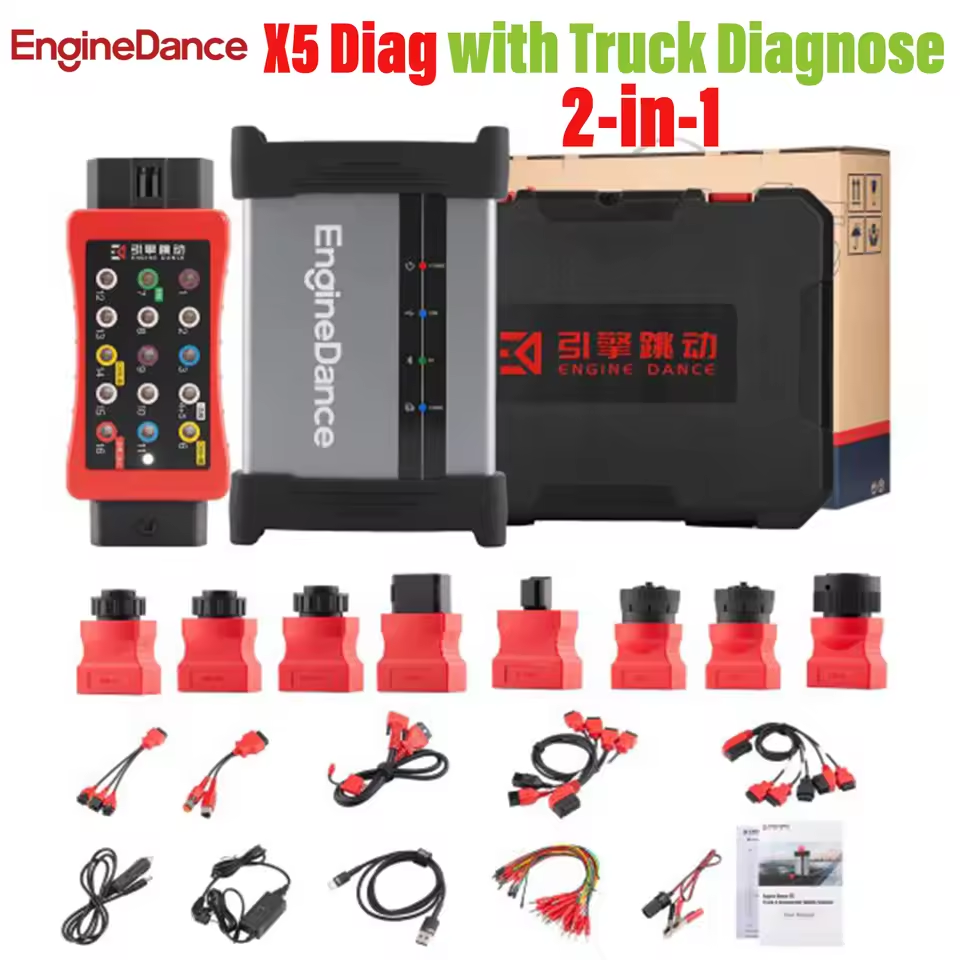

EngineDance X5 Diag 2-in-1 ECU Programming & Truck Diagnostic Tool with X5 Box Full Configuration for Light Trucks, Heavy Trucks, Buses, Agricultural Machinery, Construction Machinery

1.Cover European, Japanese and Korean brand vehicles.

2.Wide coverage: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery.

3.Full-system diagnostics: Not only Engine, support also AMT, ABS, EBS, VCU.

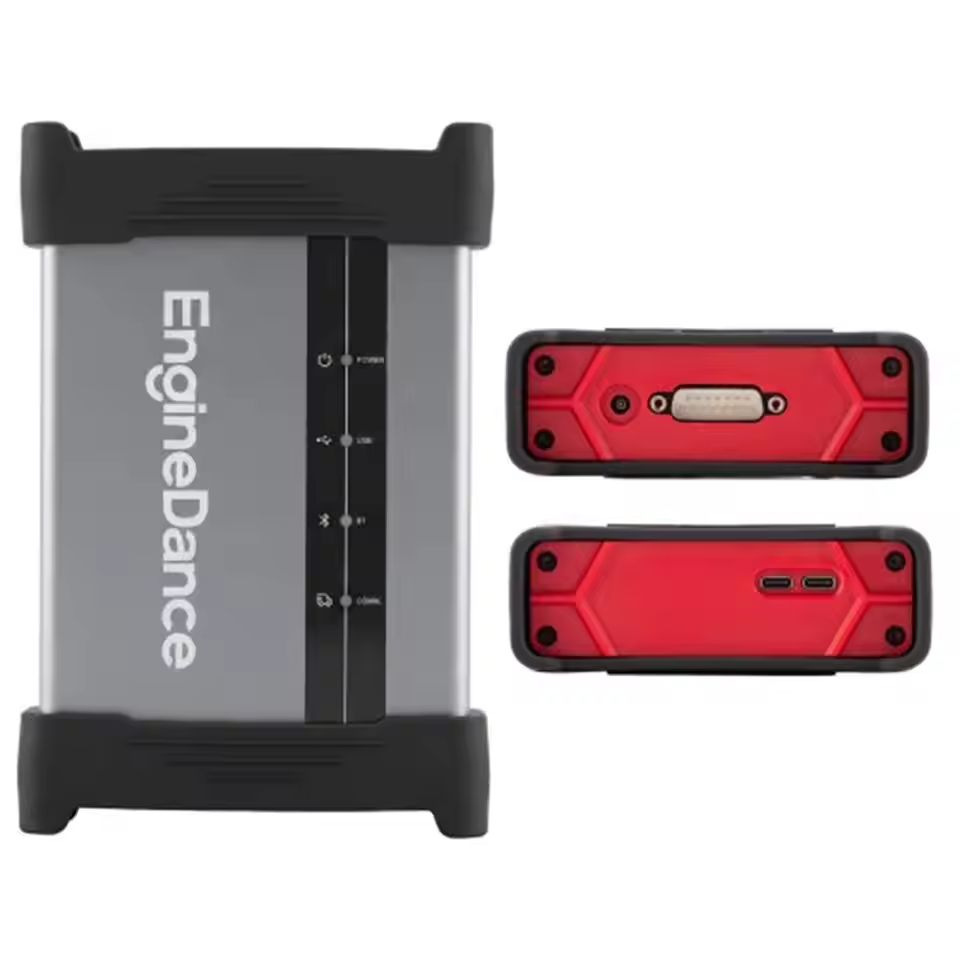

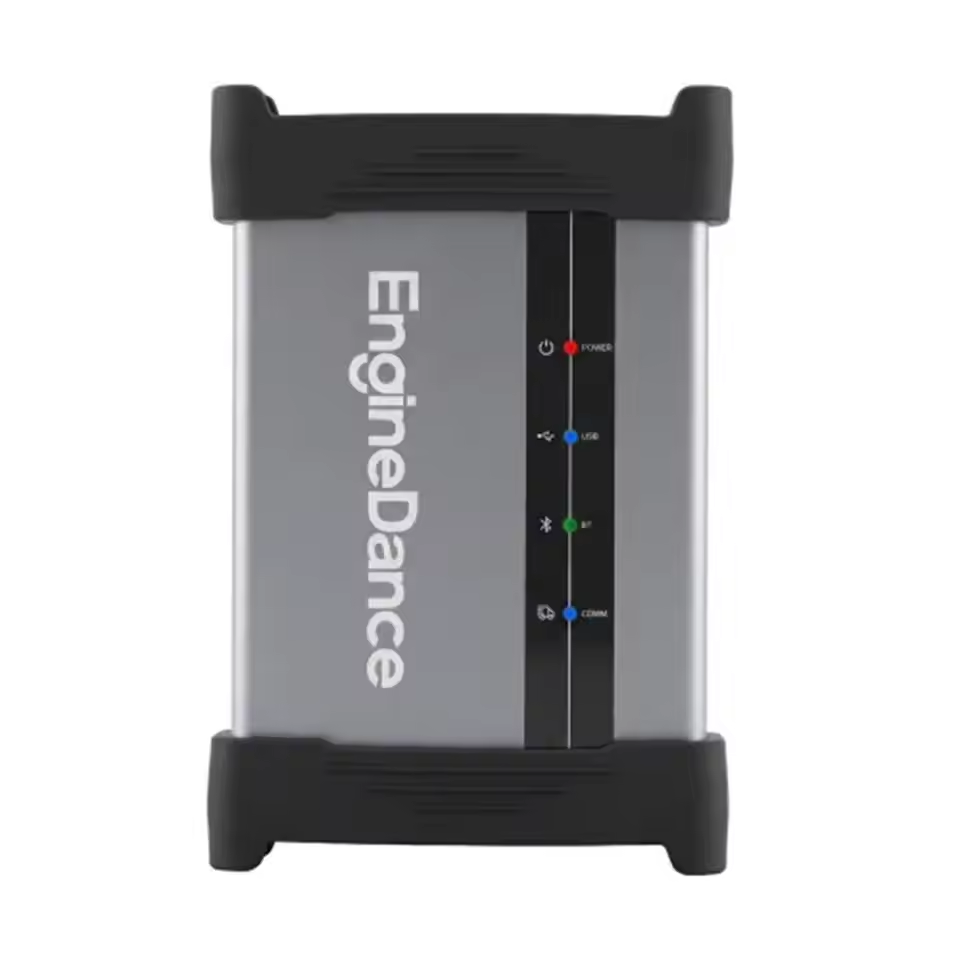

EngineDance X5 Features:

Aviation technology is as solid as a rock

Hardware shell adopts aviation alloy laser engraving process, anti-fall, even if the car pressure can be easily dealt with.

Dual mode communication convenience - speed

Wireless Bluetooth and high-speed USB-typc C dual-mode communication, balancing convenience and speed.

Two year warranty and worry free after-sales service

Two years of extended warranty period ensures worry free use of the product. After 2 years, the Upgrade cost: $300 per year.

Currently supports Chinese, English, Russian, and Vietnamese.

Supported Models: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.

Supported ECUs: Bosch, Denso, Cummins, Delphi, Continental, Trw, Ectek ...

Supported Engines: Cummins, Perkins, Caterpillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai ..

Features:

Support more than 99.9% Chinese Brands vehicles.

Cover European, Japanese and Korean brand vehicles.

Wide coverage: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery.

Full-system diagnostics: Not only Engine, support also AMT, ABS, EBS, VCU...

Intelligently ldentify ECU

Read and Erase fault code

Actual values and Actuators

Specical Functions:

Injector coding

Engine brake programming

Transmission adapter learning

Cylinder cutoff

Cylinder compression test

DPF forced regeneration

Recording DCT date clearing

Clutch adjustment

Accumulation data clearing

Fuel consumption data reset

Engine oil distance reset

Parameters calibration

Idle speed setting

Idle shutdown timer

EngineDance X5 Highlights:

BOSCH MD1 Read & Flash(support partly Encrypted ECU)

EDC17 Encrypted Series Read/Flash

International Vehicle Diagnosis/Flash

Compatible with Various Diesel/Natural Gas

Transmission Diagnosis/Self-Learning/Flash

BCM/ Instrument Diagnosis/Calibration/Flash

Engineering Machinery Diagnosis/Read/Flash

Agricultural Machinery Diagnosis/Calibration/Flash

Support Various Deep Code Clearing & fault Light Turn Off

Urea Induction Reset

Remotely Unlock encrypted MD1 ECU (not all, partly)

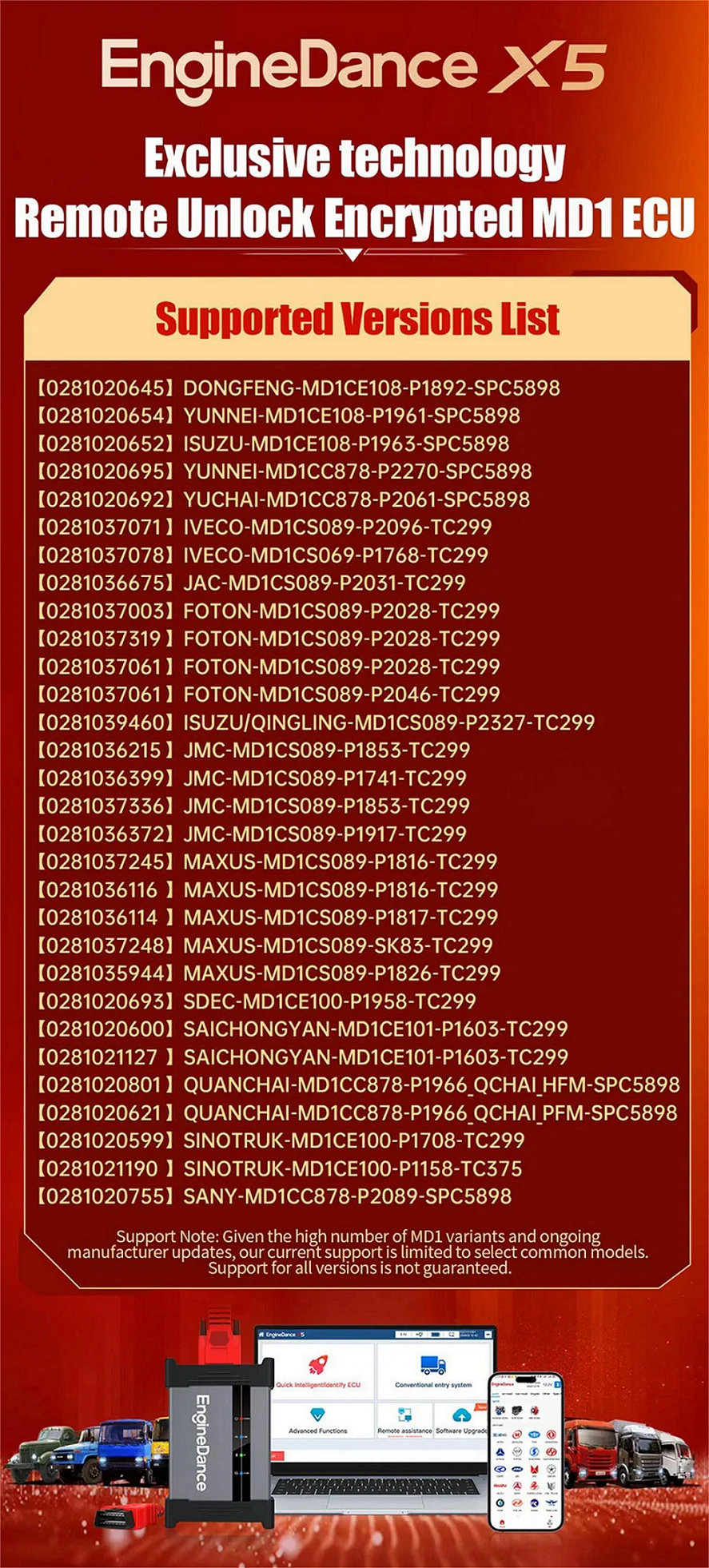

EngineDance X5 Exclusive technology Remote Unlock Encrypted MD1 ECU

(Notice: Paid feature: $100 for one remote unlock,one time.)

EngineDance X5 Exclusive technology Remote Unlock Encrypted MD1 ECU

(Notice: Paid feature: $100 for one remote unlock,one time.)

EngineDance X5 Exclusive technology Remote Unlock Encrypted MD1 ECU

(Notice: Paid feature: $100 for one remote unlock,one time.)

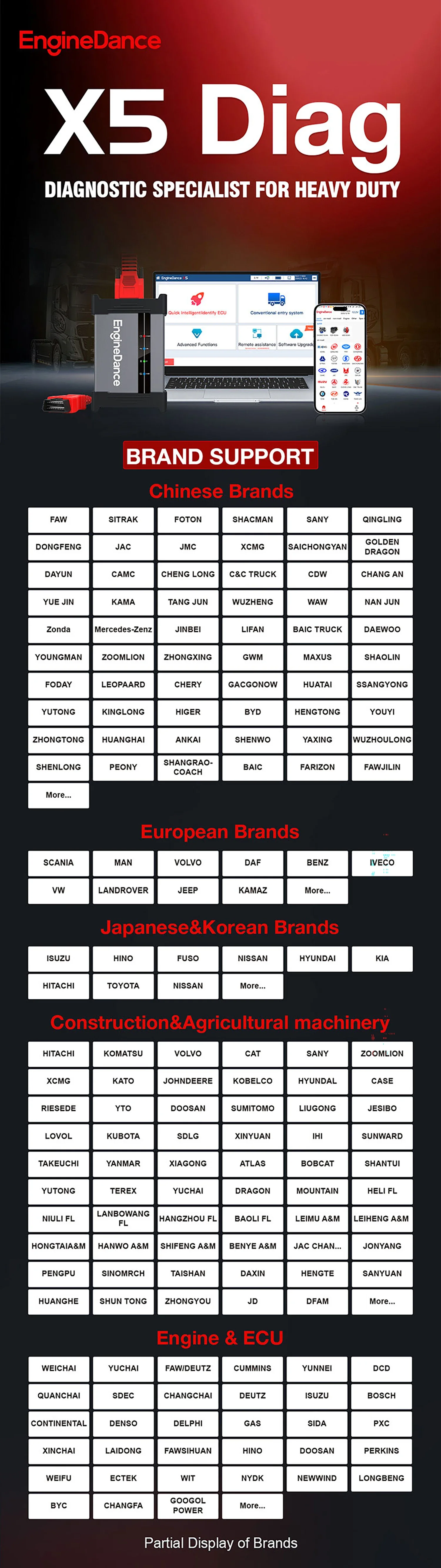

Supported Vehicle Brands:

Chinese Vehicle Brands:

For FAW, for SITRAK, for FOTON, for SHACMAN, for SANY, for QINGLING, for DONGFENG, for JAC, for JMC, for XCMG, for SAICHONGYAN, for GOLDEN, for DAYUN, for CAMC, for CHENG LONG, for C&C TRUCK, for CDW, for CHANG AN, for YUE JIN, for KAMA, for TANGJUN, for WUZHENG, for WAW, for NAN JUN, for Zonda,for Mercedes-Zenz, for JINBEI, for LIFAN, for BAIC Truck, for DAEWOO, for YOUNGMAN....

European Vehicle Brands:

For Scania, for MAN, for VOLVO, for DAF, for BENZ, for IVECO, for VW, for LANROVER, for JEEP, for KAMAZ....

Japanese & Korean Brands:

For ISUZU, for HINO, for FUSO, for NISSAN, for HYUNDAI, for KIA, for HITACHI, for TOYOTA....

Construction & Agriculture Machinery:

For HITACHI, for KOMATSU, for VOLVO, for CAT, for SANY, for ZOOMLION, for XCMG, for KATO, for JOHNDEERE, for KOBELCO, for HYUNDAI, for CASE, for RIESEDE, for YTO, for DOOSAN....

Engine & ECU:

For WEICHAI, for YUCHAI, for FAW/DEUTZ, for CUMMINS, for YUNNEI, for DCD, for QUANCHAI, for SDEC, for CHANGCHAI, for DEUTZ, for ISUZU, for BOSCH, for CONTINENTAL, for DENSO, for DELPHI, for GAS, for SIDA, for PXC....

X5 ECU Programming List

Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles, covering almost all electronic control systems of commercial vehicles in China, not listed one by one.

Scania

Scania EMS/EDC S6 250Kbps (MPC555/556)

Scania EMS S6 500Kbps (MPC555/556)

Scania EMS S8 250Kbps (MPC5566)

Scania EMS S8/EMD1 500Kbps (MPC5566)

Scania EMS S8/EMD1 250Kbps (MPC5566) –Bam

Scania EMS S8/EMD1 500Kbps (MPC5566) –Bam

Reading, writing, checksum correction.

Volvo Truck

Volvo/Renault/Construction Machinery EMS2.0(MPC56X)-OBD

Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)-Bam

Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)- Bench

Volvo/Renault/UD/MACK truck EMS2.3(MPC5674F)- Bench

Volvo/Renault/UD/MACK truck EMS2.4(MPC5777C)- Bench

Reading, writing, checksum correction.

MAN

MAN Bosch EDC7C32 [0281020067]-OBD/Bench

MAN Bosch EDC17CV42 [0281020273, TC1797]- Bench

MAN Bosch MD1CE100 TC299- Bench

Reading, writing, checksum correction.

Ford Transit /Ranger, Land Rover Defender

Land Rover Defender SID208- Bench/ Bam

Ford Ranger SID209-OPEN

Ford Transit SID208 OBD/Bench / Bam

Ford Transit SID209 OBD/Open

SID604 OBD writing, checksum

Reading, writing, checksum correction.

Denso SH725XX/1N83M/ SH705X Bench

1N83M FLASH Reading, writing, checksum correction

1N83M EEPROM Reading, writing

SH72543 FLASH Reading, writing, checksum correction

SH72543 EEPROM Reading, writing

SH7055 FLASH Reading, writing, checksum correction

SH7055 EEPROM Reading, writing

SH7058 FLASH Reading, writing, checksum correction

SH7058 EEPROM Reading, writing

SH7059 FLASH Reading, writing, checksum correction

SH7059 EEPROM Reading, writing

Toyota/Lexus/Scion/Hino Gen 2

76F0196/198/199/219 P5-CAN-bus

76F0199 GearBox P5-CAN-bus

Reading, writing, checksum correction.

Toyota/Lexus Gen 3

R7F701202/R7F701216 P5-UDS

LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)

LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)

LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)

LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)

Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)

Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)

Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]

Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]

Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]

Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]

Reading, writing, checksum correction

DELPHI

Yuchai DCM3.2/DCM6.2AP/DCM6.24

Yuchai DCM7.1AP/ DCM7.24

Dongfeng M9T DCM7.1AP

Great Wall/Haval DCM6.2AP

HYCET Great Wall/ZhongXin/Changan Kaicene DCM7.1AP

Great Wall/Haval DCM3.7AP

Kia/Hyundai DCM3.7AP(SH725xx)

DOOSAN/Bobcat/Kioti/McCormick DCM3.7AP

SsangYong 2.0L XDI DCM3.7AP

DOOSAN/Bobcat/Kioti/McCormick (DCM3.7AP)

GM/Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)

JAC DCM6.2AP

Qingling/Isuzu DCM6.2AP

Qingling/Isuzu DCM7.1AP

Yunnei DCM6.24

Yunnei DCM7.24

Changan DCM7.1AP

OBD Reading, writing, checksum correction.

DCM7.1AP/ DCM7.24 BENCH Reading, writing, checksum

DCM 6.2AP open model SPC56X

Trucks Delphi ETC3

Reading and writing via OBD2 connector via CAN-bus of Delphi ETC3 ECUs used in

DAF, Kenworth, Peterbilt, Hyundai trucks.

DAF/Industrial Delphi ETC3

Delphi ETC3 REV A/B/C ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.

Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.

REV 0 and REV H ECUs are not supported.

Hyundai Delphi ETC3

Delphi ETC3 ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.

Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.

Trucks Delphi DMCI CAN

Module for reading and writing by CAN-bus Delphi DMCI ECUs used in DAF and Hyundai trucks.

ECU is based on MCU Motorola MPC561 with internal flash memory 2.0Mb.

Allows to read and write calibration area through CAN-bus with checksumm correction on writing.

DAF/Kenwroth Delphi DMCI

Hyundai Delphi DMCI

IVECO Light truck

IVECO EDC17C69 Bench

IVECO EDC17C49 Bench

IVECO MD1CS069[Support Bench lock Ecu]

IVECO MD1CS089 Bench

IVECO DCU17PC42/PC43 Bench

Isuzu/Transtron

ISUZU 4HK1/6HK1/4JJ1:SH7058

ISUZU 6HK1XDIAG/4JJ1XDIAG M4S/L4S:SH72533

ISUZU 6HK1/6WG1 M5.3/M5.2:SH72544/SH72546

ISUZU-4HK1/6HK1/4JJ1 L5.2/L5.3/L5.4:SH72544/SH72546

Kia/Hyundai

Modern/Kia heavy-duty truck engine Delphi-ECU: DMCl (chip: MPC561)

D6CF Delphi ETC3 Series MPC5566-OBD

Kia/Hyundai Kefico/Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD

Kia/Hyundai Euro 6 (Denso SH72543)-Bench

Kia/Hyundai DCM3.7AP

Reading, writing, checksum correction.

BOSCH EDC

DCU17CV51 TC1724 Bench (SAIC/JBC)

DCU17HD01/DCU2.2 TC1766 (Hino, Cummins, Hyundai, CAT, CASE, Isuzu)

VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)

DCU17PC42/PC43 Bench (IVECO, FOTON, HYUNDAI)

EDC17CV44/54 OBD/Bench/Open

EDC17C81 OBD/Bench/Open[Support Bench lock Ecu]

EDC17C53 OBD/Bench/Open[Support Bench lock Ecu]

EDC17C55/C63/C04 OBD/Bench/Open[Support Bench lock Ecu]

EDC17CV41 OBD/Bench/Open(WeiChai, Iveco,Doosan,CASE,New Holland, CLAAS)

EDC17CV42 Bench MAN

EDC7UC31 MPC561/562 OBD/Bench

EDC7C1(lveco, Doosan, etc,series chip:MPC555)

EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD

EDC16UC40 MPC561/562 OBD/Bench

EDC16C39 MPC561/562 OBD/Bench

EDC17CP52 TC1797 Bench(Ivevo,Fuso)

EDC17C69 TC1793 Bench IVECO

EDC17C49 TC1797 Bench IVECO

EGC4 TC1797 BGA Bench

EDC17C83 TC1793 Bench ISUZU

MEG17.9.1X, Chip:TC176211766/179211796 (Bench Mode)

MEG17.9.2X, Chip:TC17241172817671178211784/1797 (Bench Mode)

BOSCH MD1 Bootloader

MD1CE100 AURIX SAK-TC299TP

MD1CE108 ST-SPC5898

MD1CS089 SAK-TC299TP

MD1CS069 SAK-TC299TP

MD1CC878/868 ST-SPC58XX

Reading, writing, checksum corrections

CUMMINS

Cummins 2880

Cummins 2220

Cummins 2250

Cummins 2150

Cummins 2150E

Cummins 876

Cummins 2350

Cummins 2350A

Cummins 2620

Cummins 2670

Cummins 2380(Natural Gas)

Cummins X12N MD1

Cummins 850

Others

Continental FAW 52E/91E SPC563X OBD/Open/checksum

Continental Weichai WISE15/15C SPC564X OBD/Open/checksum

Continental FAW 32F/36F OBD /checksum

Econtrols LNG/CNG 3G/4G OBD Model

Woodward LNG/CNG OBD Model/Recover

ZF Transmission OBD writing/checksum

ZF Retarder OBD writing

WABCO ECAS Reading, writing

WABCO ABS/EBS Reading, writing

Knorr ECAS Reading, writing

Knorr ABS/EBS Reading, writing

VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton,)

Covering most ECU Flash

(FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/SANY/CHENGLONG)

EngineDance X5 Exclusive technology Remote Unlock Encrypted MD1 ECU

(Notice: Paid feature: $100 for one remote unlock,one time.)

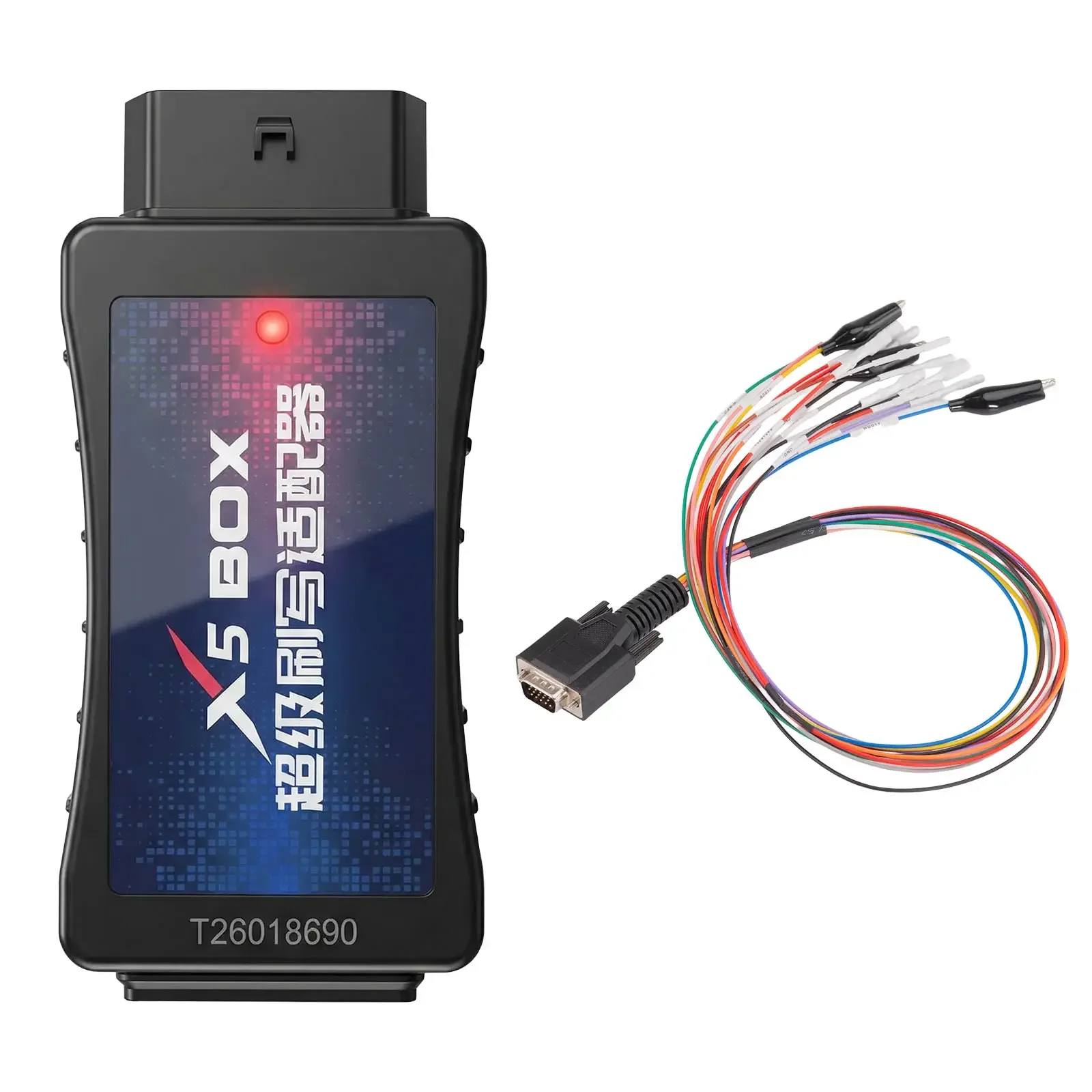

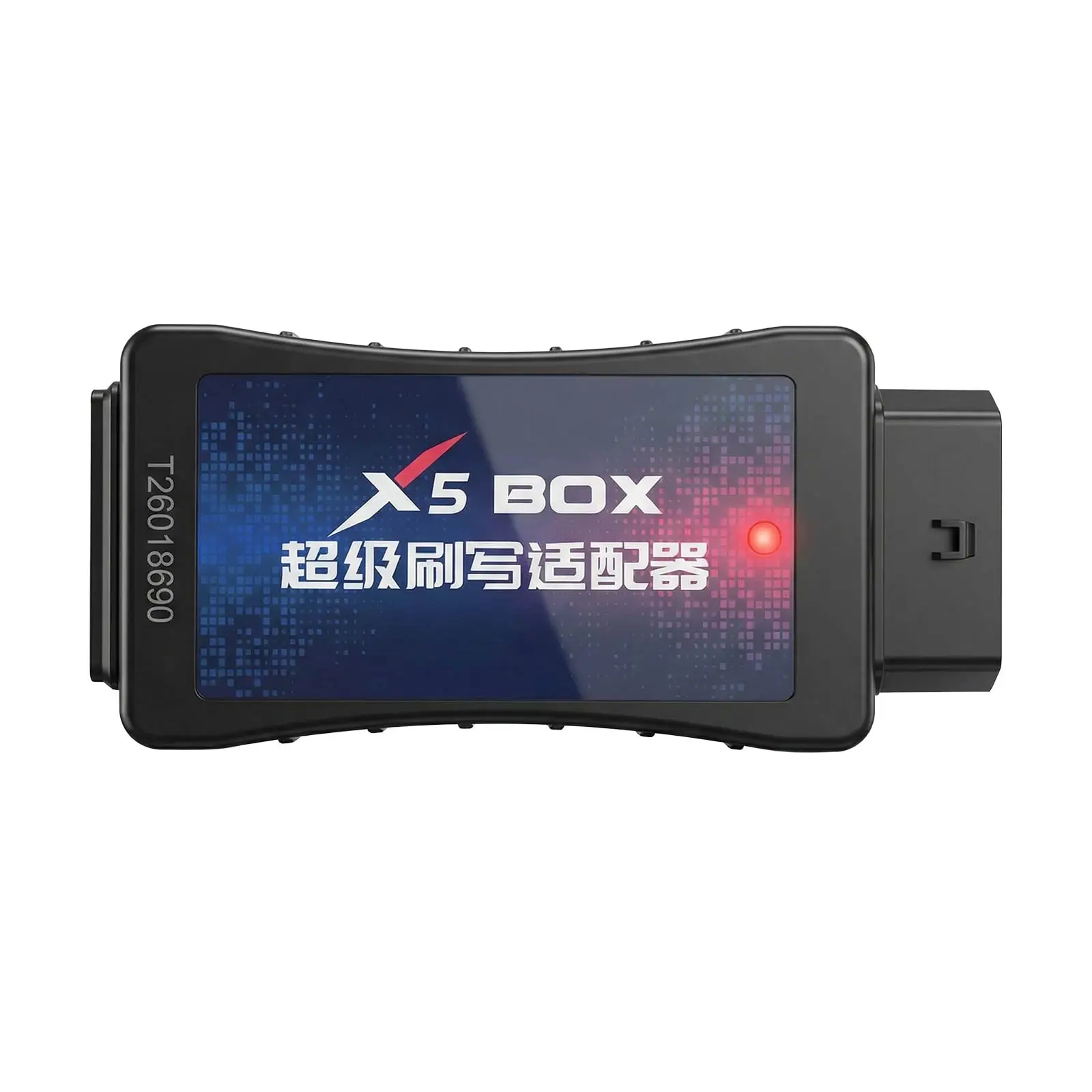

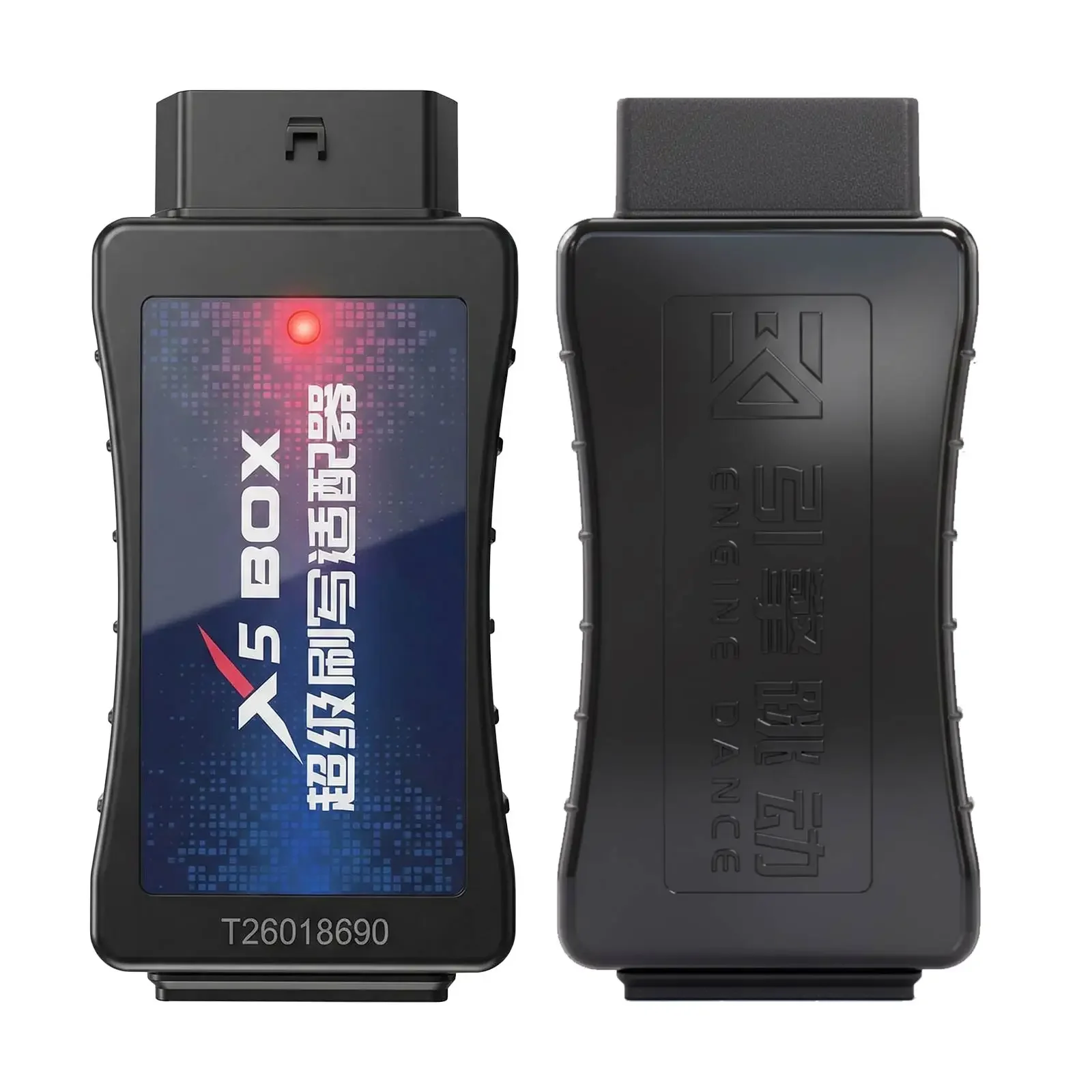

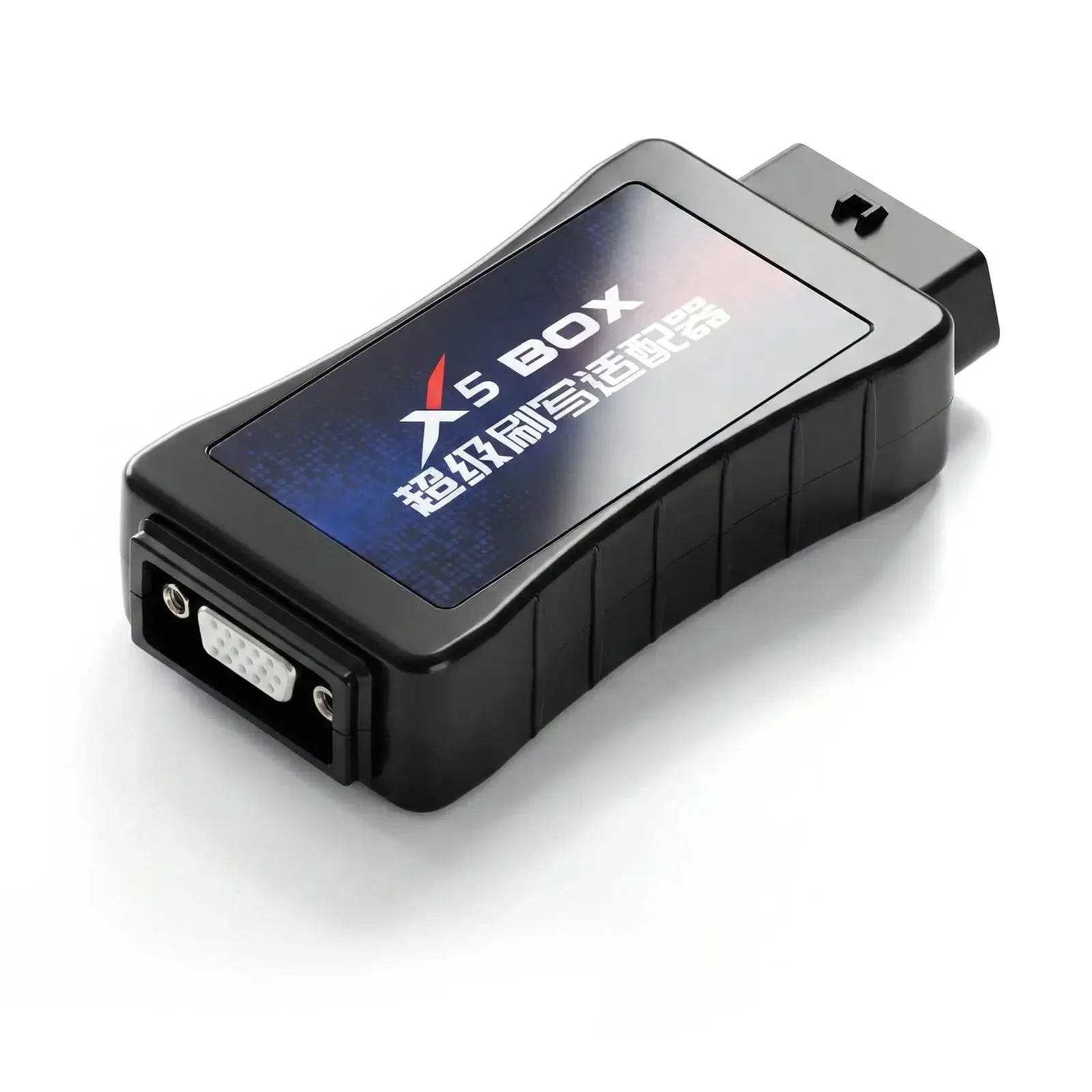

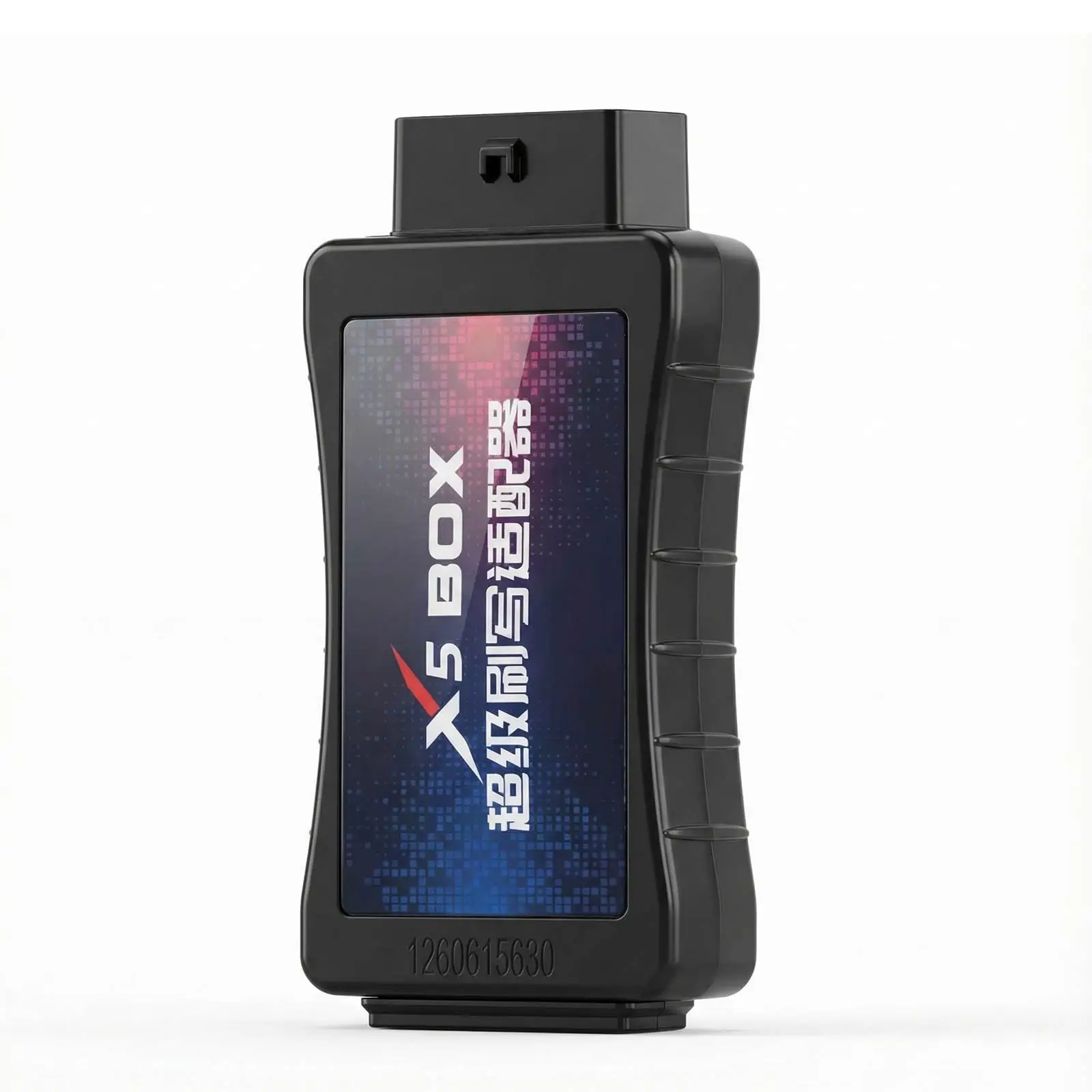

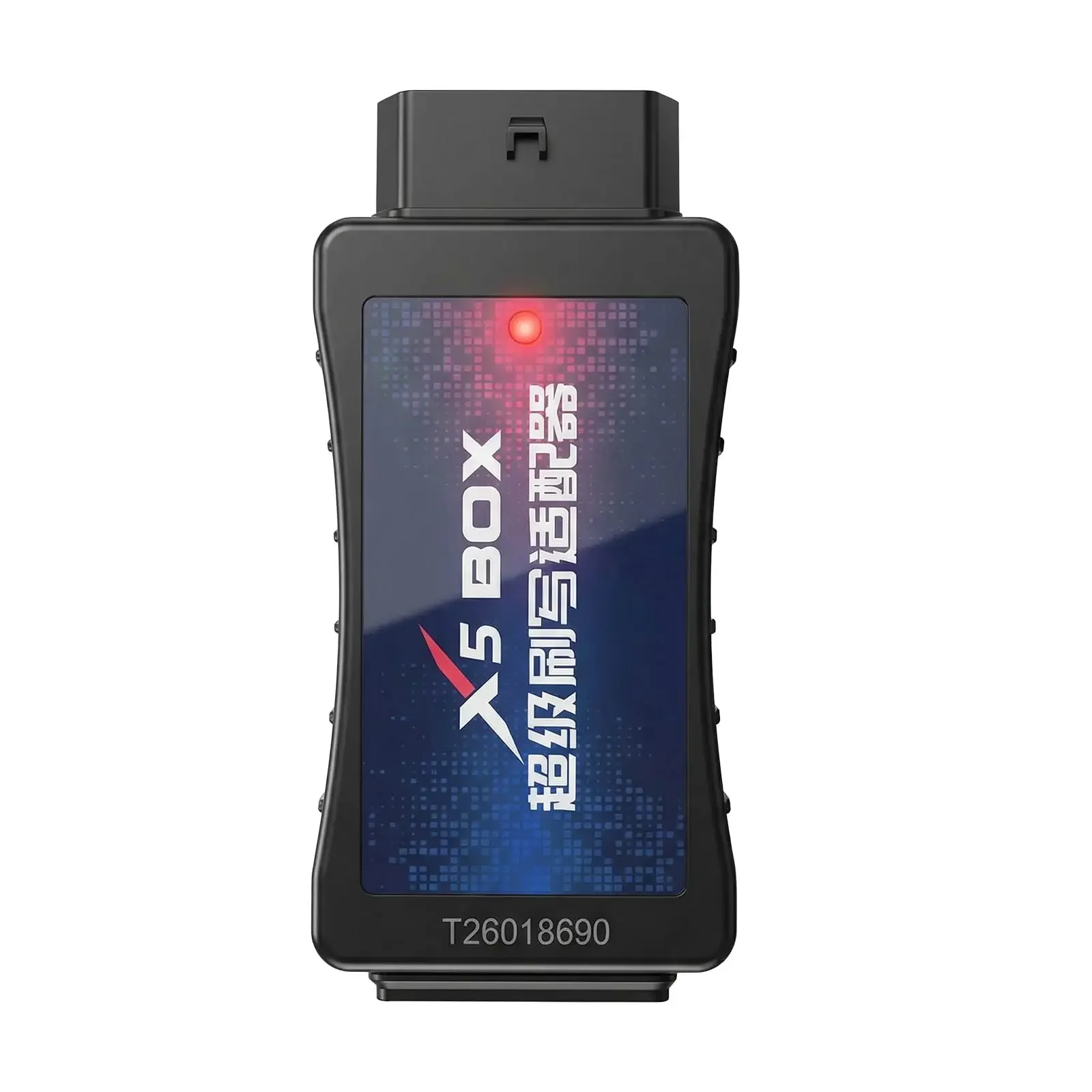

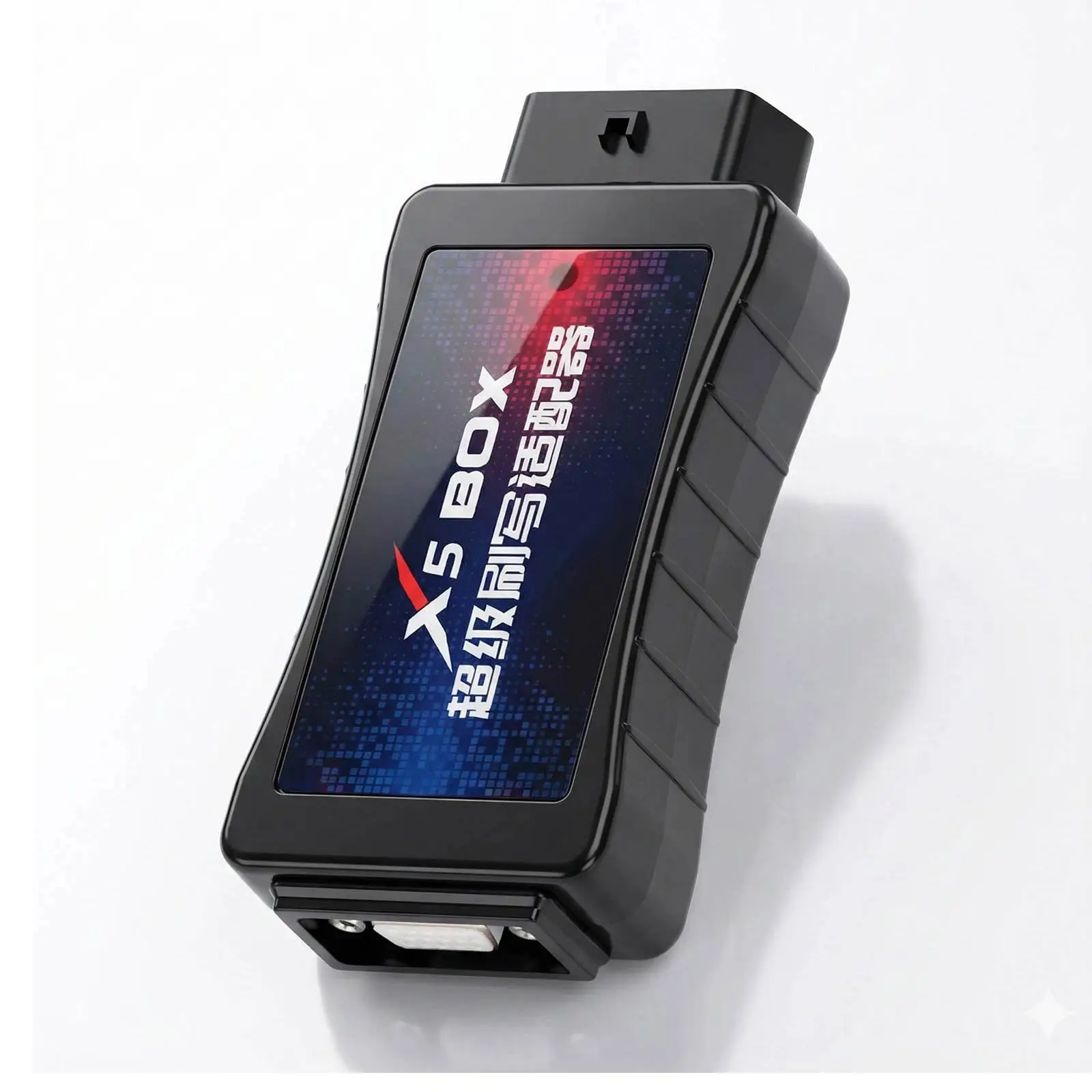

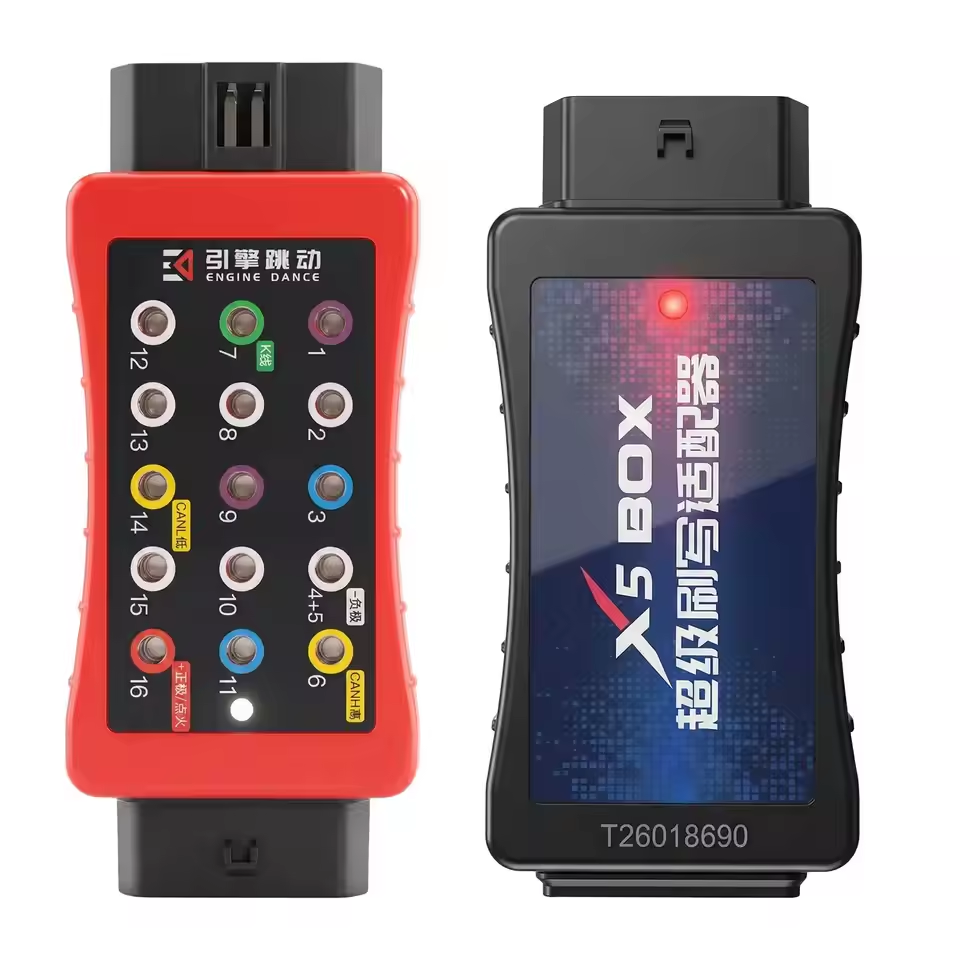

EngineDance X5 Box Adapter for Reading, Writing, and Programming Overseas International Brand Vehicles
