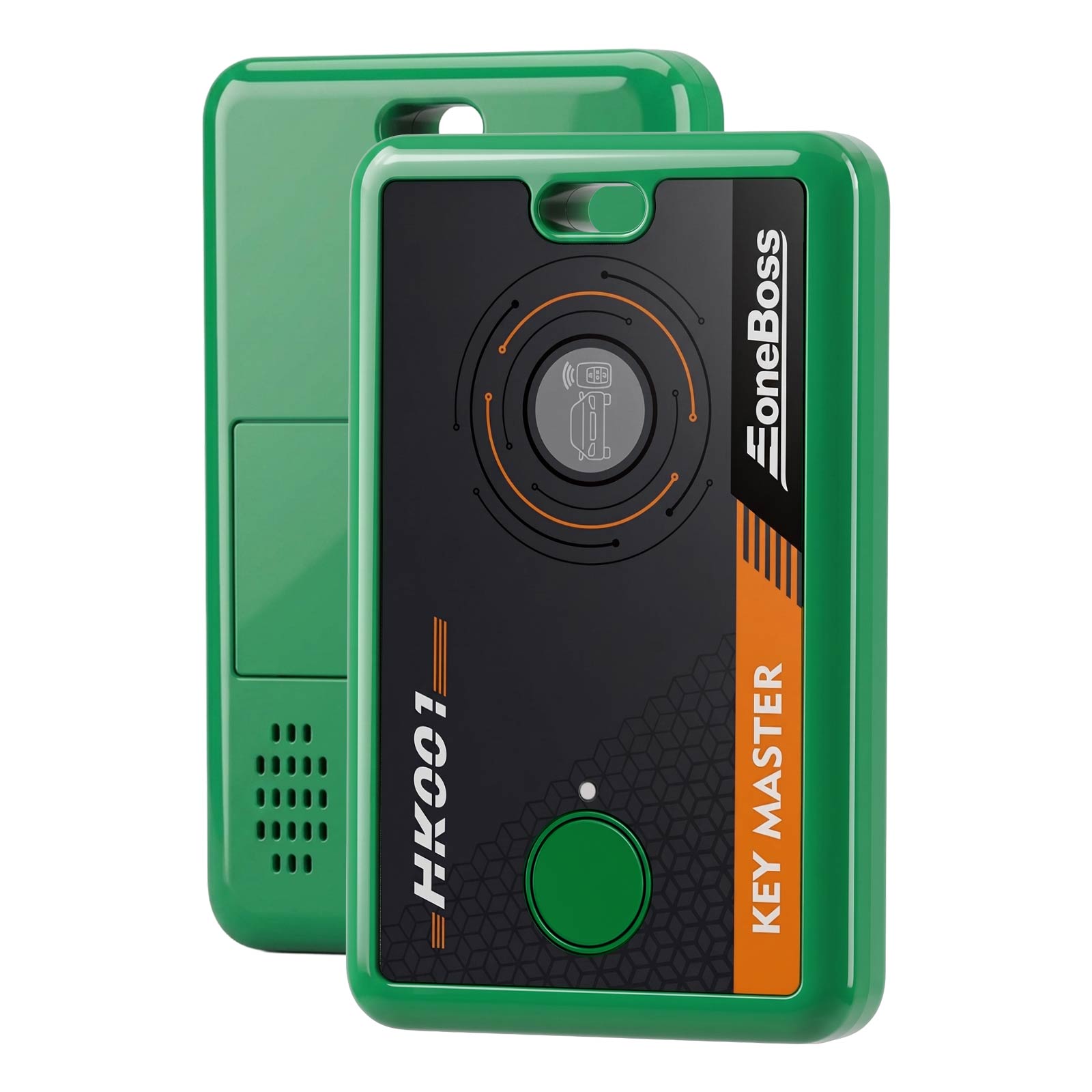

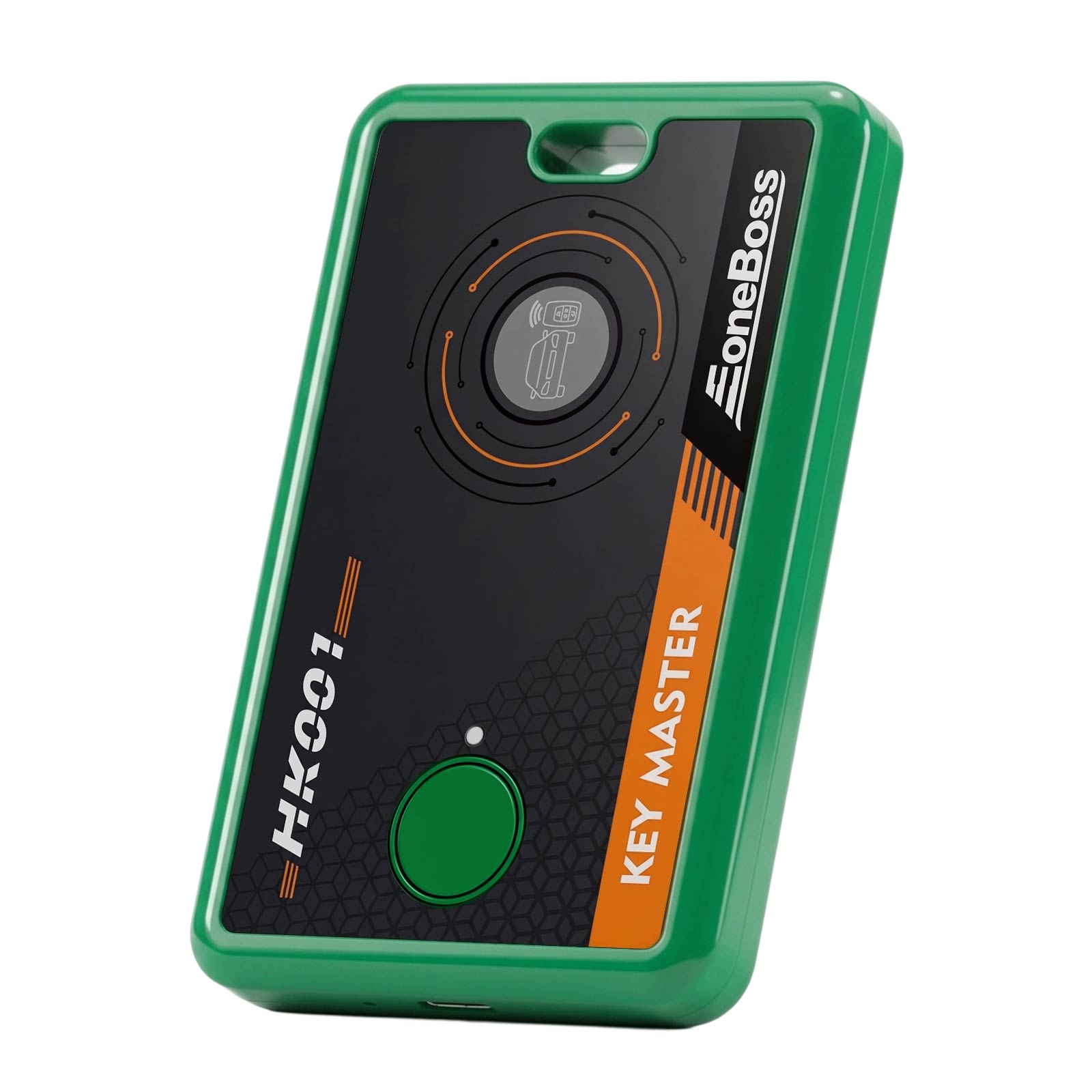

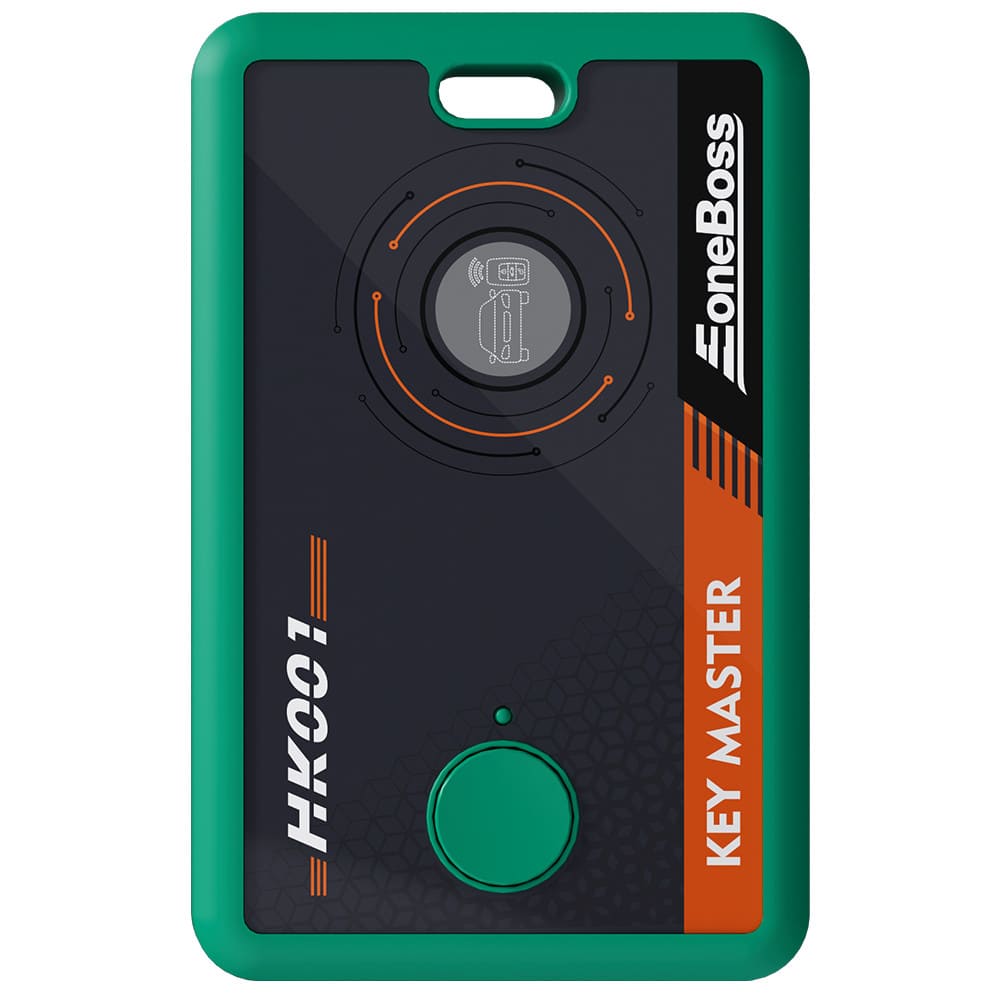

EoneBoss HK001 Key Master for Hyundai & Kia Smart Key Initialization and Cloning

Standard refurbishing for Hyundai/Kia locked keys typically requires a full data reset, which overwrites original data and compromises stability.

EoneBoss HK001 provides a breakthrough solution:

Data Protection: Modifies only key parameters while preserving the original core data.
High Compatibility: Supports all OEM and Aftermarket Hyundai/Kia smart keys (29A* format starting with 95440).
User-Friendly: Standardized workflow via mobile app, requiring no complex training.

Core Functions

Generate Same Part Number Smart Key:
By identifying the original vehicle's smart key part number (95440-),and then using an original or third-party key to write it in, the key can be initialized as a brand new smart key based on the part number, which allows for vehicle access and matching.

Smart Key Copy :
By identifying a smart key with the 95440 part number,and then using an original or third- party key to write it in. No programming matching is required; the key can be used directly.

Used Smart Key Unlock:
Unlock the identified 95440 smart key to a factory-new (virgin) state, making it ready for programming and matching.

Customized Service:
Customers with specific needs (such as research and development, production, etc.) are welcome to contact sales@eoneboss.com.

Note: NCF29AG is not supported yet. Some third-party keys may have incorrect button functions.

Operation Modes

Connection Board Mode: Supports soldering operations for wider compatibility.

Adapter Mode: Solder-free, plug-and-play operation for maximum efficiency.

Operating Instructions

App Download:
Scan the QR code on the right to download and install the EoneBoss APP.

Connecting HK001:

· Press and hold the Power Button for 2 seconds to turn on the device (one beep).
· Enable your phone's Bluetooth.
· Navigate to the corresponding function interface in the App and follow the instructions.

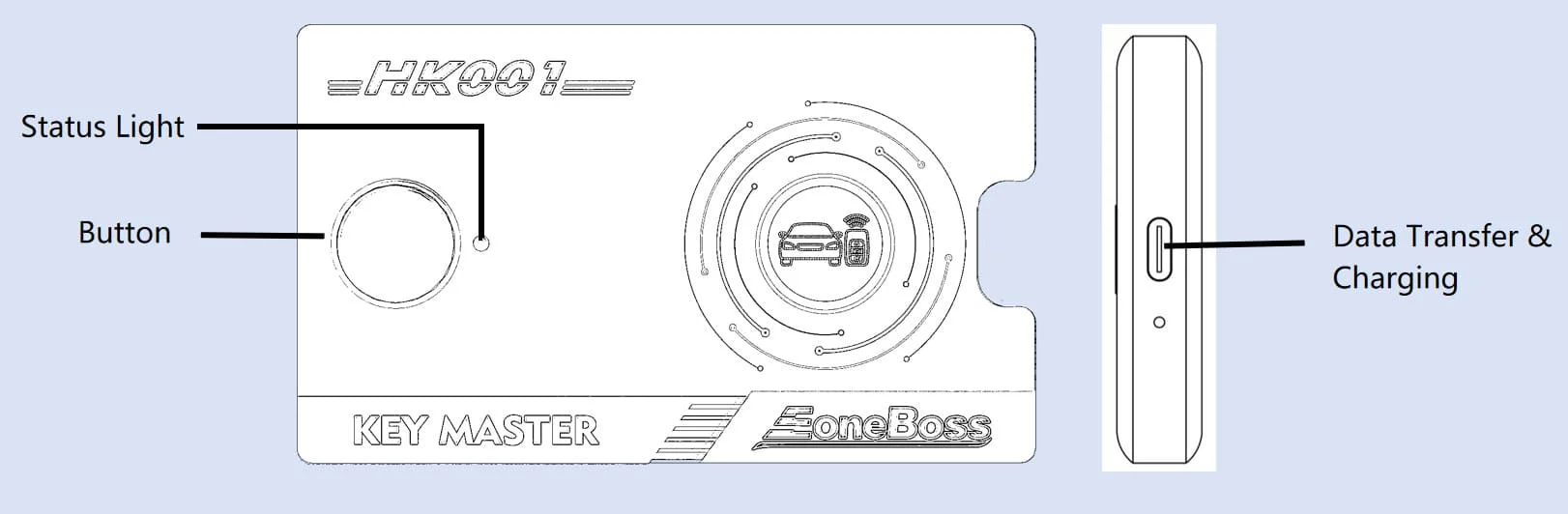

Hardware Description

Status Light Indicators:

Green: Device function indicator light.
Red: Device is currently charging.
Blue: Device Bluetooth indicator light.

Button Functions:

· Power On/Off: Press and hold for 2s (one beep).
· Forced Power Off: Press and hold for 5s (No beep).

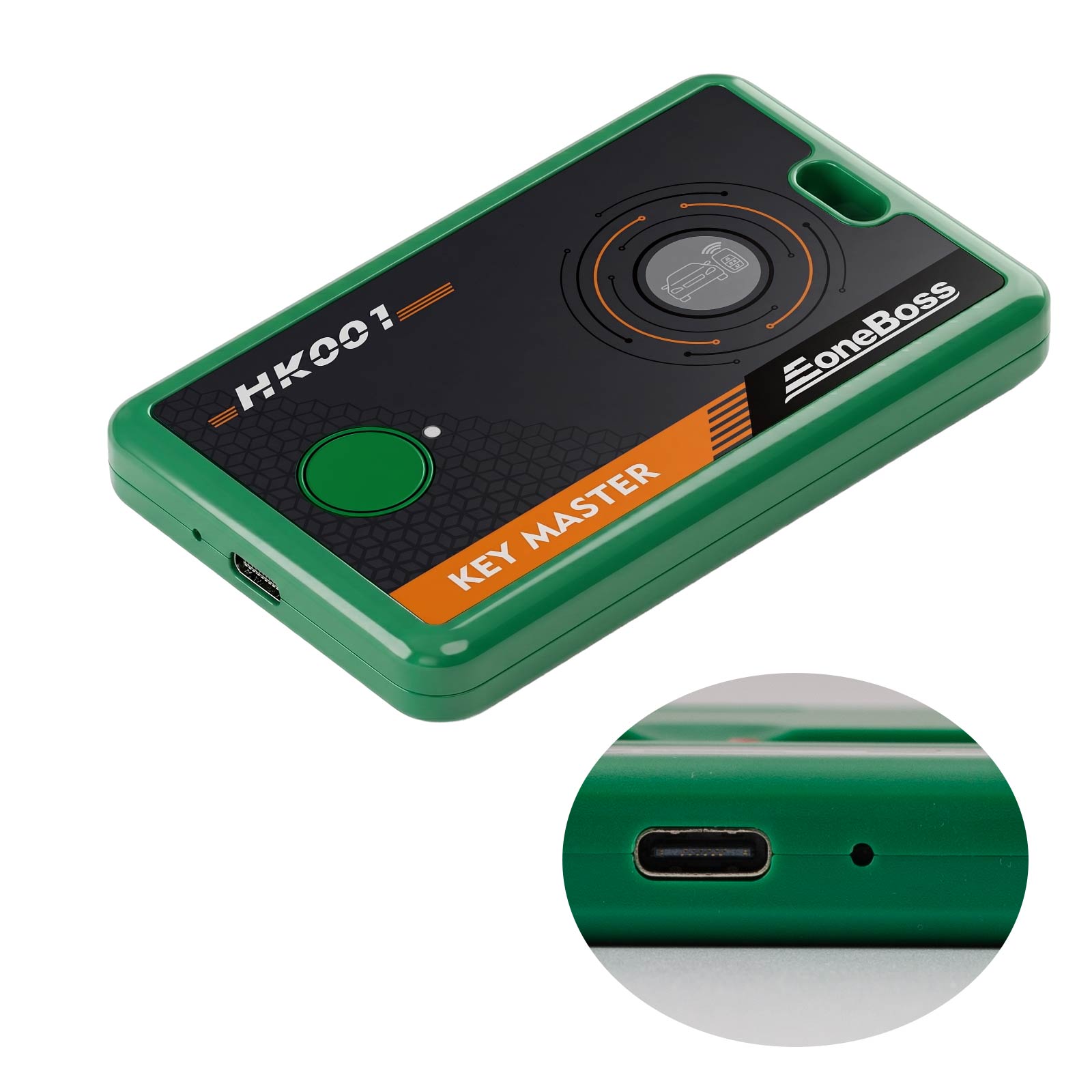

Type-C Charging Interface:

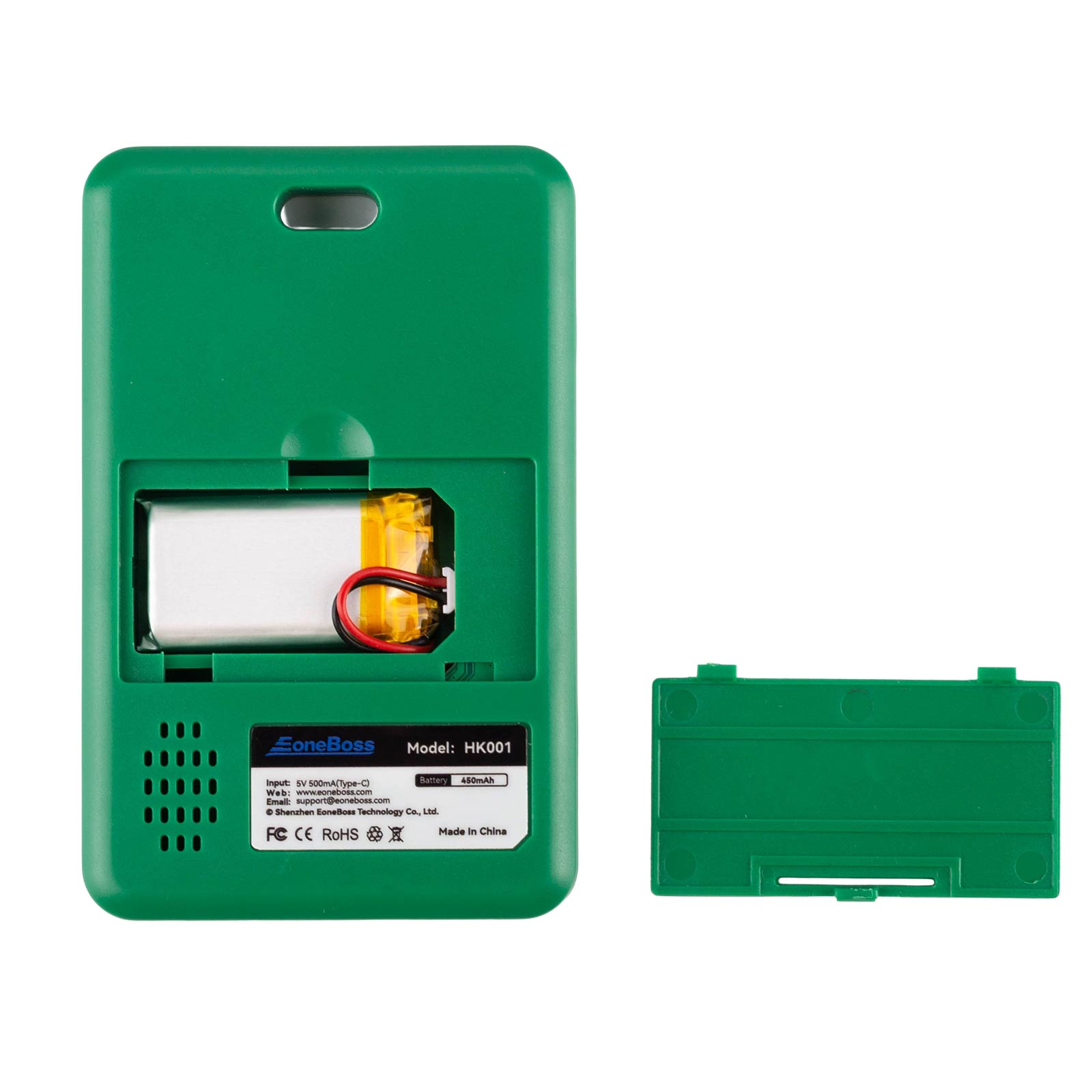

Built-in 3.7V 450mAh battery; supports simultaneous charging and use (with Connection Board). External power is prioritized.

Power Options:
Compatible with phone chargers, computers, power banks, and standard adapters.

Low Battery Warning:
Beeps every 2 seconds when battery is low until automatic power off. Please recharge in time.

Optional Accessories

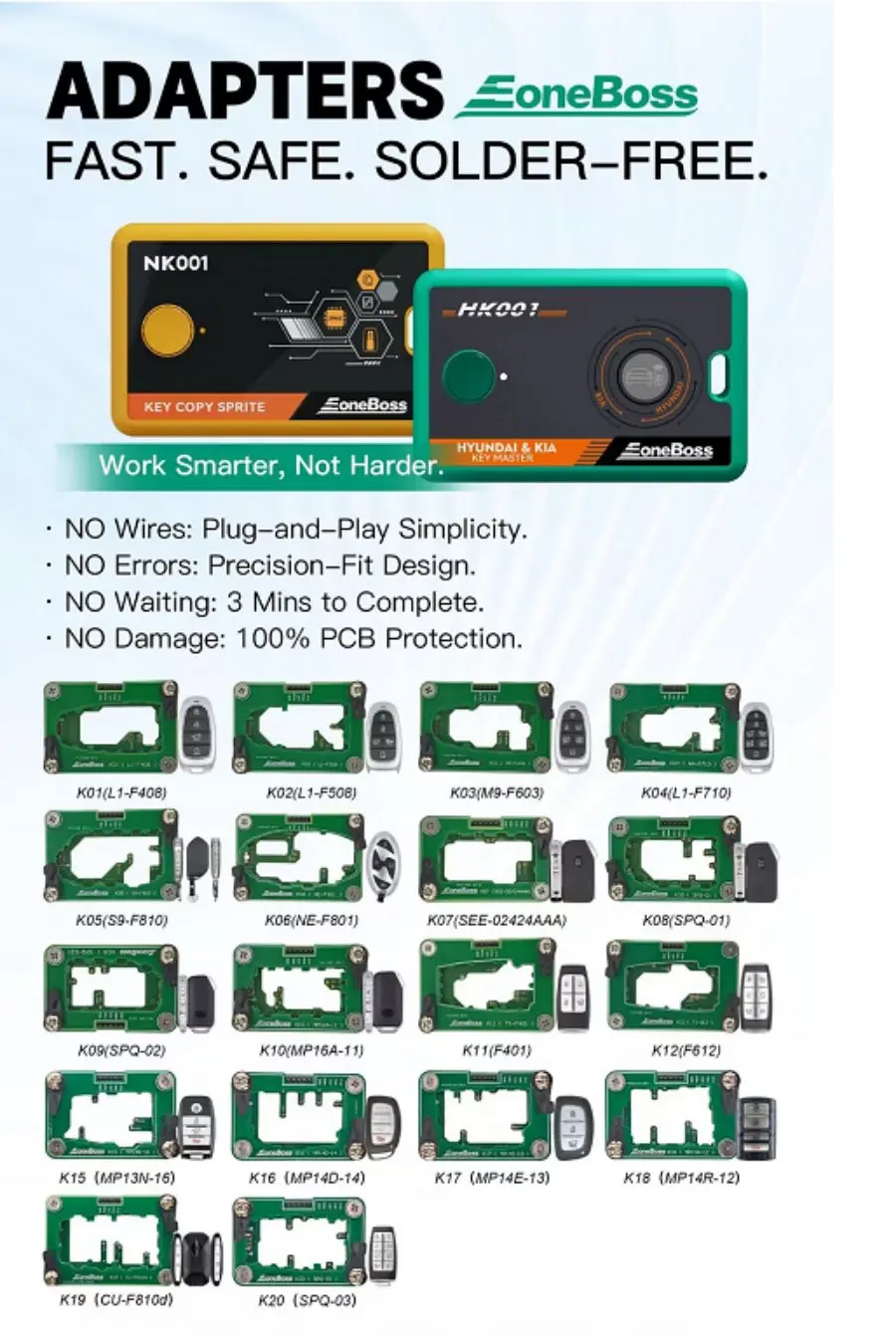

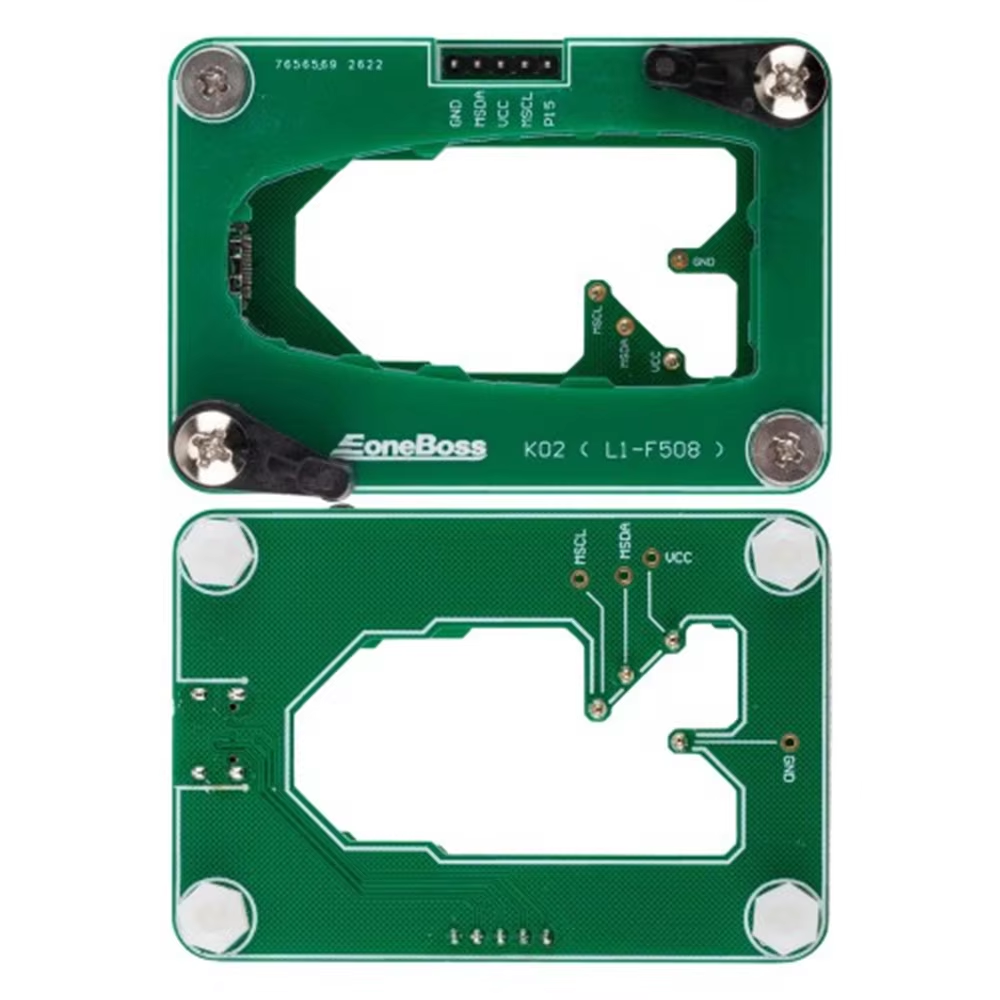

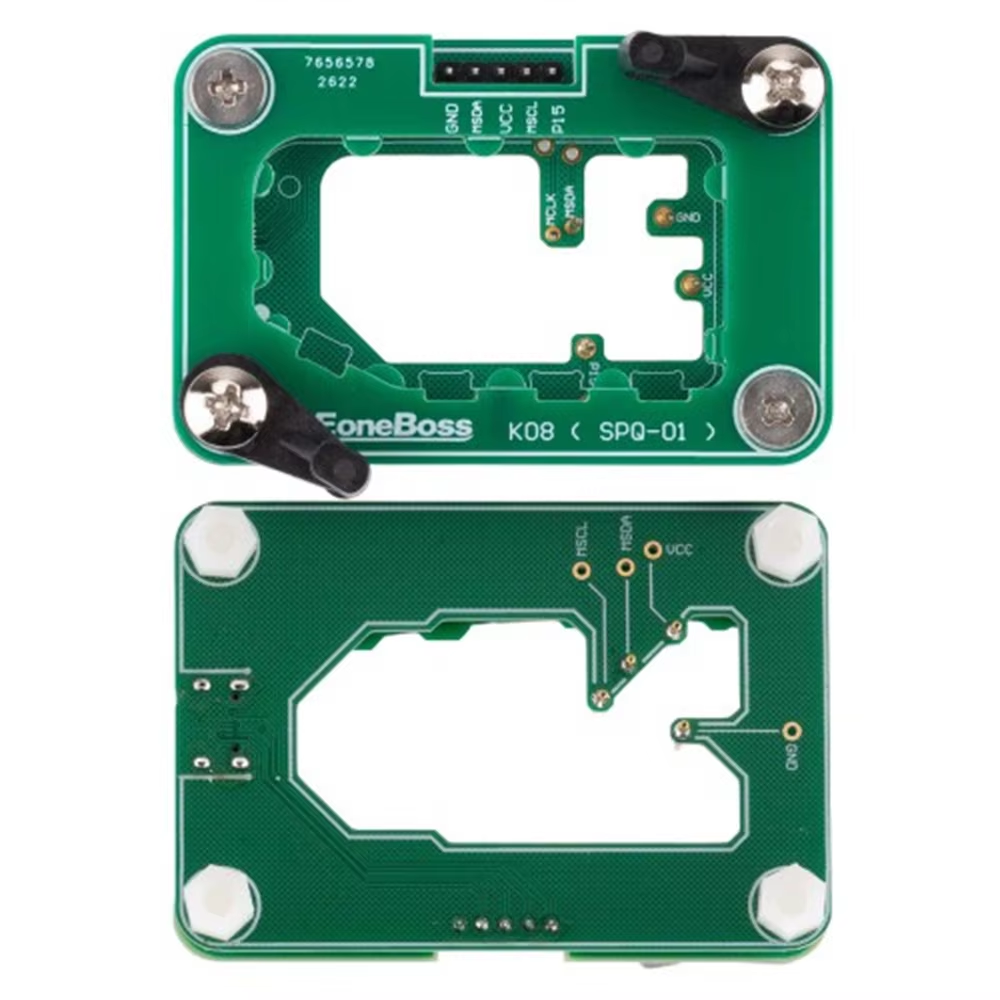

Optional Adapters

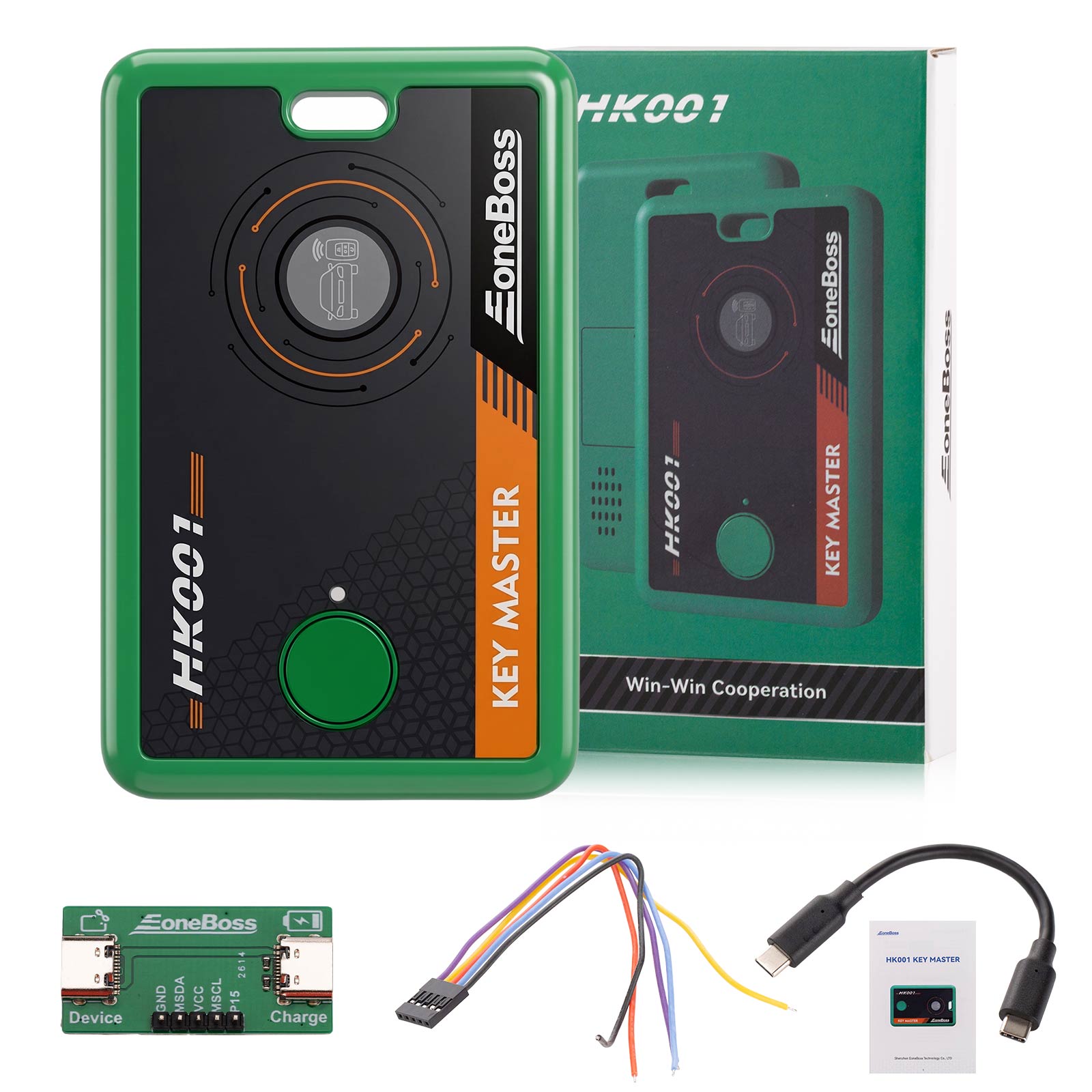

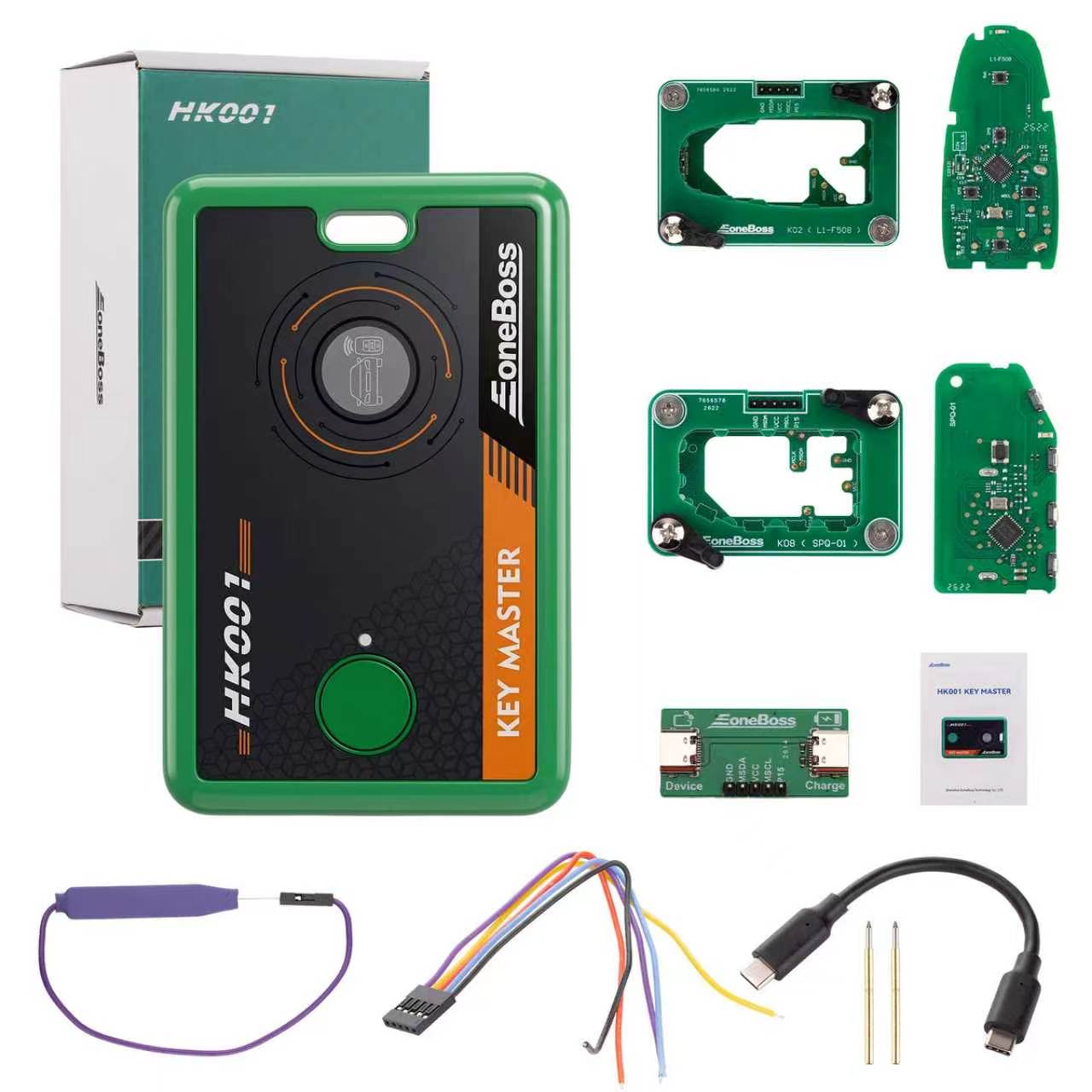

Package Includes:

1pc x main unit
1pc x ribbon cable
1pc x adapter board
1pc x type-C USB cable
